Measurement Precision & Tolerances

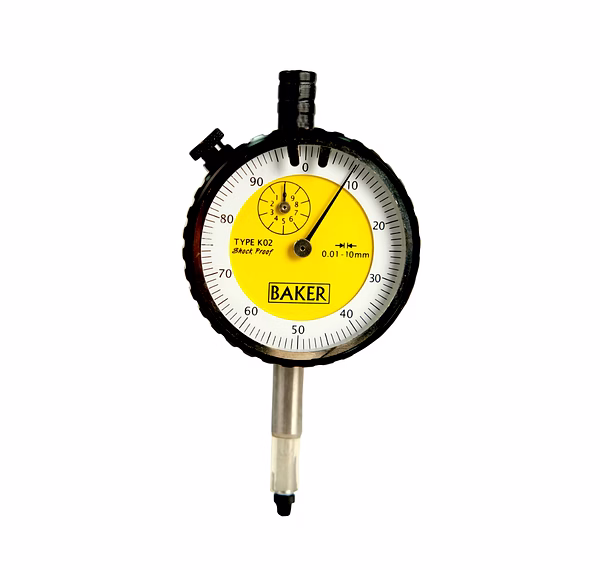

Dial gauges convert small linear displacements into dial readings via internal geared mechanisms. Standard ranges are typically ±1 mm with resolutions down to 0.01 mm; select the travel range that suits your application. Rugged housings and shock-resistant internals improve reliability on shop floors.

Calibration & Compliance

Calibration uses reference surfaces and gauge blocks. Provide calibration documentation for supplier acceptance and audit trails. Periodic checks reduce drift in long-term use.

Processing Insight & Technical Notes

Mount indicators on stable magnetic or post stands and avoid lateral loads on the spindle. For axial runout, use a steady rotational reference and capture the maximum deviation. Replace worn tips to preserve contact fidelity.

Applications & Use Cases

• Spindle Runout: Measure axial deviation on rotating spindles during maintenance.
• Fixture Setup: Align workholding surfaces and verify repeatable clamping positions.
• Flatness Testing: Perform quick checks on machined faces prior to assembly.
