Measurement Precision & Tolerances

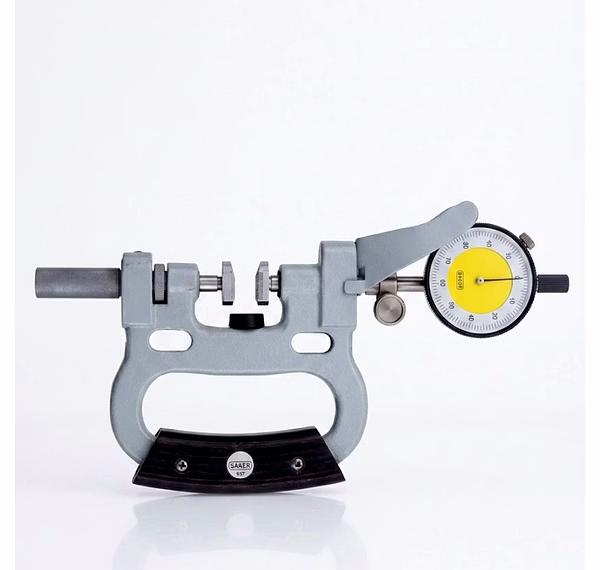

Dial Snap Gauges provide a rigid C-frame with fixed anvils and a dial indicator that shows deviation from the set nominal. They are optimized for speed and repeatability in high-volume environments. Setting is performed using master gauges or a calibrated ring to establish the target dimension.

Calibration & Compliance

Calibration must be performed using master reference parts and recorded in a calibration log. Batch traceability and periodic validation in the CMM lab ensure ongoing acceptance for supplier or in-house quality programs.

Processing Insight & Technical Notes

Use consistent seating and loading technique to reduce operator variation. Choose contact faces matched to the part material to avoid marring or deformation during checks.

Applications & Use Cases

• High-Volume Inspection: Rapid go/no-go checks in assembly lines to avoid downstream defects.
• Incoming QC: Batch screening before acceptance into inventory.
• Short-Run Verification: Quick dimensional checks during small batch production.
