Measurement Precision & Tolerances

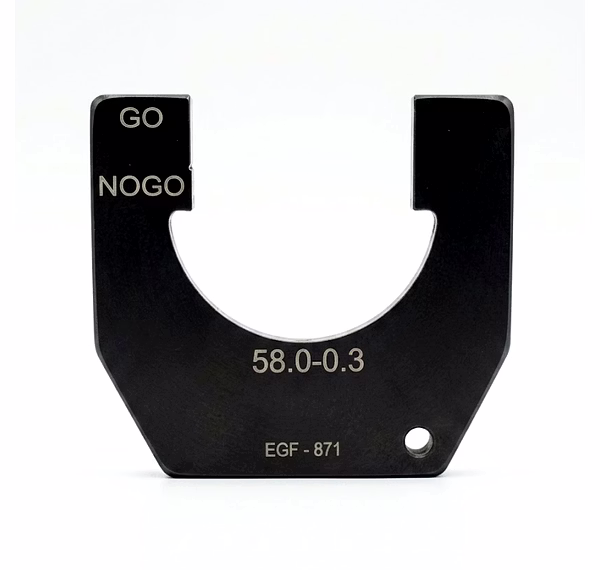

Fixed Snap Gauges are rigid C-frame fixtures with a single set of anvils and a dial or electronic indicator. They are designed for minimal operator variation and maximum throughput. The dial indicates deviation from the preset nominal and provides immediate pass/fail decisions.

Calibration & Compliance

Calibration uses master rings or calibrated parts. Maintain calibration records in the CMM lab and implement periodic checks to confirm setting stability, especially in high-cycle environments.

Processing Insight & Technical Notes

Mount the gauge in a stable fixture to avoid movement. Use protective covers against chips and coolant. For abrasive components, choose hardened contact faces to reduce wear and maintain the nominal setting.

Applications & Use Cases

• High-Volume Assembly: Fast dimension checks to prevent downstream defects.
• Incoming QA: Single-SKU screening on receipt to enforce supplier conformance.
• Production Gating: Final check before shipment or assembly integration.
