ITC-HSN: 84879000
Min Order Qty 4 Unit
Accept Small Orders
Fulfilment Capacity (Per Month): 100 Unit/month
Product not available

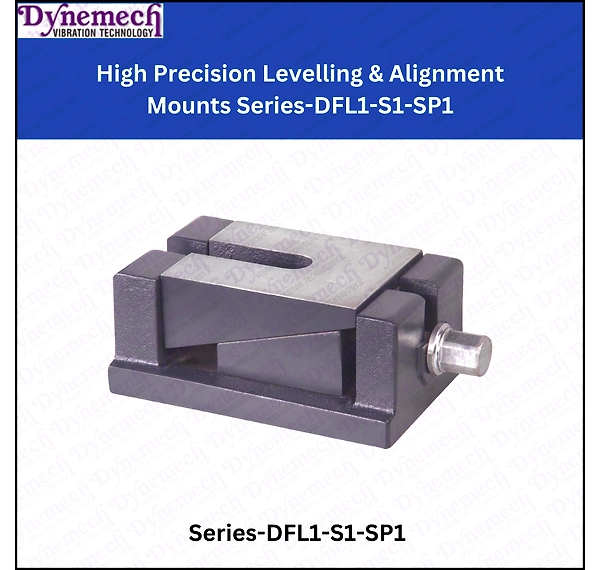

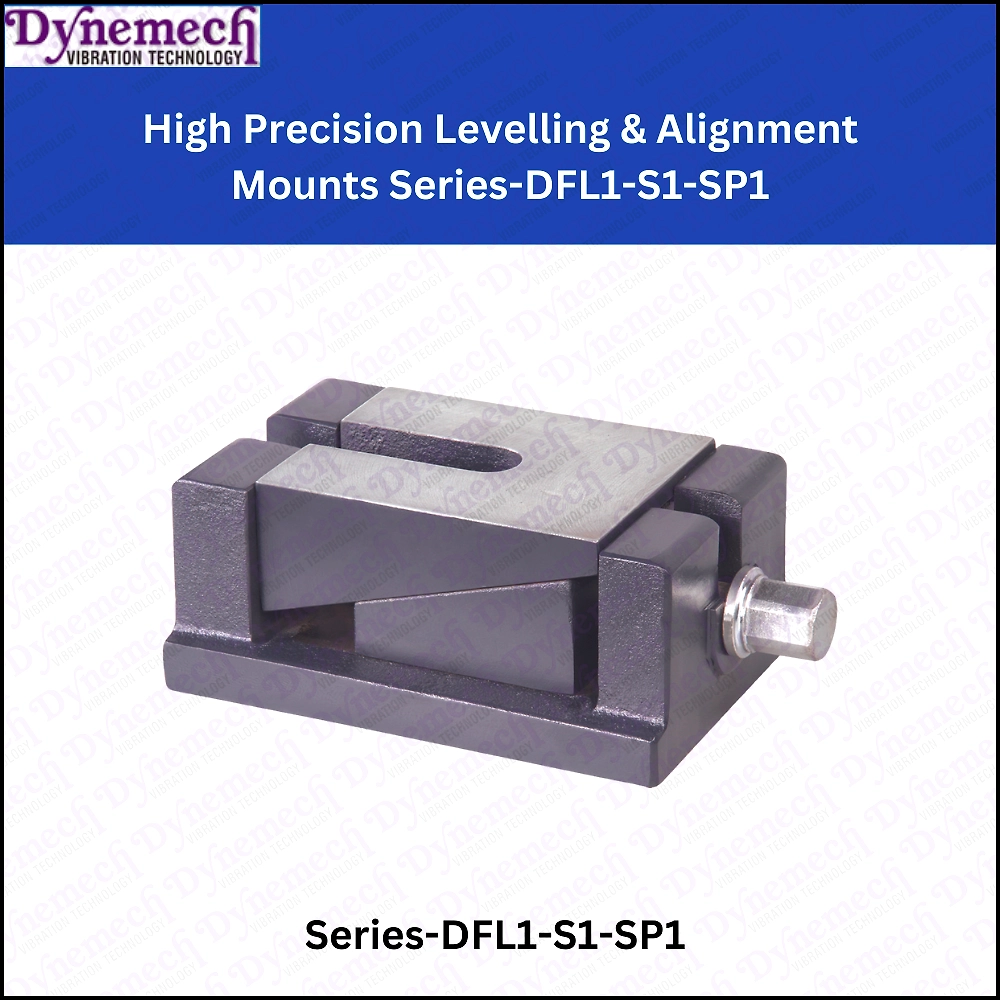

The DFL series mounts are made from a high grade casting body. Large supporting surface and high levelling adjustment is available. The slot in the middle allows placement of these mounts after the grounting bolts are fixed in the foundation. Suitable for VTL, long bedded CNC machines, large boring machines, plano miller etc.
Size :207x142x86mm
Load Capacity (Kg.):8000 Kg/pc
Max.Torque Value (mm):554
Adjustment Range(mm):13
Working Temp Range °C:-From -20 to 70
Material:Cust Iron Box Dimention: 13"X8"X7" Weight Of 04 Nos: 55 Kgs Number Of Box:02
Colour:Green, Grey,
https://vibrationmountsindia.com/
Contact us for
The DFL series mounts are made from a high grade casting body. Large supporting surface and high levelling adjustment is available. The slot in the middle allows placement of these mounts after the grounting bolts are fixed in the foundation. Suitable for VTL, long bedded CNC machines, large boring machines, plano miller etc.
Size :207x142x86mm
Load Capacity (Kg.):8000 Kg/pc
Max.Torque Value (mm):554
Adjustment Range(mm):13
Working Temp Range °C:-From -20 to 70
Material:Cust Iron Box Dimention: 13"X8"X7" Weight Of 04 Nos: 55 Kgs Number Of Box:02
Colour:Green, Grey,
