ITC-HSN: 8487900
Min Order Qty 4 NOS (Numbers)
Accept Small Orders
Fulfilment Capacity (Per Month): 100 NOS (Numbers)/month
Product not available

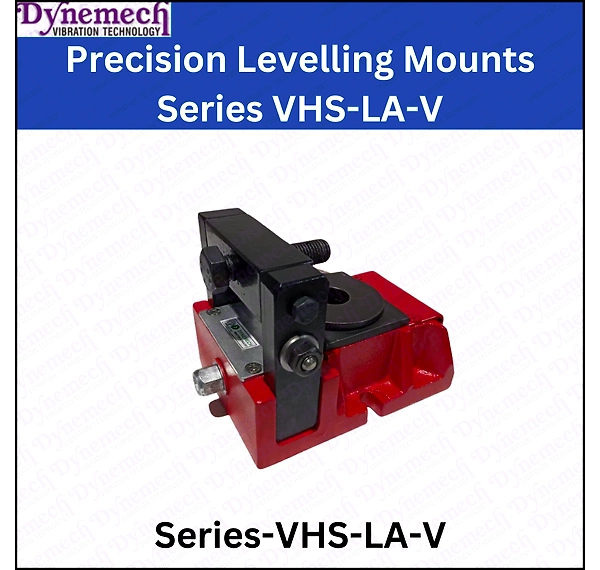

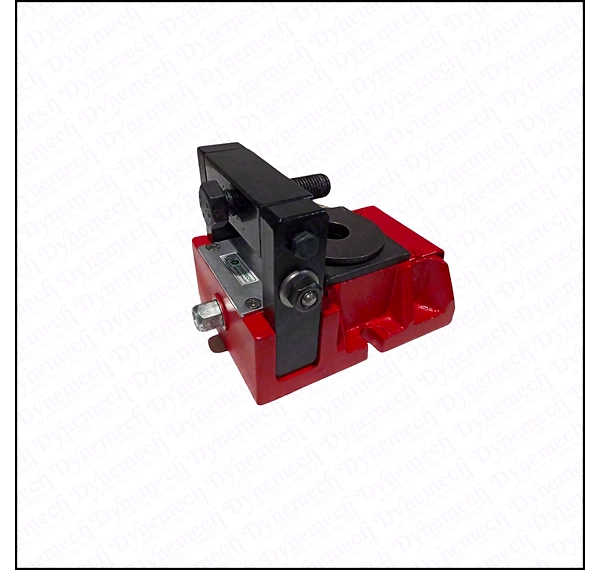

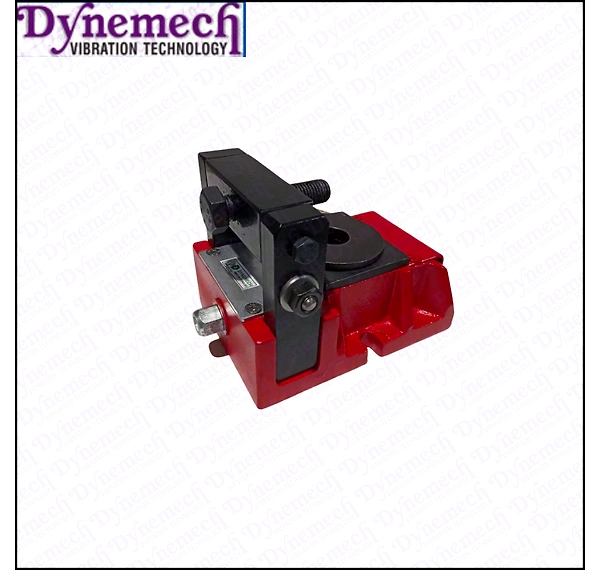

Dynemech Precision Levelling Mounts Series VHS-LA-V series mounts provides precision levelling to the machine. The levelling is possible even after grouting the outer body of this mount. A slight horizontal alignment of long bedded machines is possible using this mount.
Length:170(mm) To 350(mm) Width:108(mm) To 230(mm) Height:60(mm) To 138(mm)
Recommended Load Capacity: 1000 Kg/pc To 12000 Kg/pc Max. Load(Kg/pc):9000 Kg/pc To 70000 Kg/pc
L1(mm):91 To 180
D(mm):75 To145 (mm)
h(mm):5 To 104 Nos Weight ( Kg.): 216 kg
Material: Cast Iron & Sheet Metal
Colour: Red/Dark Grey
4 Nos Box Size: 13"x8"x7
4 Nos of Boxes: 4
Contact us for
Dynemech Precision Levelling Mounts Series VHS-LA-V series mounts provides precision levelling to the machine. The levelling is possible even after grouting the outer body of this mount. A slight horizontal alignment of long bedded machines is possible using this mount.
Length:170(mm) To 350(mm) Width:108(mm) To 230(mm) Height:60(mm) To 138(mm)
Recommended Load Capacity: 1000 Kg/pc To 12000 Kg/pc Max. Load(Kg/pc):9000 Kg/pc To 70000 Kg/pc
L1(mm):91 To 180
D(mm):75 To145 (mm)
h(mm):5 To 10
f(mm): 17 To 37
G(M12 To M36
a(mm):12 To 35
SW1: 19 To 40
SW2:10 To 21
e1:12.7 To 28
e2:26 To 46
4 Nos Weight ( Kg.): 216 kg
Material: Cast Iron & Sheet Metal
Colour: Red/Dark Grey
4 Nos Box Size: 13"x8"x7
4 Nos of Boxes: 4
Delivery Time: 15 To 20 Days
Price-14800
