ITC-HSN: 8487900
Min Order Qty 5 NOS (Numbers)
Accept Small Orders
Fulfilment Capacity (Per Month): 100 NOS (Numbers)/month
Product not available

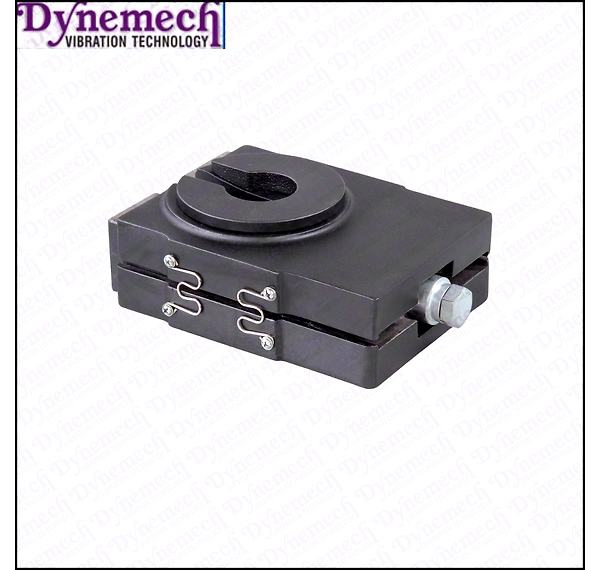

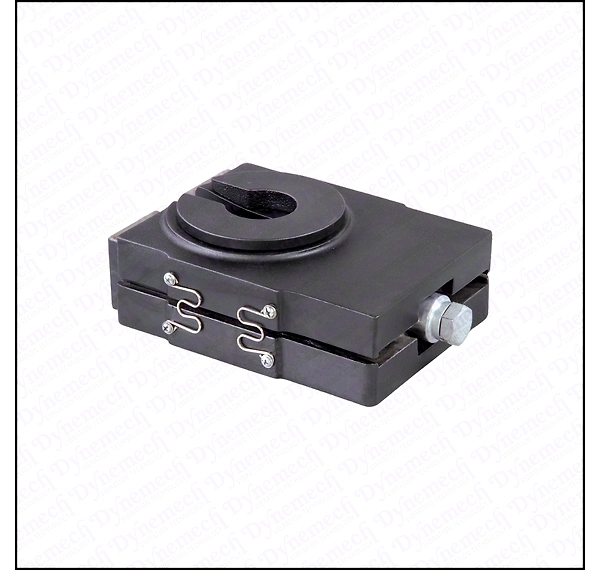

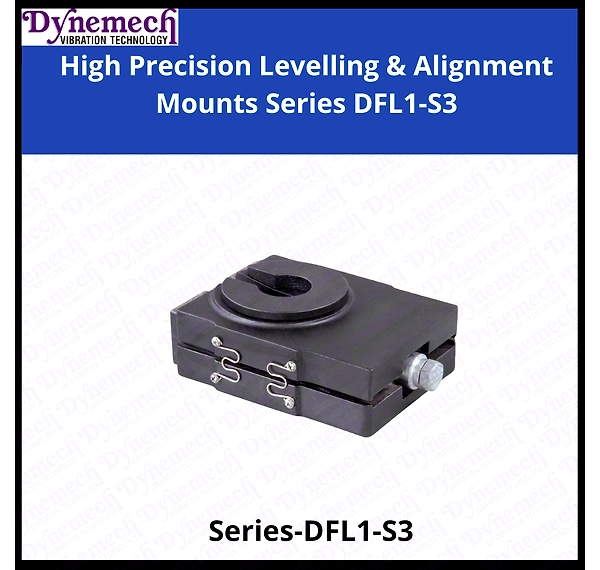

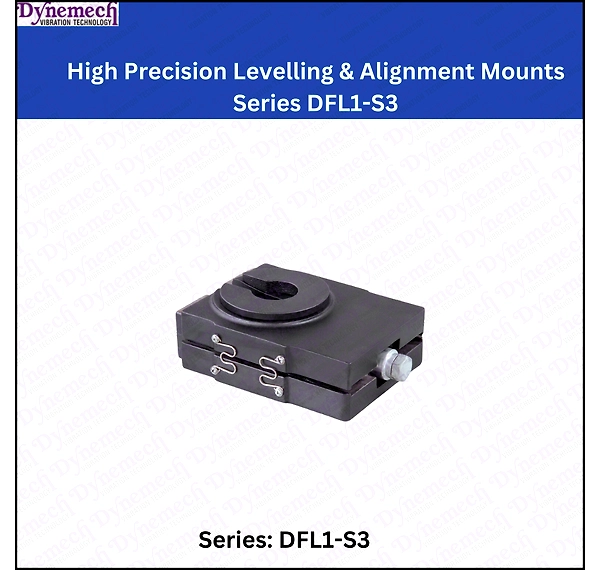

The DFL series mounts are made from a high grade casting body. Large supporting surface and high levelling adjustment is available. The slot in the middle allows placement of these mounts after the grouting bolts are fixed in the foundation. Suitable for VTL, long bedded CNC machines, large boring machines, plano miller etc.
Length:188(mm) Width:140(mm) Height:68.5(mm) Load Capacity: 12200 Kg
Max. Torque Value (N.m):603 Adjustment Range(mm):6
4 Nos Weight ( Kg.): 45 kg
Material: Cast Iron
Colour: Green/Dark Grey
4 Nos of Box Size: 13"x8"x7
4 Nos of Boxes: 2
Delivery Time: 10-12 Days
Contact us for
The DFL series mounts are made from a high grade casting body. Large supporting surface and high levelling adjustment is available. The slot in the middle allows placement of these mounts after the grouting bolts are fixed in the foundation. Suitable for VTL, long bedded CNC machines, large boring machines, plano miller etc.
Length:188(mm) Width:140(mm) Height:68.5(mm) Load Capacity: 12200 Kg
Max. Torque Value (N.m):603 Adjustment Range(mm):6
4 Nos Weight ( Kg.): 45 kg
Material: Cast Iron
Colour: Green/Dark Grey
4 Nos of Box Size: 13"x8"x7
4 Nos of Boxes: 2
Delivery Time: 10-12 Days
Price-6200
