ITC-HSN: 84879000
Min Order Qty 4 NOS (Numbers)
Accept Small Orders
Fulfilment Capacity (Per Month): 100 NOS (Numbers)/month
Product not available

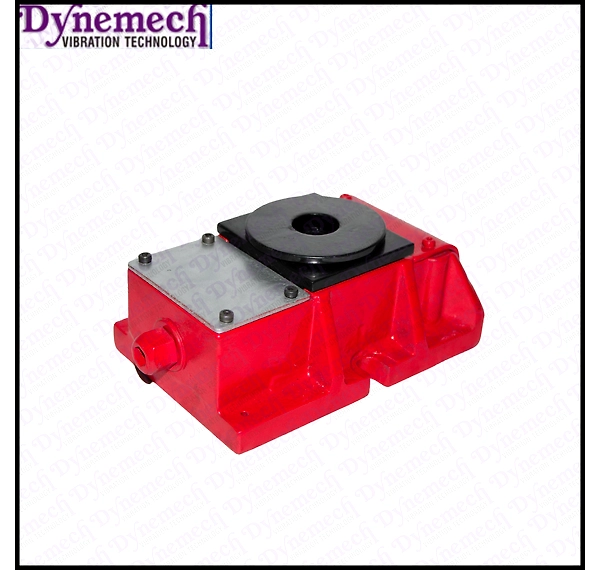

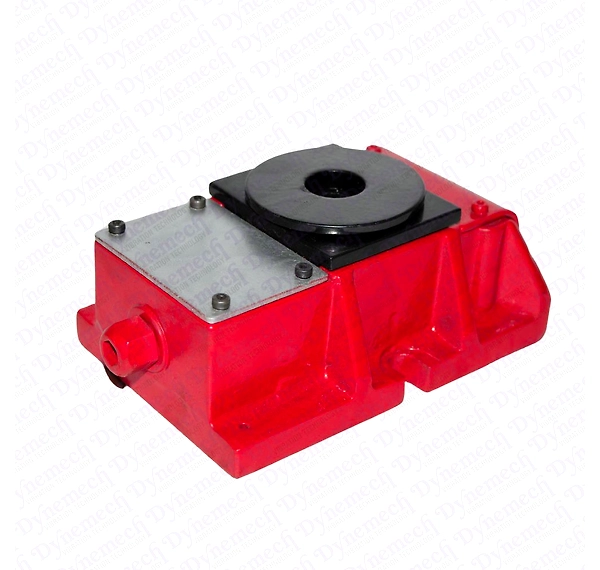

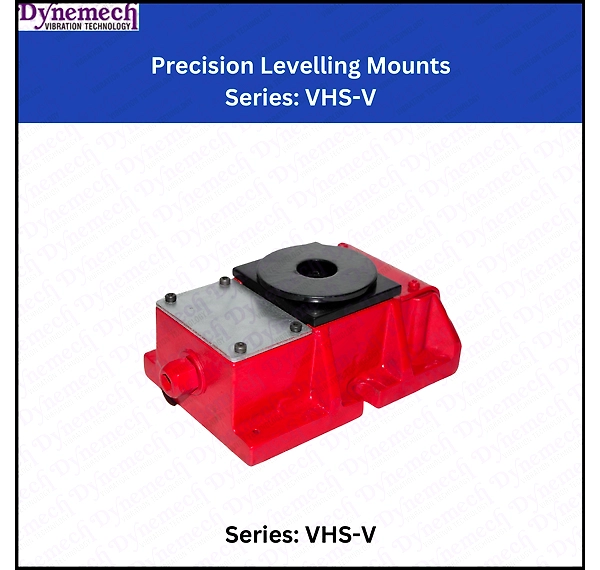

Dynemech Precision Levelling Mounts Series -VHS-V Festofix are useful in leveling and aligning machinery to very strict tolerances and make it possible to vary adjustments at any time, even under maximum loads requiring only a small hand wrench to adjust. These mounts provide the most rigid machine-to-foundation connection. The 3-piece wedge design provides true vertical lift and eliminates lateral movement as machines are raised or lowered.
Contact us for
Dynemech Precision Levelling Mounts Series -VHS-V Festofix are useful in leveling and aligning machinery to very strict tolerances and make it possible to vary adjustments at any time, even under maximum loads requiring only a small hand wrench to adjust. These mounts provide the most rigid machine-to-foundation connection. The 3-piece wedge design provides true vertical lift and eliminates lateral movement as machines are raised or lowered.
Length:170(mm) To 350(mm) Width:108(mm) To 230(mm) Height:60(mm) To 138(mm) Recommended Load Capacity: 1000 Kg/pc To 12000 Kg/pc Max. Load(Kg/pc):9000 Kg/pc To 70000 Kg/pc L1(mm):91 To 180 D(mm):75 To145 (mm) h(mm):5 To 10 f(mm): 17 To 37 G(M12 To M36 a(mm):12 To 35 SW1: 19 To 40 SW2:10 To 21 e1:12.7 To 28 e2:26 To 46
4 Nos Weight ( Kg.): 190 kg
Material: Cost Iron & sheet Metal
Colour: Red/Dark Grey
4 Nos Boxes: 4
4 Nos Box Size: 13"x8"x7
Delivery Time: 10-12 days
Price:12300
