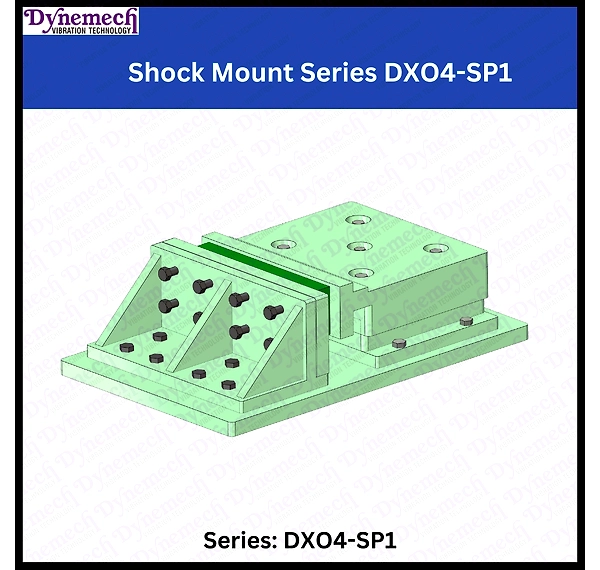

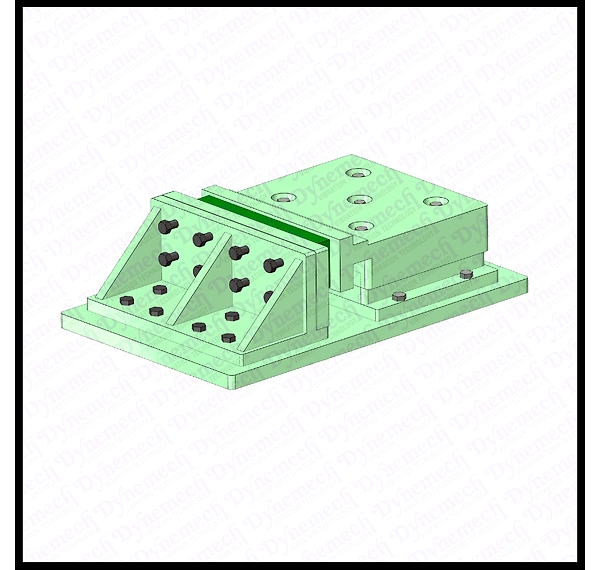

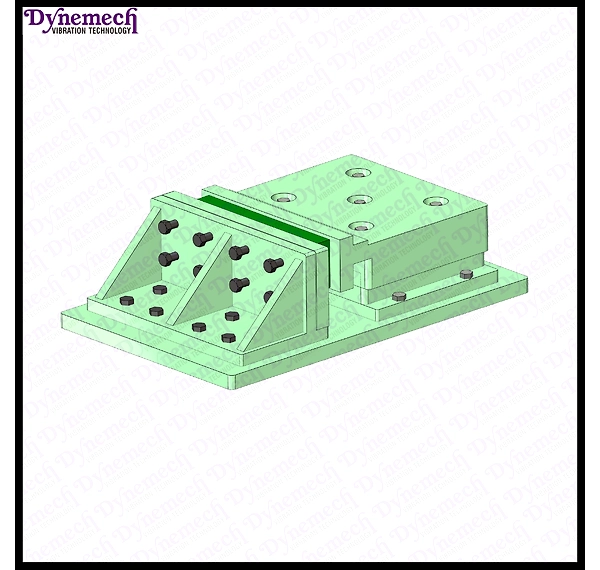

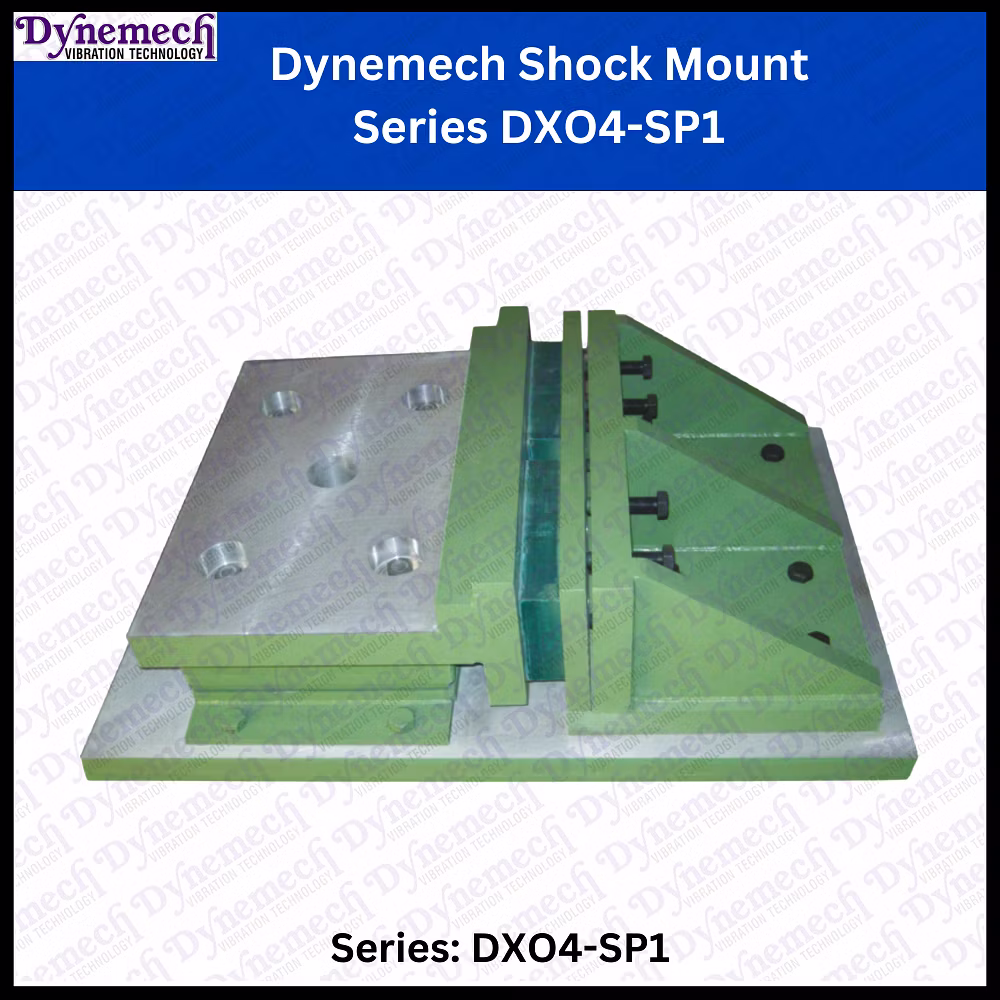

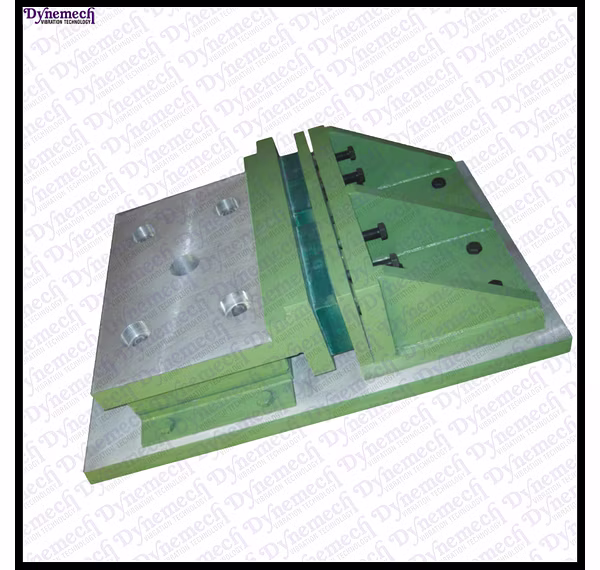

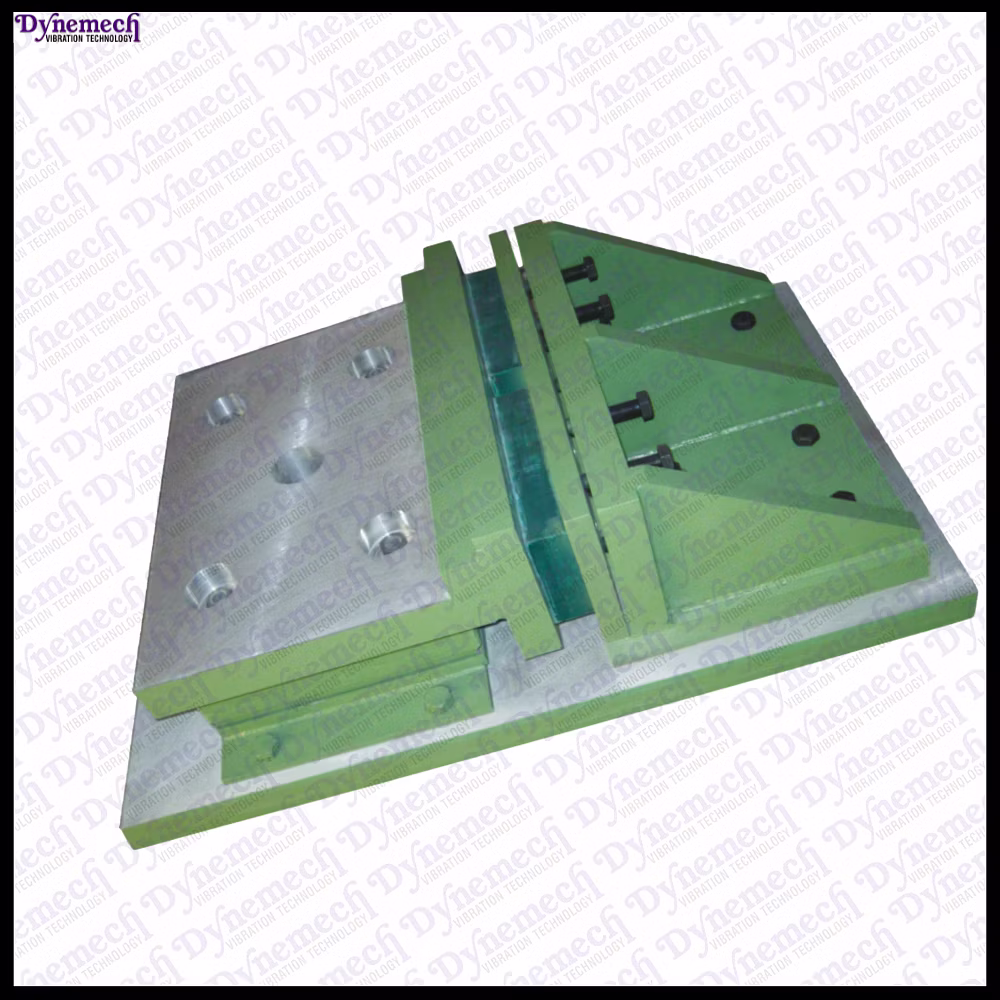

Dynemech Shock Mount Series DXO4-SP1 series is designed for Very heavy machines which produce high shocks and are top heavy or have high rapid movements. These mounts provides stability to forging presses which have a very small area and are heavier on the top half. The base is equipped with multi layers of DHS1 insulation plates and the strong side support avoids lateral movement of the machine. Similarly for VMC machines these mounts provides high efficiency along with preventing machine shaking during high rapid.

Model: DXO4-SP1

D: 176(mm) To 326(mm)

Height: 185(mm) To 185(mm)

Length: 650(mm) To 800(mm)

Width: 350(mm) To 500(mm)

A: 250(mm) To 400(mm)

B: 200(mm) To 350(mm)

C: 300(mm) To 450(mm)

Load Capacity: 7000(Kg) To 21000(Kg)

Natural Frequency Vertical: 7.0(Hz)

4 Nos. weight: 1270 Kg

4 Nos. of Boxes: 4

Delivery Time: 15 To 20 Days

4 Nos. Box Size: 24"X34"X10"

Temperature: -20°C To +70°C

Price Range Min: Rs. 102000/- each

Price Range Max: Rs. 172000/- each
