Measurement Precision & Tolerances

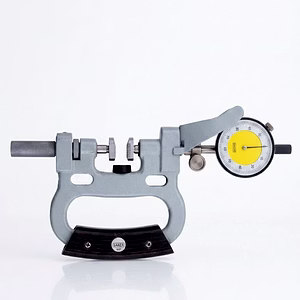

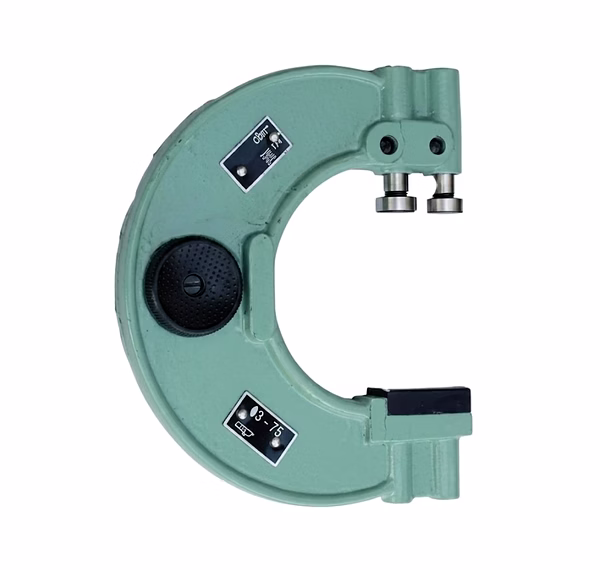

Adjustable Snap Gauges feature a configurable anvil or spacer system that allows the operator to set a nominal dimension across several sizes while retaining rapid go/no-go operation. Resolution is driven by the installed dial indicator and the rigidity of the frame. Use in-line fixtures or handheld checks depending on application.

Calibration & Compliance

Settings must be confirmed against master gauges and documented in calibration logs. Where contractual inspection is required, provide a CMM lab validation certificate for the range of settings used in production.

Processing Insight & Technical Notes

Ensure locking screws and spacers are torqued consistently. For repeated adjustment, use hardened spacers to prevent wear and maintain dimensional fidelity. Consider fixture-mounted versions for high-cycle use.

Applications & Use Cases

• Batch Production: Inspect multiple part sizes without changing gauge inventory.
• Assembly Lines: Fast adjustment between product runs during mixed production.
• Service & Repair: Versatile checks for varied spare-part diameters.
