Thread Plug Gauge Composition & Function

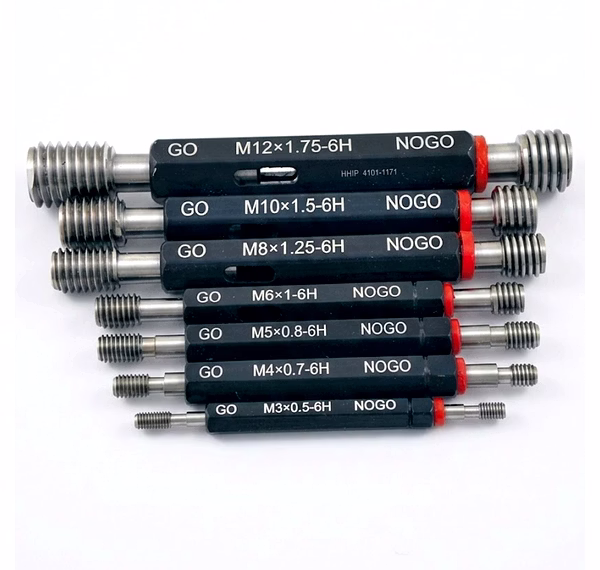

The Thread Plug Gauge is a hardened metrology pin sized to match a specified internal thread form. It provides a tactile go/no-go check to confirm that thread geometry and minor diameter meet drawing tolerance. The gauge is designed for rapid verification without interim measurement equipment.

Functional Performance & Operational Efficiency

Using a plug gauge reduces inspection time versus full dimensional measurement. It is effective for line-side checks and receiving inspection to block nonconforming parts early. When matched to the drawing tolerance band, the gauge helps maintain assembly fit rates.

Processing Insight & Quality Control

Gauges are hardened and ground to retain dimensional stability under repeated insertion cycles. For production environments, random sample checks combined with periodic CMM validation of gauge sizes are recommended. Store gauges in protective cases to avoid nicks that affect fit.

Applications & Use Cases

Production QC teams use plug gauges for acceptance testing. Incoming inspection teams use them for batch lot checks. Assembly technicians use them to verify mating parts prior to line assembly.
