ITC-HSN: 84879000
Min Order Qty 4 Numbers
Accept Small Orders
Fulfilment Capacity (Per Month): 100 Numbers/month
Product not available
ynemech offers ANTI VIBRATION SHEETS made from high grade synthetic composite material. These sheets have different load capacities and are available in different natural frequencies to suit various industrial applications. These are resistant to water, oils, lubricating oils, fuels etc. used in the shop floor. Each sheet has defined stress value and can be placed directly under the machine as per the weight of the machine and no. of mounting positions. These plates will not deform plastically, if the weight of machine does not exceed maximum load value of the insulation plates. The available thicknesses are 2mm, 8mm, 15mm, 20mm, 25mm and 65mm.
Freight Will Be Extra
Contact us for

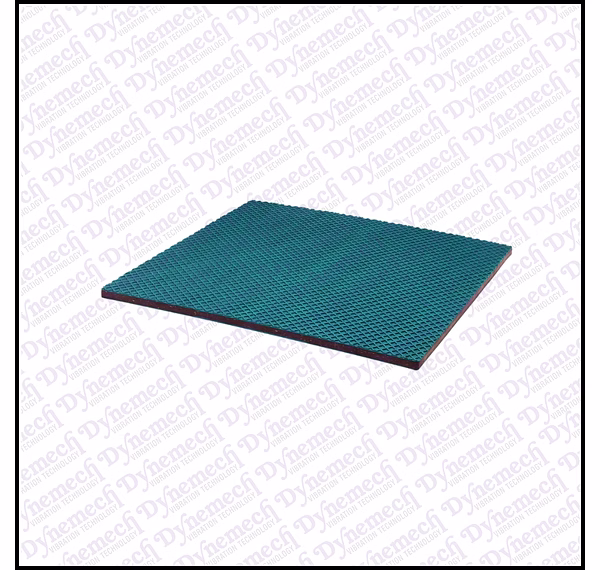

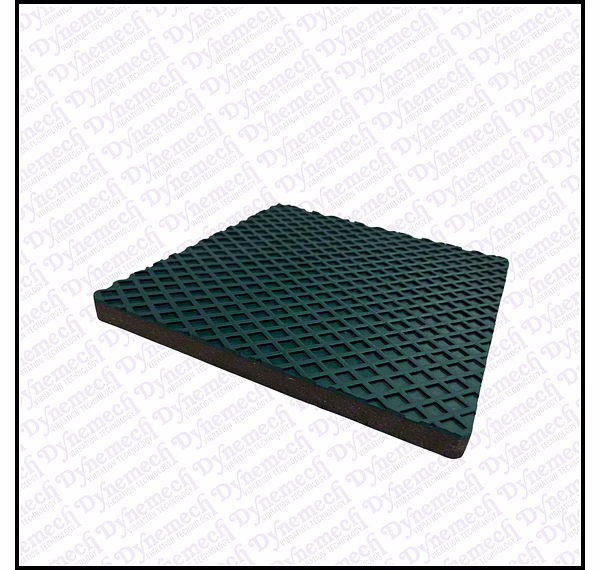

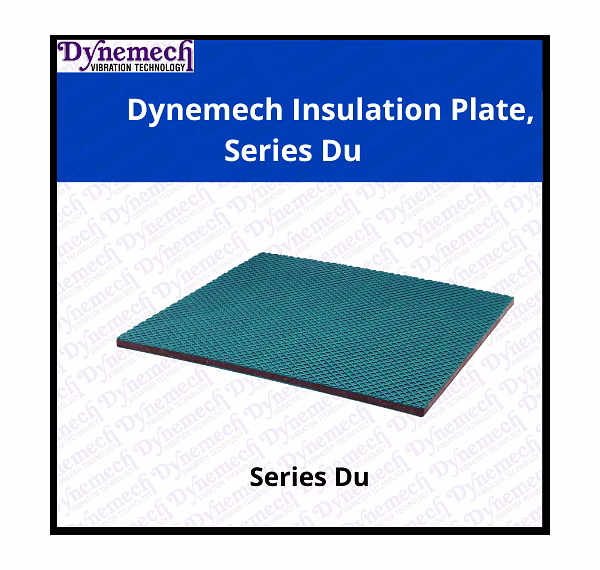

Dynemech Anti-Vibration Du Insulation Sheet is made from high grade synthetic composite material. This sheet is resistant to water, oils,
lubricating oils, fuels etc. used in the shop floor. This sheet has defined stress value and can be placed directly under the machine as per
the weight of the machine and no. of mounting positions. This plates will not deform plastically, if the weight of machine does not
exceed maximum load value of this Insulation plate.
Size :500x500x15mm
Load Capacity (Kg.):03 to 09
Natural Frequency (Hz):18-35
Thickness (mm):15
Coeff. of Friction:0.9
Shore A Hardness:90-92
Working Temp Range °C:-20 to +70
Weight ( Kg.):6.35
Material:Nitrile Rubber, Cork, Synthetic Fibre and Other High Gread Compounds.
Colour:Green, Grey, Black
Freight Will Be Extra
