ITC-HSN: 84879000
Min Order Qty 4 NOS (Numbers)
Accept Small Orders
Fulfilment Capacity (Per Month): 50 NOS (Numbers)/month
Product not available

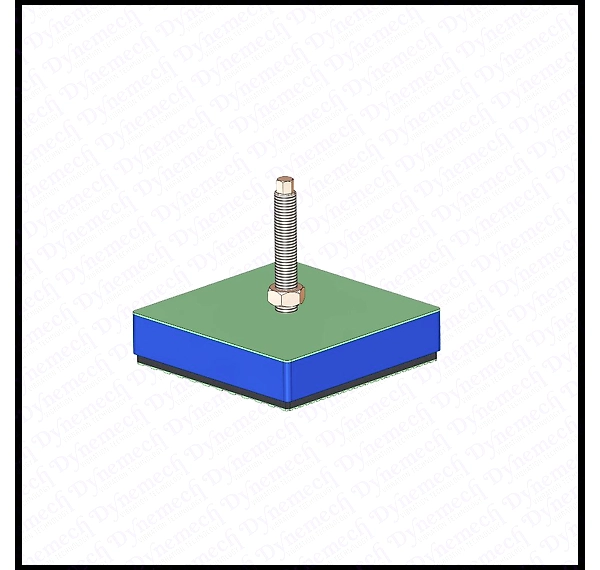

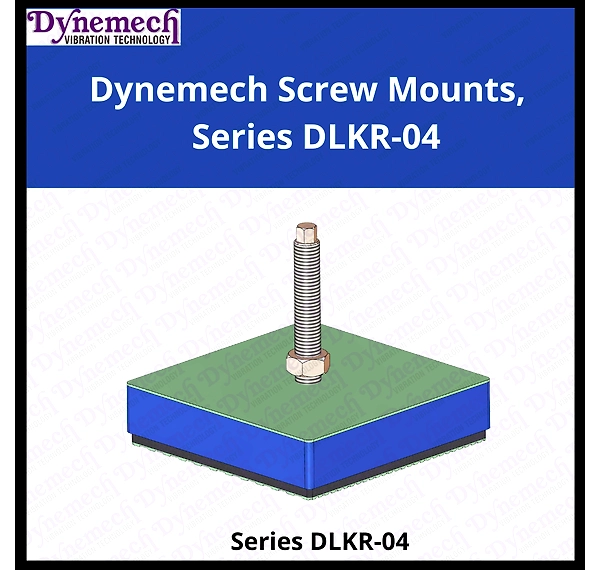

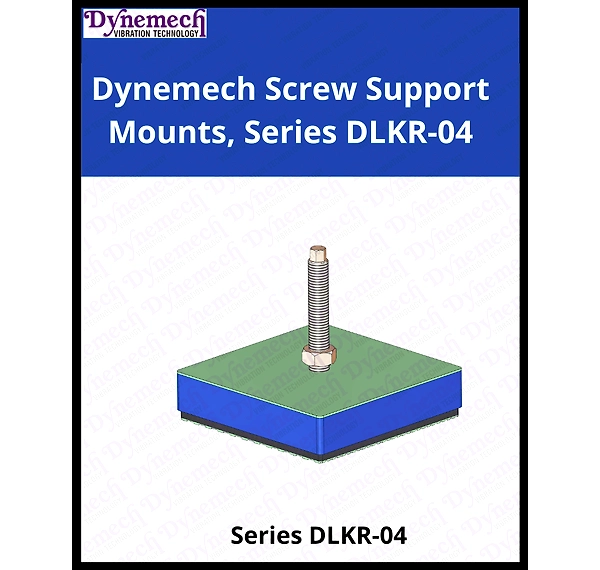

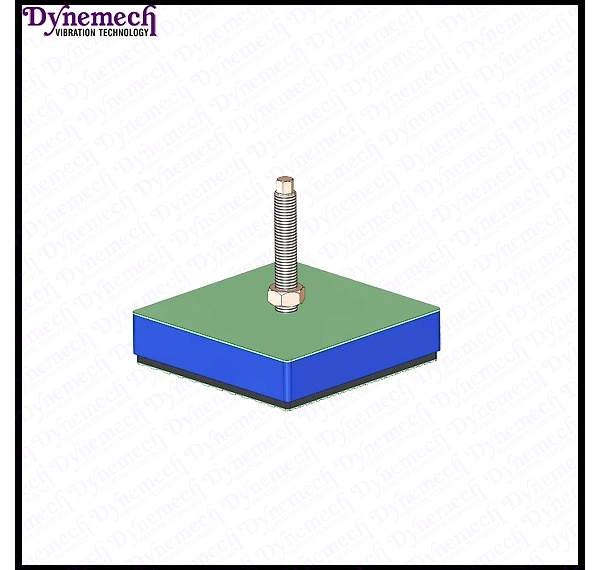

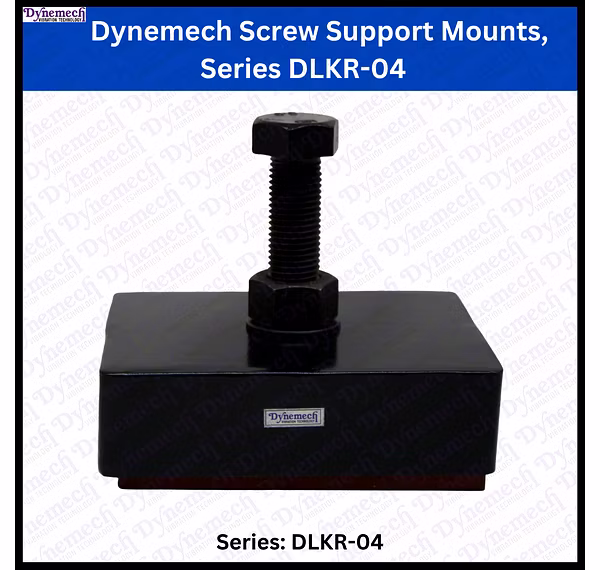

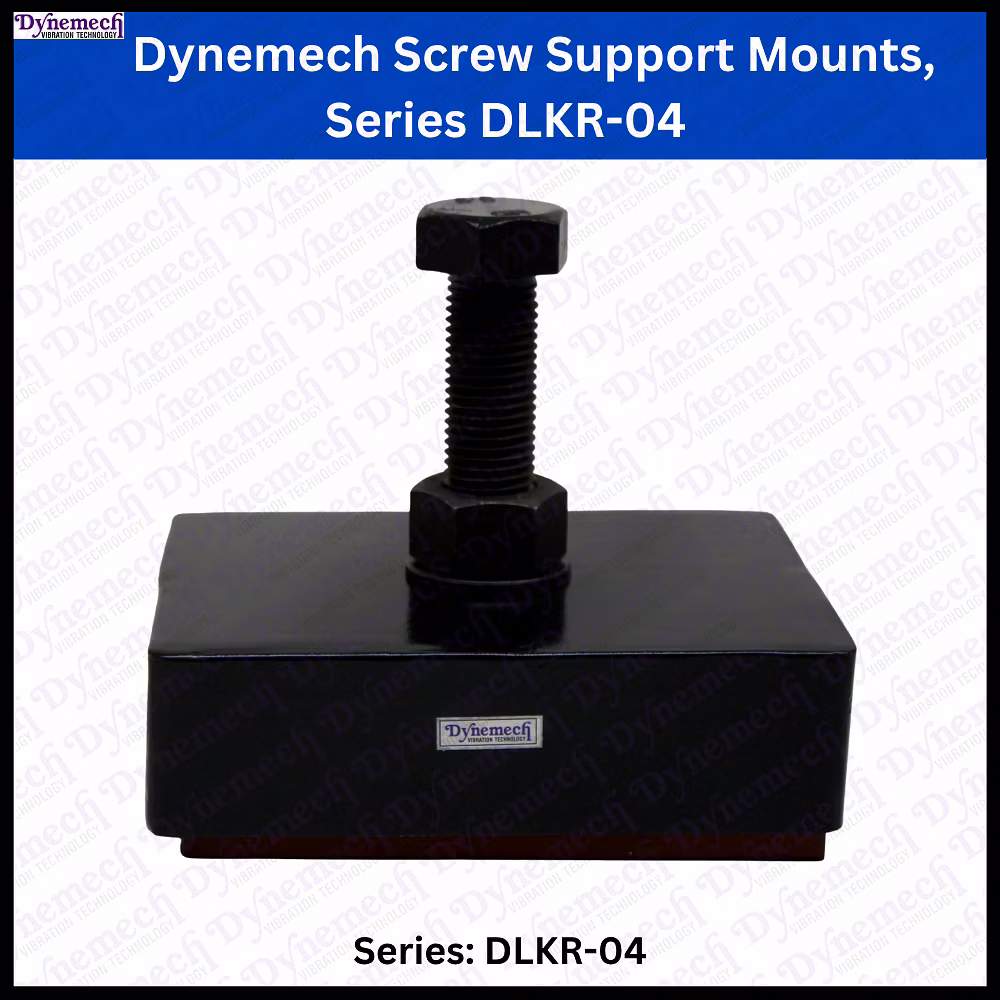

DLKR series Anti-vibration mounts have steel body and are used for machines having mounting holes in the base. This leveling mount has a cover plate and dimpled bottom plate holding the insulation plate. Leveling is done by tightening the bolt which lifts the cover plate with the machine foot. The vibration dampening base pad is made of composite elastomeric material at varying composition contributing different natural frequencies to provide vibration damping solutions to all types of industrial machines.
Contact us for
DLKR series Anti-vibration mounts have steel body and are used for machines having mounting holes in the base. This leveling mount has a cover plate and dimpled bottom plate holding the insulation plate. Leveling is done by tightening the bolt which lifts the cover plate with the machine foot. The vibration dampening base pad is made of composite elastomeric material at varying composition contributing different natural frequencies to provide vibration damping solutions to all types of industrial machines.
Application:Dynemech Machine Base Mounts Series DLKR are simple but effective rectangular vibration dampers for machines with respective holes in the base. With their sturdy construction, Series DLKR supports both low frequency attenuation and stable precise machine levelling .
Size :200x200x58(mm)
Load Capacity (Kg.):5600 Kg/pc
Bolt Size:M20X2.5X150mm
Adj.(mm):15
Working Temp Range °C:-16 to 90
Weight ( Kg.):14
Material:Rubber+Cust Iron+Mild steel
Colour:Green & YELLOW
