ITC-HSN: 84879000
Min Order Qty 4 NOS (Numbers)
Accept Small Orders
Fulfilment Capacity (Per Month): 100 NOS (Numbers)/month
Product not available

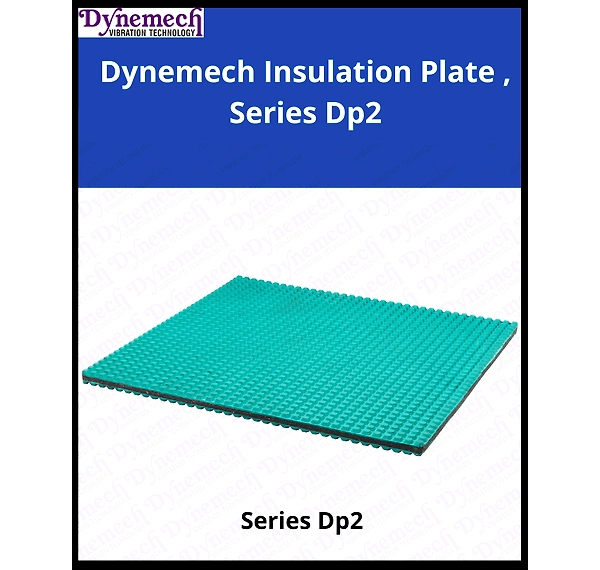

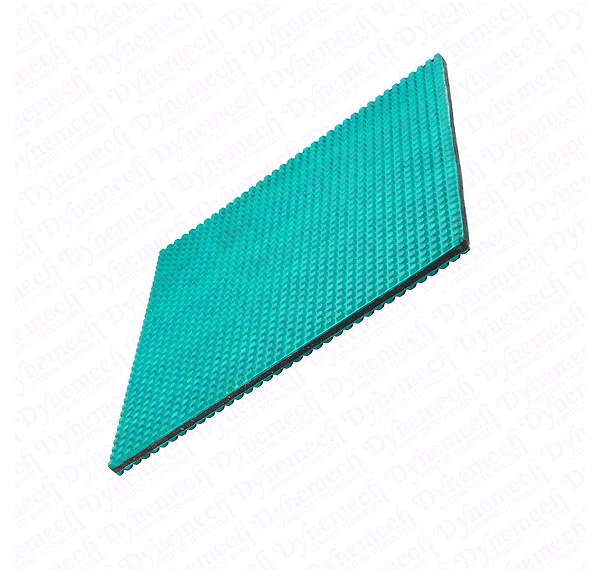

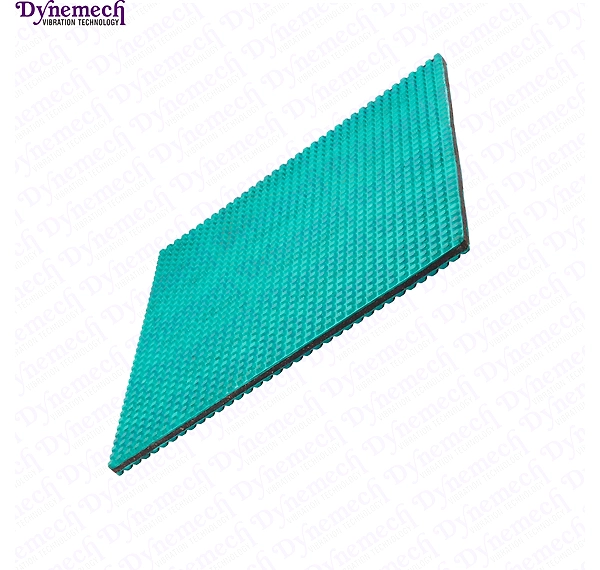

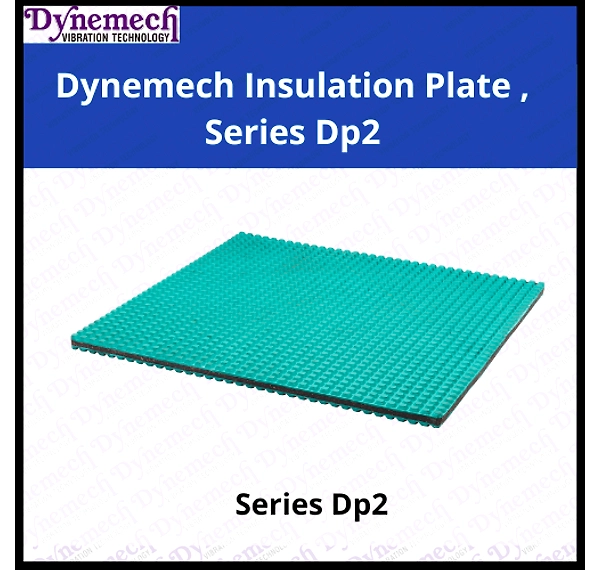

Dynemech Insulation Plates Dp2 are made from the compund of Nitrile Rubber, Cork, Synthetic Fibre which
at varying compositions gives different natural frequencies for providing vibration damping solution to
almost every machine tool. Also the Insulation Plates are resistant to fuels, lubricating oils, water etc.
Application:Suitable for passive vibration control of measuring & testing machines maintains machines stability along with vibration reduction.
Contact us for
Dynemech Insulation Plates Dp2 are made from the compund of Nitrile Rubber, Cork, Synthetic Fibre which
at varying compositions gives different natural frequencies for providing vibration damping solution to
almost every machine tool. Also the Insulation Plates are resistant to fuels, lubricating oils, water etc.
Application:Suitable for passive vibration control of measuring & testing machines maintains machines stability along with vibration reduction.
Size :600x600x20mm
Load Capacity (Kg.):01 to 05
Natural Frequency (Hz):12-30
Thickness (mm):20
Coeff. of Friction:0.8
Shore A Hardness:40-45
Working Temp Range °C:-20 to +70
Weight ( Kg.):7.35
Material: Nitrile Rubber, Cork, Synthetic Fibre and Other High Gread Compounds.
Colour:Green, Grey, Black
