Min Order Qty 1
Product not available
Ahmedabad, India
Business Operations: Manufacturer, Merchant, Service Provider
Contact us for
| range of product |

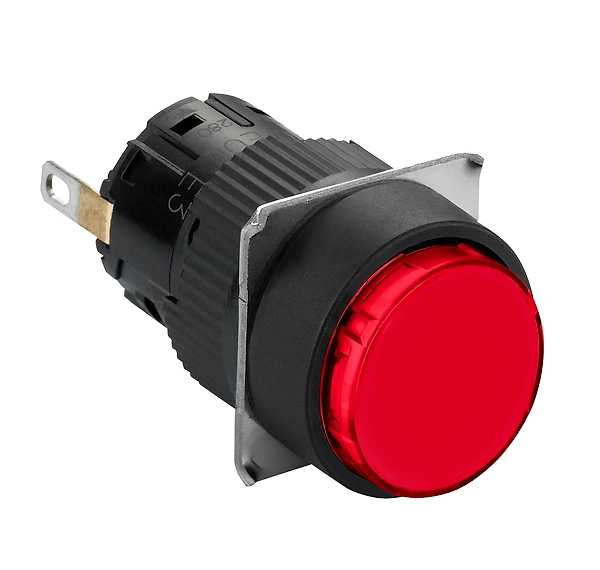

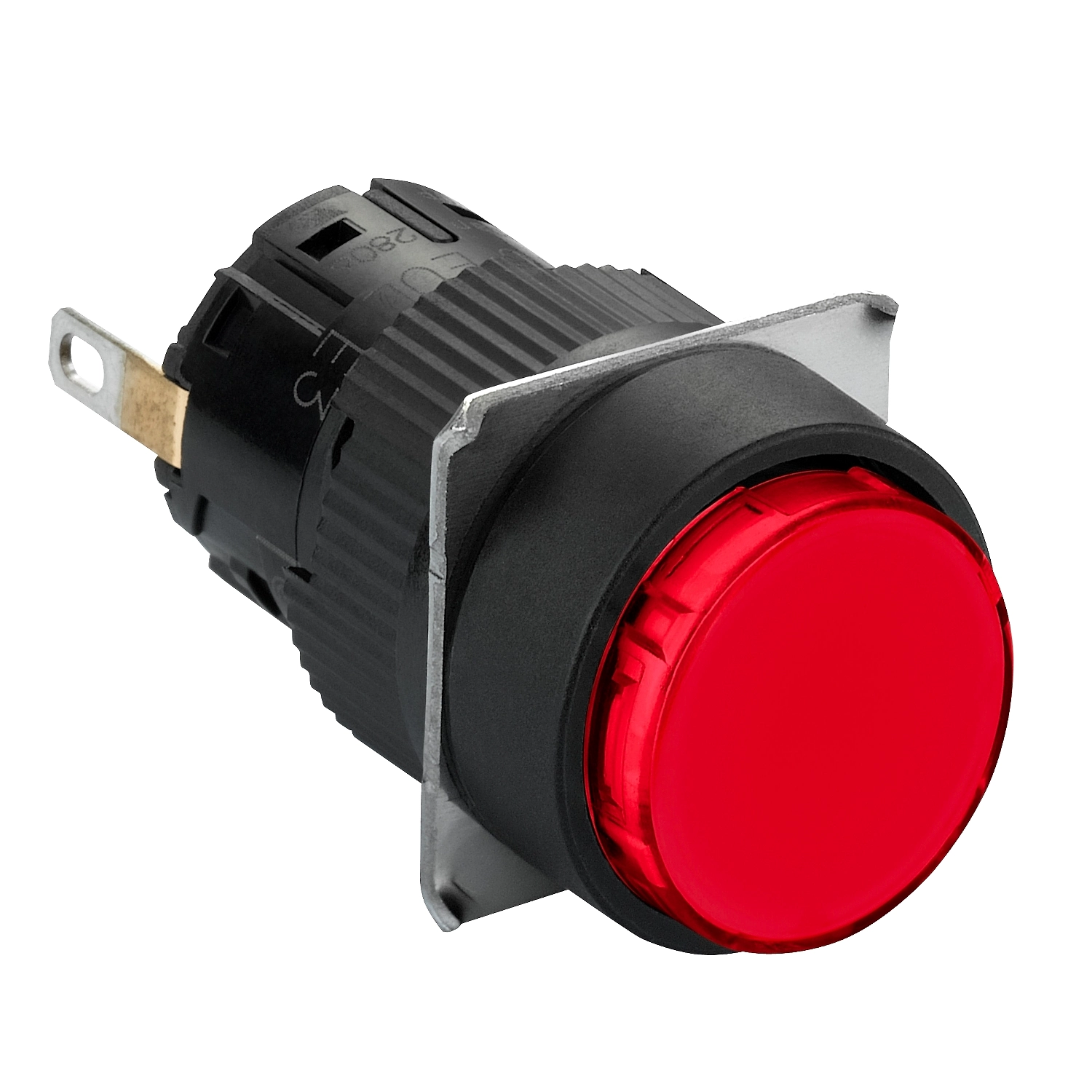

Harmony XB6E
|
|
|---|---|---|
| product or component type |
Monolithic pilot light
|
|
| device short name |
XB6E
|
|
| bezel material |
Plastic
|
|
| mounting diameter |
16 mm
|
|
| sale per indivisible quantity |
5
|
|
| shape of signaling unit head |
Round
|
|
| cap/operator or lens colour |
Red
|
|
| light source |
Integral LED
|
|
| light block supply |
Direct
|
|
| [Us] rated supply voltage |
24 V DC polarised
|
| net weight |
0.006 kg
|
|
|---|---|---|
| overvoltage category |
II conforming to IEC 60536
|
|
| operating position |
Any position
|
|
| marking |
CE
|
|
| connections - terminals |
Insulated faston, connection size: 2.8 x 0.5 mm
Solder terminal, clamping capacity: <= 0.75 mm² AWG 19 Fast connector socket |
|
| tightening torque |
0.6…1 N.m
|
|
| [Ui] rated insulation voltage |
250 V (pollution degree 3) conforming to IEC 60947-1
|
|
| [Uimp] rated impulse withstand voltage |
IEC 60947-1 2.5 kV
|
|
| signalling type |
Steady
|
|
| current consumption |
10 mA
|
|
| service life |
30000 h
|
| ambient air temperature for storage |
-40…70 °C
|
|
|---|---|---|
| ambient air temperature for operation |
-10…55 °C
|
|
| IP degree of protection |
IP65 conforming to IEC 60529
|
|
| standards |
IEC 60947-5-1
CSA C22.2 No 14 JIS C 852 JIS C8201-5-1 UL 508 IEC 60947-1 JIS C8201-1 |
|
| product certifications |
CURus
CCC |
|
| vibration resistance |
1 mm (f= 10…55 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
10 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
10 g
|
|
| Package 1 Height |
3 cm
|
|
| Package 1 width |
9.5 cm
|
|
| Package 1 Length |
20 cm
|
|
| Unit Type of Package 2 |
BAG
|
|
| Number of Units in Package 2 |
5
|
|
| Package 2 Weight |
54 g
|
|
| Package 2 Height |
3 cm
|
|
| Package 2 width |
9.5 cm
|
|
| Package 2 Length |
20 cm
|
|
| Unit Type of Package 3 |
S01
|
|
| Number of Units in Package 3 |
50
|
|
| Package 3 Weight |
776 g
|
|
| Package 3 Height |
15 cm
|
|
| Package 3 width |
15 cm
|
|
| Package 3 Length |
40 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation | ||
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| Circularity Profile | ||
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
| Warranty |
18 months
|
|---|
