XB5S1B2M12

Price on Request

Min Order Qty 1

  • Product not available

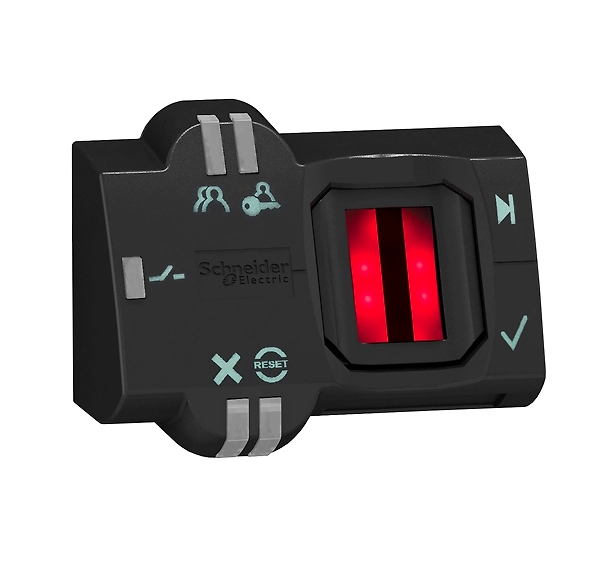

Biometric switch bistable, plastic, Ø22, connection by M12 connector, 24 V AC/DC

MAVEN AUTOMATION

Ahmedabad, India

Business Operations: Manufacturer, Merchant, Service Provider

Contact Seller

Contact us for


By clicking on ‘Send Trade Enquiry’, you agree to our terms & condition and user policies

Main
product or component type
Biometric switch

product specific application
Materials handling
Industrial machines

device short name
XB5S

bezel material
Dark grey plastic

mounting diameter
22 mm

output type
PNP

sale per indivisible quantity
1

IP degree of protection
IP20 (rear face) conforming to EN/IEC 60529
IP65 (front face) conforming to EN/IEC 60529

type of operator
Stay put

operator position information
2 positions

operator profile
fingerprint reader

memory usage
200 users with up to 2 fingerprints per user

Complementary
enclosure material
Polyamide PA66

cable insulation material
PvR

operating position
Horizontal position
Vertical surface installation
Flat surface installation

function of module
Bi-stable

net weight
0.183 kg

marking
CE

local signalling
1 LED (green)output state indicator:
1 LED (orange)administrator's registration mode:
1 LED (orange)operator's registration mode:
1 LED (red)error:
1 LED (red)reset:

short-circuit protection
250 mA external fuse type gG

[Us] rated supply voltage
24 V DC

electrical connection
M12 connector of 0.2 m

supply voltage limits
20…30 V DC

protection type
Reverse polarity
Overload protection
Short-circuit

maximum switching current
200 mA

[Ures] residual voltage
1 V closed state

current consumption
<= 70 mA no-load

maximum delay first up
3 s + 0.5 ms per user registered

maximum delay recovery
1.5 s

maximum delay response
1.5 s

Environment
range of product
Harmony XB5S

ambient air temperature for storage
-25…70 Â°C

ambient air temperature for operation
-5…50 Â°C

NEMA degree of protection
NEMA 12

standards
IEC 61000-6-4
IEC 61000-6-2

product certifications
CSA
UL

vibration resistance
+/- 3 mm (f= 5…9 Hz) conforming to IEC 60068-2-6
1 gn (f= 9…500 Hz) conforming to IEC 60068-2-6

shock resistance
50 gn 11 ms conforming to IEC 60068-2-27

Packing Units
Package 1 Weight
0.159 kg

Package 1 Height
0.670 dm

Package 1 width
0.950 dm

Package 1 Length
1.840 dm

Offer Sustainability
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration

Mercury free
Yes

RoHS exemption information
China RoHS Regulation
Environmental Disclosure
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Contractual warranty
Warranty
18 months
