Harmony XB5

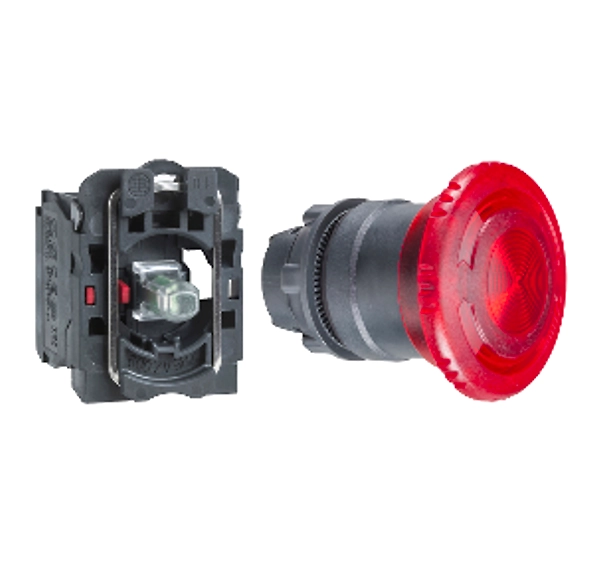

Mushroom button

XB5

Plastic

Plastic

22 mm

Round

turn to release

Red mushroom Ø 30 mm

1 NC

Slow-break

Protected LED

Integral LED

24 V AC 50/60 Hz

24 V

50 mm

30 mm

59 mm

(11-12)NC
(13-14)NO

0.066 kg

7000000 Pa at 55 °C, distance : 0.1 m

Standard contacts

With conforming to EN/IEC 60947-5-1 appendix K

1.5 mm (NC changing electrical state)
2.6 mm (NO changing electrical state)
4.3 mm (total travel)

3.5 N NC changing electrical state
3.8 N NO changing electrical state

1000000 cycles

Silver alloy (Ag/Ni)

10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1

10 A conforming to EN/IEC 60947-5-1

600 V (pollution degree 3) conforming to EN 60947-1

3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1
6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1
0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1

1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C

Λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to EN/IEC 60947-5-4
Λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to EN/IEC 60947-5-4

Steady

14 mA

100000 year(s) at rated voltage and 25 °C

1 kV conforming to IEC 61000-4-5

Complete product

TH

-40…70 °C

-25…70 °C

Class II conforming to IEC 61140

IP66 conforming to IEC 60529
IP69K conforming to IEC 60529

NEMA 13
NEMA 4X

IK05 conforming to IEC 50102

CSA C22.2 No 14
EN/IEC 60947-5-1
EN/IEC 60947-5-4
UL 508
EN/IEC 60947-1
JIS C8201-5-1
JIS C8201-1

RINA
UL listed
GL
DNV
BV
CSA
LROS (Lloyds register of shipping)

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

2 kV conforming to IEC 61000-4-4

10 V/m conforming to IEC 61000-4-3

6 kV on contact (on metal parts) conforming to IEC 61000-4-2
8 kV in free air (in insulating parts) conforming to IEC 61000-4-2

Class B conforming to IEC 55011

PCE

1

122 g

4.2 cm

3.3 cm

5.2 cm

S03

240

Green Premium product

Yes

Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration

Yes

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
