Min Order Qty 1
Product not available
Ahmedabad, India
Business Operations: Manufacturer, Merchant, Service Provider
Contact us for
| range of product |

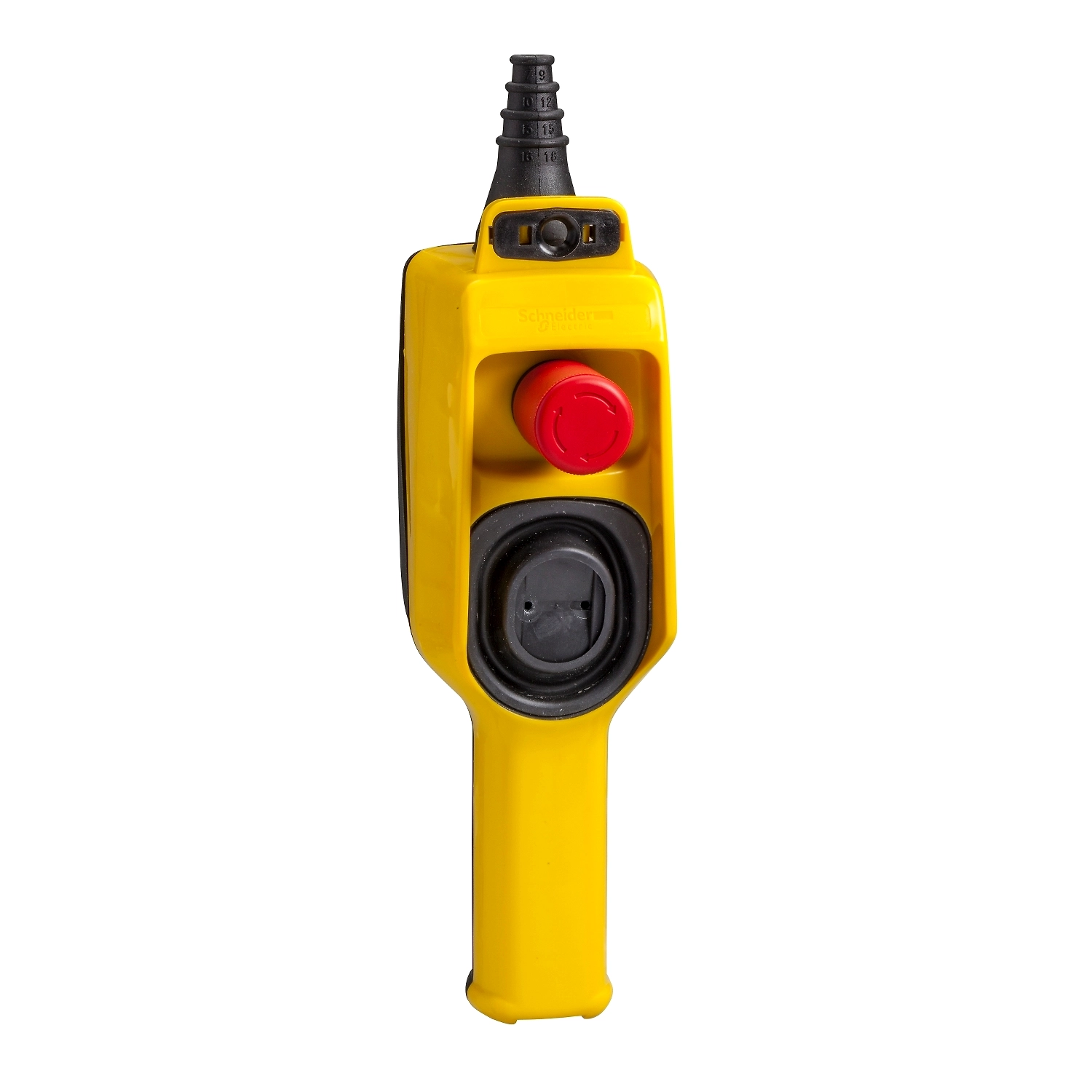

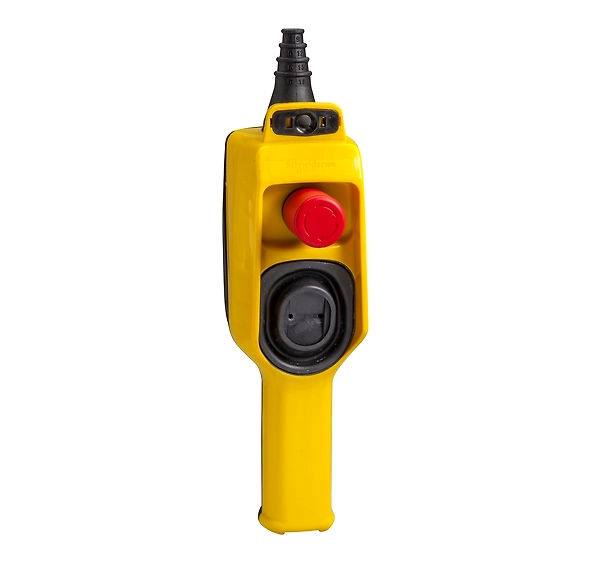

Harmony XAC
|
|
|---|---|---|
| product or component type |
Pendant control station
|
|
| device short name |
XACD
|
| control station type |
Double insulated
|
|
|---|---|---|
| enclosure material |
Polypropylene
|
|
| control type |
Intuitive
|
|
| electrical circuit type |
Power circuit
|
|
| enclosure type |
Complete ready for use
|
|
| control station application |
Control of single speed hoist motor
|
|
| motor starter type |
Reversing
|
|
| control station composition |
1 2-directional button
|
|
| control button type |
First direction button 1 NO (brake) 2-pole raise, slow
Second direction button 1 NO (brake) 2-pole lower, slow |
|
| product compatibility |
XEDS3121 for reversing operation
|
|
| mechanical interlocking |
With mechanical interlocking
|
|
| control station colour |
Yellow
|
|
| connections - terminals |
Screw clamp terminals, 1 x 2.5 mm² with or without cable end
Screw clamp terminals, 2 x 1.5 mm² with or without cable end |
|
| standards |
CSA C22.2 No 14
EN/IEC 60204-32 UL 508 EN/IEC 60947-5-1 |
|
| protective treatment |
TH
|
|
| ambient air temperature for operation |
-25…70 °C
|
|
| ambient air temperature for storage |
-40…70 °C
|
|
| vibration resistance |
15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
100 gn conforming to IEC 60068-2-27
|
|
| overvoltage category |
Class II conforming to IEC 61140
|
|
| IP degree of protection |
IP65 conforming to IEC 60529
|
|
| IK degree of protection |
IK08 conforming to EN 50102
|
|
| mechanical durability |
3000000 cycles
|
|
| cable entry |
Rubber sleeve with stepped entry 7…18 mm
|
|
| [Ithe] conventional enclosed thermal current |
16 A
|
|
| [Ui] rated insulation voltage |
500 V (pollution degree 3) conforming to IEC 60947-1
|
|
| [Uimp] rated impulse withstand voltage |
6 kV conforming to IEC 60947-1
|
|
| contact operation |
Snap action
|
|
| operating force |
28 N
|
|
| short-circuit protection |
6 A fuse protection by cartridge fuse type aM
|
|
| rated operational power in W |
2200 W AC-3 at 400 V conforming to IEC 60947-3 appendix A
2200 W AC-4 at 400 V conforming to IEC 60947-3 appendix A |
|
| electrical durability |
1000000 cycles AC-3, 2200 W at 400 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A
1000000 cycles AC-4, 2200 W at 400 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A |
|
| terminals description ISO n°1 |
(7-8)P
(1-2)P (5-6)P (13-14)NO (15-16)NO (3-4)P |
|
| terminal identifier |
(13-14)NO
(11-12)NC |
|
| net weight |
0.355 kg
|
| Package 1 Weight |
0.485 kg
|
|
|---|---|---|
| Package 1 Height |
1.250 dm
|
|
| Package 1 width |
0.900 dm
|
|
| Package 1 Length |
3.150 dm
|
| REACh Regulation | ||
|---|---|---|
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Toxic heavy metal free |
Yes
|
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation | ||
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
| Warranty |
18 months
|
|---|
