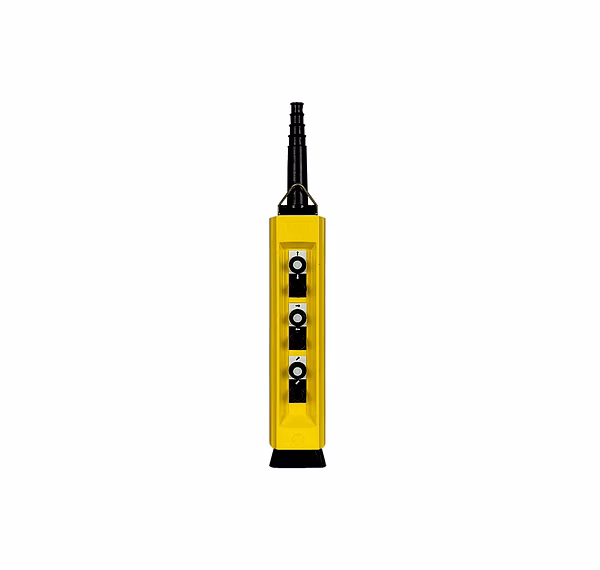

Harmony XAC

Pendant control station

XACB

Double insulated

Glass reinforced polyester

Power circuit

Complete ready for use

Control of single speed hoist motor

6 push-buttons + 1 emergency stop

Stop push-button Ø 40 mm 3 NC latching
First push-button 3-pole raise, slow
Second push-button 3-pole lower, slow
Fourth push-button 3-pole left, slow
Third push-button 3-pole right, slow
Fifth push-button 3-pole forward slow
Sixth push-button 3-pole reverse, slow

XESD2201 for reversing operation
XACS3991 for emergency stop

With mechanical interlocking between pairs

Yellow

Screw clamp terminals, 1 x 2.5 mm² with or without cable end
Screw clamp terminals, 2 x 1.5 mm² with or without cable end

CSA C22.2 No 14
EN/IEC 60947-5-1
EN/IEC 60204-32

CSA type 4

TH

-25…70 °C

-40…70 °C

15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6

100 gn conforming to IEC 60068-2-27

Class II conforming to IEC 61140

IP65 conforming to IEC 60529

1000000 cycles

Rubber sleeve with stepped entry 10…22 mm

20 A

Emergency stop contact: 400 V (pollution degree 3) conforming to IEC 60947-1
300 V conforming to CSA

6 kV conforming to IEC 60947-1

Snap action

32 N push-button
40 N emergency stop

12 A fuse protection by cartridge fuse type aM

3 hp at 240 V

3000 W at 240 V
3000 W at 400 V

1000000 cycles AC-3, 3000 W at 400 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A
1000000 cycles AC-4, 3000 W at 400 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A
700000 cycles AC-3, 3000 W at 240 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A
700000 cycles AC-4, 3000 W at 240 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A

(23-24)NO
(73-74)NO
(53-54)NO
(63-64)NO
(33-34)NO
(13-14)NO

(21-22)NC
(11-12)NC
(31-32)NC

(11-12)NC
(13-14)NO

1.7 kg

2.198 kg

1.000 dm

1.050 dm

7.000 dm

18 months
