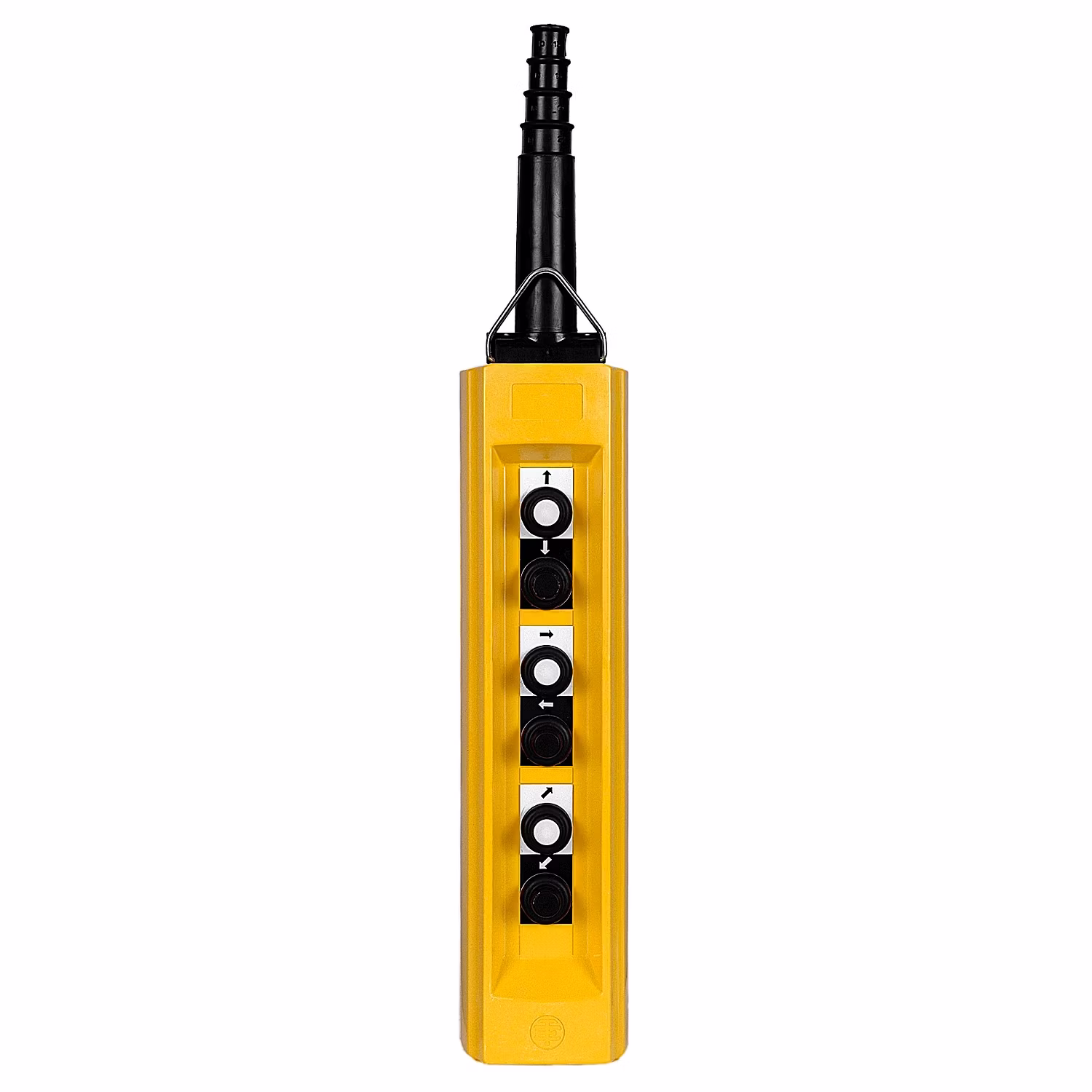

Harmony XAC

Pendant control station

XACB

Double insulated

Glass reinforced polyester

Power circuit

Complete ready for use

Control of single speed hoist motor

6 push-buttons

First push-button 3-pole raise, slow
Second push-button 3-pole lower, slow
Fourth push-button 3-pole left, slow
Third push-button 3-pole right, slow
Fifth push-button 3-pole forward slow
Sixth push-button 3-pole reverse, slow

XESD2201 for reversing operation

With mechanical interlocking between pairs

Yellow

Screw clamp terminals, 1 x 2.5 mm² with or without cable end
Screw clamp terminals, 2 x 1.5 mm² with or without cable end

EN/IEC 60204-32
CSA C22.2 No 14
EN/IEC 60947-5-1

CSA type 4

TH

-25…70 °C

-40…70 °C

15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6

100 gn conforming to IEC 60068-2-27

Class II conforming to IEC 61140

IP65 conforming to IEC 60529

1000000 cycles

Rubber sleeve with stepped entry 10…22 mm

20 A

500 V (pollution degree 3) conforming to IEC 60947-1
300 V conforming to CSA

6 kV conforming to IEC 60947-1

Snap action

32 N push-button

12 A fuse protection by cartridge fuse type aM

3 hp at 240 V

3000 W at 240 V
3000 W at 400 V

1000000 cycles AC-3, 3000 W at 400 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A
1000000 cycles AC-4, 3000 W at 400 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A
700000 cycles AC-3, 3000 W at 240 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A
700000 cycles AC-4, 3000 W at 240 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A

(63-64)NO
(53-54)NO
(23-24)NO
(73-74)NO
(33-34)NO
(13-14)NO

(11-12)NC
(13-14)NO

1.55 kg

PCE

1

2.032 kg

9 cm

10 cm

70 cm

Yes

Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration

Yes

Yes

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

18 months
