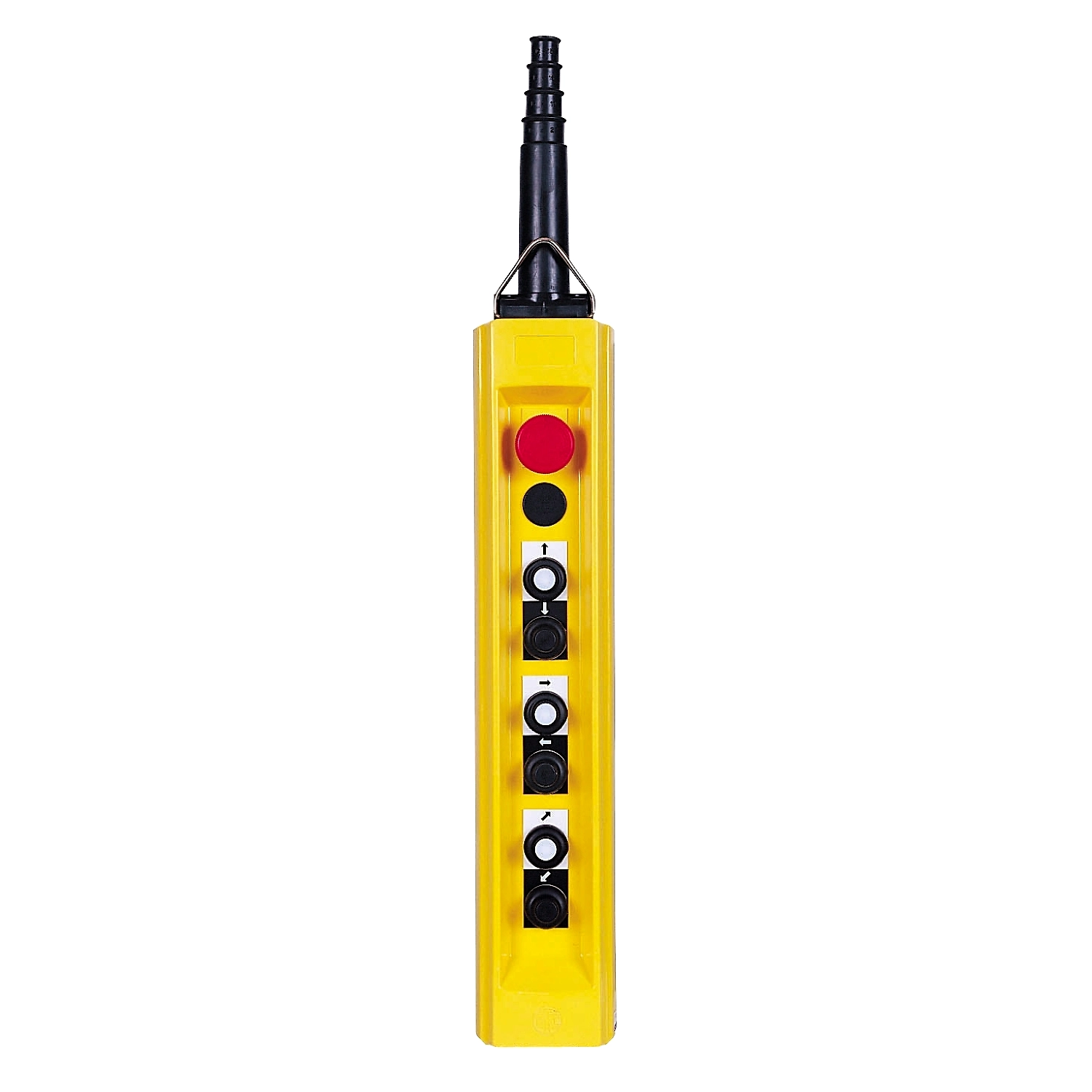

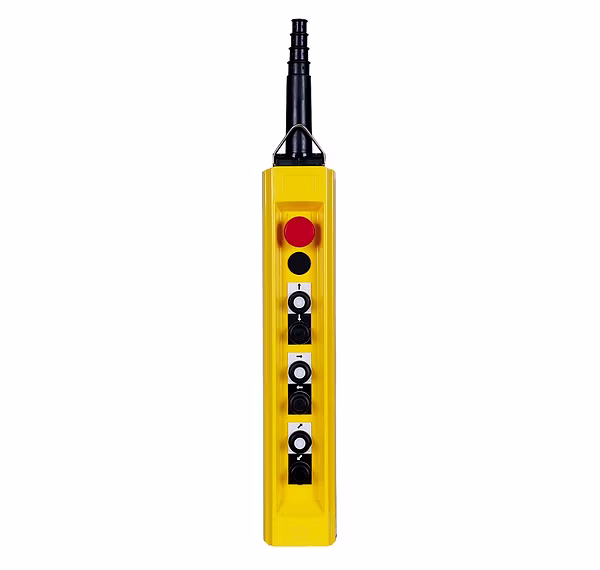

Harmony XAC

Pendant control station

XACB

Double insulated

Glass reinforced polyester

Power circuit

Complete ready for use

Control of single speed hoist motor

6 push-buttons + 1 emergency stop

Stop push-button Ø 40 mm 3 NC latching
First push-button 2-pole raise, slow
Second push-button 2-pole lower, slow
Fourth push-button 2-pole left, slow
Third push-button 2-pole right, slow
Fifth push-button 2-pole forward slow
Sixth push-button 2-pole reverse, slow

XESD1191 for reversing operation
XACS499 for emergency stop

With mechanical interlocking between pairs

Yellow

Screw clamp terminals, 1 x 2.5 mm² with or without cable end
Screw clamp terminals, 2 x 1.5 mm² with or without cable end

CSA C22.2 No 14
EN/IEC 60947-5-1
EN/IEC 60204-32

CSA type 4

TH

-25…70 °C

-40…70 °C

15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6

100 gn conforming to IEC 60068-2-27

Class II conforming to IEC 61140

IP65 conforming to IEC 60529

1000000 cycles

Rubber sleeve with stepped entry 10…22 mm

12 A

Emergency stop contact: 400 V (pollution degree 3) conforming to IEC 60947-1
600 V conforming to CSA

6 kV conforming to IEC 60947-1

Snap action

17 N push-button
40 N emergency stop

10 A fuse protection by cartridge fuse type aM

2 hp at 240 V, CSA certified
3 hp at 600 V, CSA certified
5 hp at 400 V, CSA certified

2200 W AC-3 at 240 V conforming to IEC 60947-3 appendix A
2200 W AC-3 at 400 V conforming to IEC 60947-3 appendix A
2200 W AC-4 at 240 V conforming to IEC 60947-3 appendix A
2200 W AC-4 at 400 V conforming to IEC 60947-3 appendix A

300000 cycles AC-3, 2200 W at 240 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A
300000 cycles AC-3, 2200 W at 400 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A
300000 cycles AC-4, 2200 W at 240 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A
300000 cycles AC-4, 2200 W at 400 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A
500000 cycles AC-3, 1500 W at 240 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A
500000 cycles AC-4, 1500 W at 240 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A
800000 cycles AC-3, 1500 W at 400 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A
800000 cycles AC-4, 1500 W at 400 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A

(23-24)NO
(33-34)NO
(43-44)NO
(13-14)NO

(31-32)NC
(21-22)NC
(11-12)NC

(13-14)NO
(11-12)NC

1.41 kg

PCE

1

2.02 kg

9.5 cm

10.5 cm

75 cm

Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration

Yes

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

18 months
