Min Order Qty 1
Product not available
Ahmedabad, India
Business Operations: Manufacturer, Merchant, Service Provider
Contact us for
| range of product |

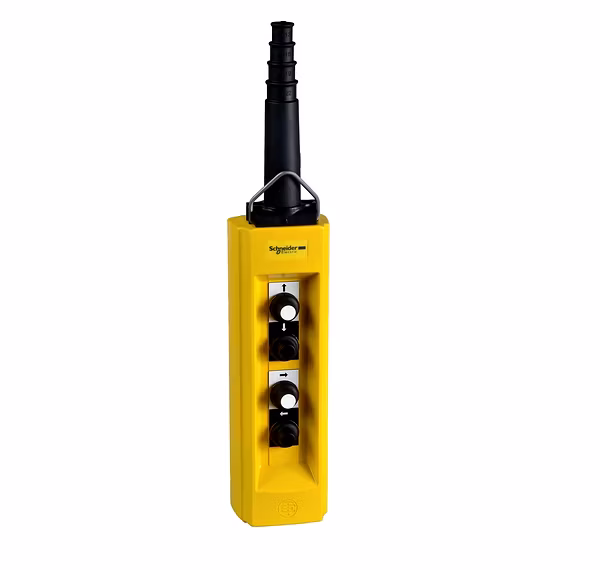

Harmony XAC
|
|
|---|---|---|
| product or component type |
Pendant control station
|
|
| device short name |
XACB
|
| control station type |
Double insulated
|
|
|---|---|---|
| enclosure material |
Glass reinforced polyester
|
|
| electrical circuit type |
Control circuit
|
|
| enclosure type |
Complete ready for use
|
|
| control station application |
Control of single speed hoist motor
|
|
| control station composition |
4 push-buttons
|
|
| control button type |
First push-button raise, slow
Second push-button lower, slow Fourth push-button left, slow Third push-button right, slow |
|
| product compatibility |
XESB2011 for reversing operation
|
|
| mechanical interlocking |
Without mechanical interlock
|
|
| control station colour |
Yellow
|
|
| connections - terminals |
Screw clamp terminals, 1 x 2.5 mm² with or without cable end
Screw clamp terminals, 2 x 1.5 mm² with or without cable end |
|
| standards |
EN/IEC 60204-32
EN/IEC 60947-5-1 CSA C22.2 No 14 |
|
| product certifications |
CSA 300V type 4
|
|
| protective treatment |
TH
|
|
| ambient air temperature for operation |
-25…70 °C
|
|
| ambient air temperature for storage |
-40…70 °C
|
|
| vibration resistance |
15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
100 gn conforming to IEC 60068-2-27
|
|
| overvoltage category |
Class II
|
|
| IP degree of protection |
IP65 conforming to IEC 60529
|
|
| IK degree of protection |
IK08 conforming to EN 50102
|
|
| mechanical durability |
1000000 cycles
|
|
| cable entry |
Rubber sleeve with stepped entry 10…22 mm
|
|
| contact code designation |
A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A
Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A |
|
| [Ithe] conventional enclosed thermal current |
10 A
|
|
| [Ui] rated insulation voltage |
500 V (pollution degree 3) conforming to IEC 60947-1
|
|
| [Uimp] rated impulse withstand voltage |
6 kV conforming to IEC 60947-1
|
|
| contact operation |
Snap action
|
|
| maximum resistance across terminals |
25 MOhm
|
|
| operating force |
7 N push-button
|
|
| short-circuit protection |
10 A fuse protection by cartridge fuse type gG
|
|
| rated operational power in VA |
100 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 48 V 50/60 Hz, load factor = 0.5 (inductive load)
450 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 127 V 50/60 Hz, load factor = 0.5 (inductive load) 50 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 24 V 50/60 Hz, load factor = 0.5 (inductive load) 750 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 230 V 50/60 Hz, load factor = 0.5 (inductive load) |
|
| rated operational power in W |
140 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C
140 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C 95 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C |
|
| terminals description ISO n°1 |
(1-2-3-4)OC
|
|
| terminal identifier |
(11-12)NC
(13-14)NO |
|
| net weight |
1.1 kg
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
1.216 kg
|
|
| Package 1 Height |
10.2 cm
|
|
| Package 1 width |
10.3 cm
|
|
| Package 1 Length |
55 cm
|
| REACh free of SVHC |
Yes
|
|
|---|---|---|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation | ||
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
| Warranty |
18 months
|
|---|
