Min Order Qty 1
Product not available
Ahmedabad, India
Business Operations: Manufacturer, Merchant, Service Provider
Contact us for
| range of product |

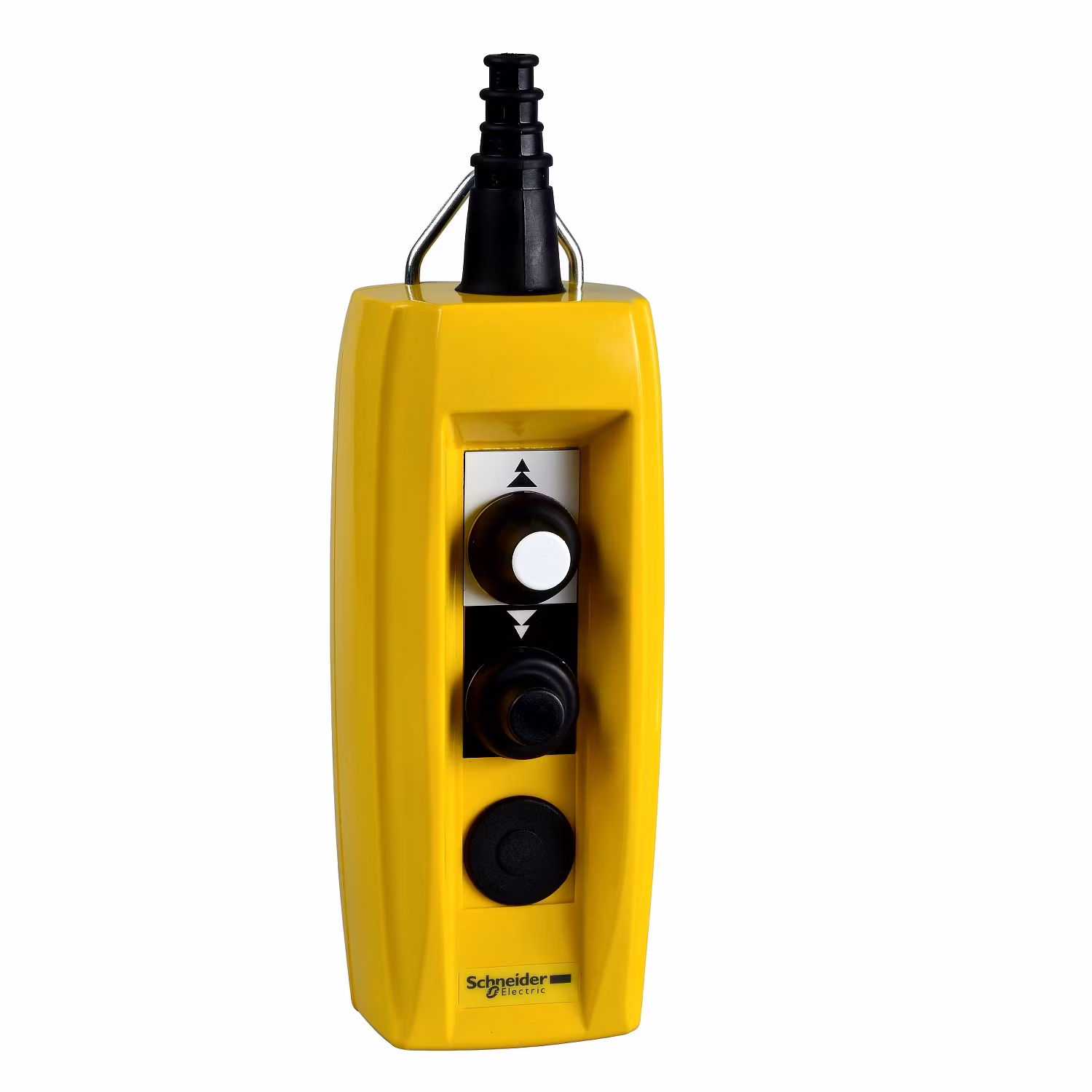

Harmony XAC
|
|
|---|---|---|
| product or component type |
Pendant control station
|
|
| device short name |
XACB
|
| control station type |
Double insulated
|
|
|---|---|---|
| enclosure material |
Glass reinforced polyester
|
|
| electrical circuit type |
Power circuit
|
|
| enclosure type |
Complete ready for use
|
|
| control station application |
Control of 2-speed hoist motor
|
|
| control station composition |
2 push-buttons
|
|
| control button type |
First push-button 2-pole raise, slow-fast
Second push-button 2-pole lower, slow-fast |
|
| product compatibility |
XESD1291 for reversing operation
|
|
| mechanical interlocking |
With mechanical interlocking
|
|
| control station colour |
Yellow
|
|
| connections - terminals |
Screw clamp terminals, 1 x 2.5 mm² with or without cable end
Screw clamp terminals, 2 x 1.5 mm² with or without cable end |
|
| standards |
EN/IEC 60947-5-1
EN/IEC 60204-32 CSA C22.2 No 14 |
|
| product certifications |
CSA type 4
|
|
| protective treatment |
TH
|
|
| ambient air temperature for operation |
-25…70 °C
|
|
| ambient air temperature for storage |
-40…70 °C
|
|
| vibration resistance |
15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
100 gn conforming to IEC 60068-2-27
|
|
| overvoltage category |
Class II conforming to IEC 61140
|
|
| IP degree of protection |
IP65 conforming to IEC 60529
|
|
| mechanical durability |
1000000 cycles
|
|
| cable entry |
Rubber sleeve with stepped entry 10…22 mm
|
|
| [Ithe] conventional enclosed thermal current |
12 A
|
|
| [Ui] rated insulation voltage |
500 V (pollution degree 3) conforming to IEC 60947-1
600 V conforming to CSA |
|
| [Uimp] rated impulse withstand voltage |
6 kV conforming to IEC 60947-1
|
|
| contact operation |
Snap action
|
|
| operating force |
17 N push-button
|
|
| short-circuit protection |
10 A fuse protection by cartridge fuse type aM
|
|
| rated power in hp |
2 hp at 240 V, CSA certified
3 hp at 600 V, CSA certified 5 hp at 400 V, CSA certified |
|
| rated operational power in W |
2200 W AC-3 at 240 V conforming to IEC 60947-3 appendix A
2200 W AC-3 at 400 V conforming to IEC 60947-3 appendix A 2200 W AC-4 at 240 V conforming to IEC 60947-3 appendix A 2200 W AC-4 at 400 V conforming to IEC 60947-3 appendix A |
|
| electrical durability |
300000 cycles AC-3, 2200 W at 240 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A
300000 cycles AC-3, 2200 W at 400 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A 300000 cycles AC-4, 2200 W at 240 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A 300000 cycles AC-4, 2200 W at 400 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A 500000 cycles AC-3, 1500 W at 240 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A 500000 cycles AC-4, 1500 W at 240 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A 800000 cycles AC-3, 1500 W at 400 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A 800000 cycles AC-4, 1500 W at 400 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A |
|
| terminals description ISO n°1 |
(13-14)NO
(33-34)NO (51-52-54)OC (43-44)NO (23-24)NO (61-62-64)OC |
|
| terminal identifier |
(13-14)NO
(11-12)NC |
|
| net weight |
0.405 kg
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
806 g
|
|
| Package 1 Height |
10.5 cm
|
|
| Package 1 width |
11.5 cm
|
|
| Package 1 Length |
26.5 cm
|
|
| Unit Type of Package 2 |
S04
|
|
| Number of Units in Package 2 |
12
|
|
| Package 2 Weight |
10.726 kg
|
|
| Package 2 Height |
30 cm
|
|
| Package 2 width |
40 cm
|
|
| Package 2 Length |
60 cm
|
| REACh Regulation | ||
|---|---|---|
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Toxic heavy metal free |
Yes
|
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation | ||
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
| Warranty |
18 months
|
|---|
