Min Order Qty 1
Product not available
Ahmedabad, India
Business Operations: Manufacturer, Merchant, Service Provider
Contact us for
| range of product |

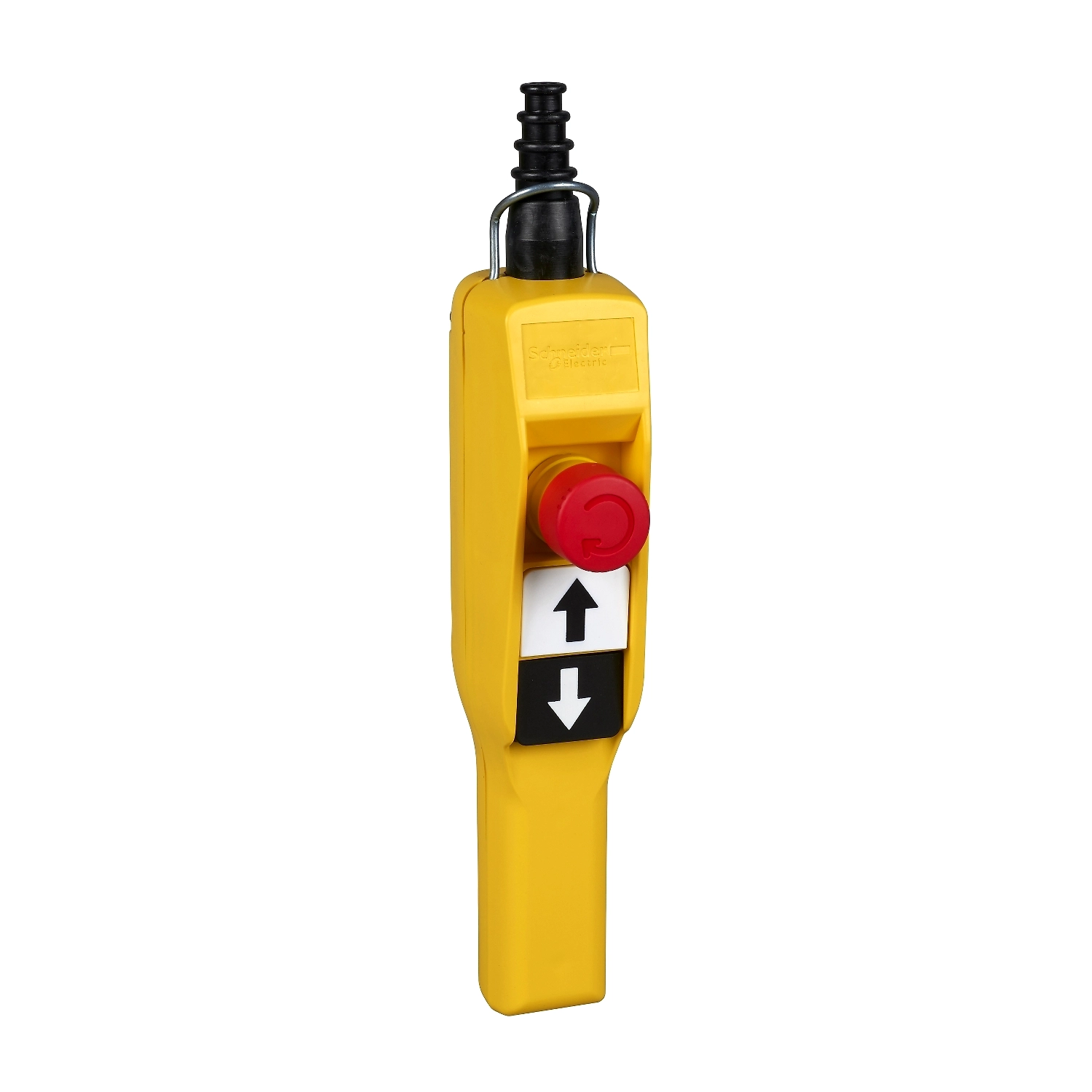

Harmony XAC
|
|
|---|---|---|
| product or component type |
Pendant control station
|
|
| device short name |
XACA pistol grip
|
| control station type |
Double insulated
|
|
|---|---|---|
| enclosure material |
Polypropylene
|
|
| control type |
Intuitive
|
|
| electrical circuit type |
Control circuit
|
|
| enclosure type |
Complete ready for use
|
|
| control station application |
Control of single speed hoist motor
|
|
| control station composition |
2 push-buttons + 1 emergency stop
|
|
| control button type |
Stop push-button Ø 30 mm 1 NC latching
First push-button 2 NO raise, slow Second push-button 2 NO lower, slow |
|
| product compatibility |
ZB2BE101 for each direction
ZB2BE102 for emergency stop |
|
| mechanical interlocking |
With mechanical interlocking
|
|
| control station colour |
Yellow
|
|
| connections - terminals |
Screw clamp terminals, 1 x 2.5 mm² with or without cable end
Screw clamp terminals, 2 x 1.5 mm² with or without cable end |
|
| standards |
UL 508
EN/IEC 60947-5-1 CSA C22.2 No 14 EN/IEC 60204-32 |
|
| product certifications |
CSA
UL |
|
| protective treatment |
TH
|
|
| ambient air temperature for operation |
-25…70 °C
|
|
| ambient air temperature for storage |
-40…70 °C
|
|
| vibration resistance |
15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
100 gn conforming to IEC 60068-2-27
|
|
| overvoltage category |
Class II conforming to IEC 61140
|
|
| IP degree of protection |
IP65 conforming to IEC 60529
|
|
| IK degree of protection |
IK08 conforming to EN 50102
|
|
| mechanical durability |
1000000 cycles
|
|
| cable entry |
Rubber sleeve with stepped entry 7…15 mm
|
|
| contact code designation |
A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A
A600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 60947-5-1 appendix A Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A Q600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 60947-5-1 appendix A |
|
| [Ithe] conventional enclosed thermal current |
10 A
|
|
| [Ui] rated insulation voltage |
600 V (pollution degree 3) conforming to IEC 60947-1
|
|
| [Uimp] rated impulse withstand voltage |
6 kV conforming to IEC 60947-1
|
|
| contact operation |
Slow-break
|
|
| maximum resistance across terminals |
25 MOhm
|
|
| operating force |
13…15 N
|
|
| short-circuit protection |
10 A fuse protection by cartridge fuse type gG
|
|
| rated operational power in W |
40 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C
48 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C 65 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C |
|
| terminal identifier |
(11-12)NC
(13-14)NO |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
360 g
|
|
| Package 1 Height |
8.2 cm
|
|
| Package 1 width |
11.9 cm
|
|
| Package 1 Length |
34.4 cm
|
|
| Unit Type of Package 2 |
S03
|
|
| Number of Units in Package 2 |
15
|
|
| Package 2 Weight |
5.924 kg
|
|
| Package 2 Height |
30 cm
|
|
| Package 2 width |
30 cm
|
|
| Package 2 Length |
40 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation | ||
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Toxic heavy metal free |
Yes
|
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
| Warranty |
18 months
|
|---|
