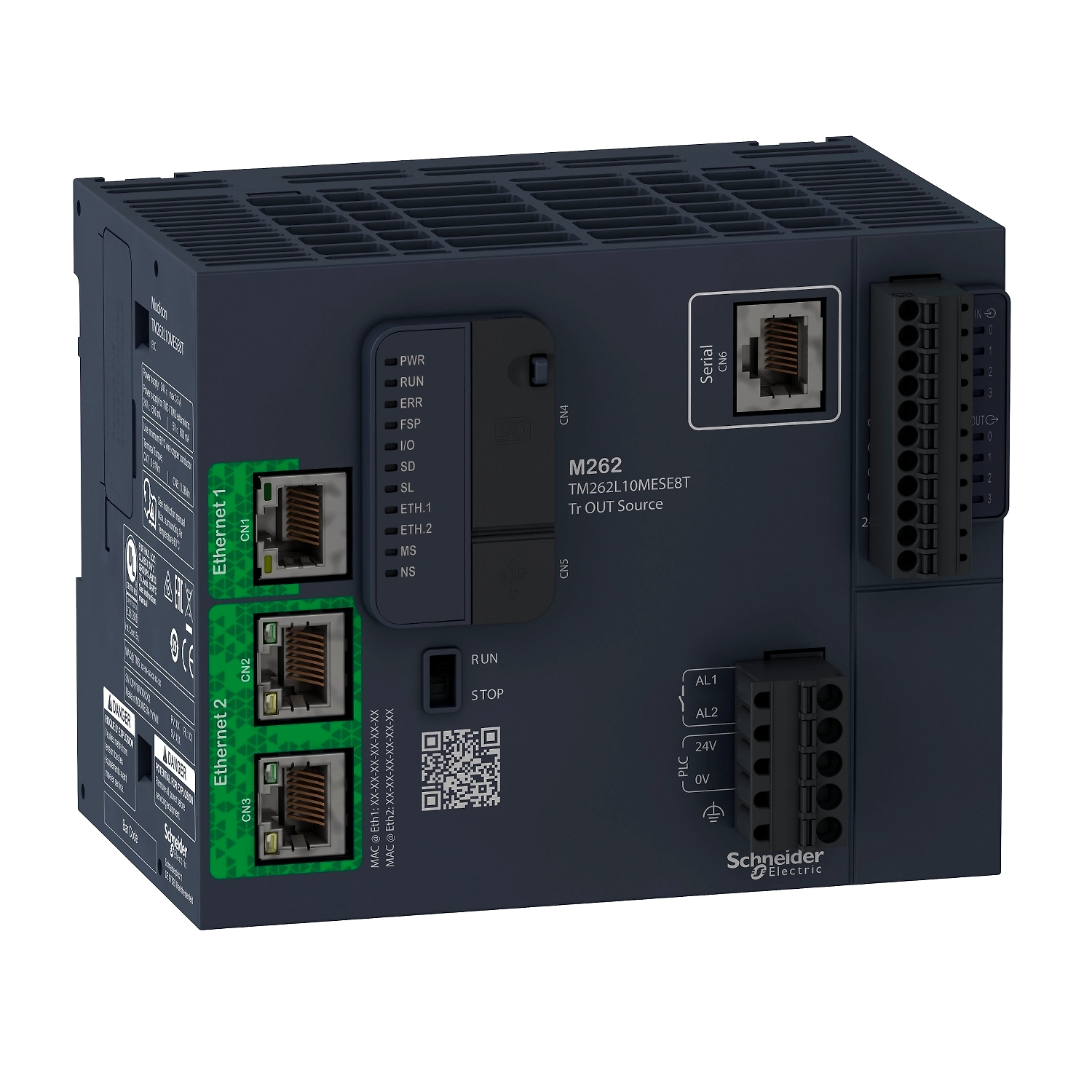

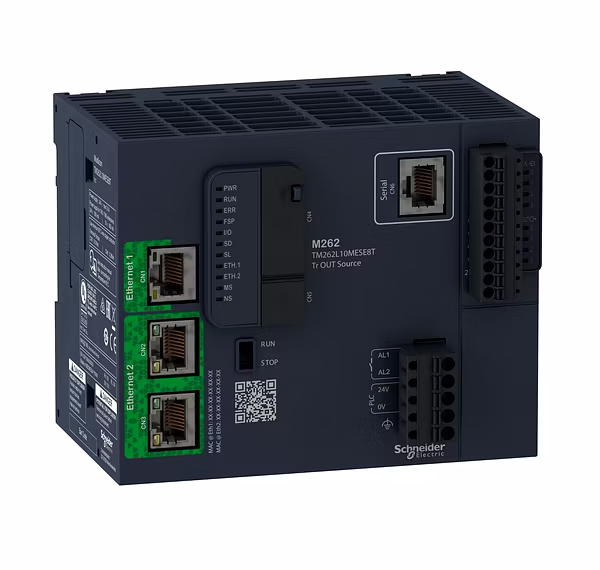

Logic/motion controller - Modicon M262

Logic controller

24 V DC - 15...20 %

4, discrete input fast input conforming to IEC 61131-2 Type 1

Transistor

4 transistor fast output

24 V DC

8

Ethernet IP/Modbus TCP
Serial link
Modbus RTU and ASCII
HTTP
HTTPS

With

0.5 A for transistor output (Q0...Q3)
0.5 A for fast output (Q0...Q3)

7 (remote)
7 (local)

20.4…28.8 V DC

40 A

82 W

Sink or source

24 V

DC

>= 15 V for DC

<= 5 V for DC

7.5 mA for input
7.5 mA for fast input

2.81 kOhm for input

<= 1 µs turn-on, I0...I3 terminal(s) for fast input
<= 1 µs turn-off, I0...I3 terminal(s) for fast input
<= 1 µs turn-on, Q0...Q3 terminal(s) for fast output
<= 1 µs turn-off, Q0...Q3 terminal(s) for fast output

0.5 ms for fast input
0.01 ms for fast input
0.002 ms for fast input
1 ms for fast input
4 ms for fast input
0.1 ms for fast input
0.05 ms for fast input
0.005 ms for fast input
0.001 ms for fast input
12 ms for fast input

Source

30 V DC

0.5 A with Q0...Q3 for fast output

300 kHz

+/- 0.1 % at 0.02…0.1 kHz for fast output
+/- 1 % at 0.1…1 kHz for fast output

10 µA for output

<1.5 W

Short-circuit and overload protection with automatic reset
Reverse polarity protection
Short-circuit protection

200 ms automatic reset fast output

32 MB for program RAM
32 MB for OS/website RAM
192 MB for system memory RAM

1 GB built-in flash memory for backup of user programs

<= 32 GB SDHC card (optional)

1000 h at 25 °C

0.005 ms

8 event tasks
4 cyclic master tasks
3 cyclic master tasks + 1 freewheeling task
8 external event tasks

With

<= 10 s/month
<= 10 s/month at 25 °C

Libraries axes coordinated function

USB type mini B
EtherNet port1 Ethernet 1 with RJ45 connector
EtherNet port2 / switch Ethernet 2 with 2 RJ45 connector
Serial link with RJ45 connector

115 kbit/s for RS485
115 kbit/s for bus length of 15 m for RS485
115 kbit/s for bus length of 3 m for RS232
480 Mbit/s for bus length of 3 m for USB
10/100 Mbit/s for Ethernet1
115 kbit/s for RS232
1 Gbit/s for Ethernet2
480 Mbit/s for USB
10/100 Mbit/s
1 Gbit/s

Ethernet/IP adapter
DHCP client
IEC VAR ACCESS
Modbus TCP client
Modbus TCP server
SNMP client/server
FTP client/server
SQL client
Send and receive email from the controller based on TCP/UDP library
Web server
OPC UA server
DNS client
Web visu
Ethernet RSTP
MQTT

1 LED (green/red)PWR:
1 LED (green/red)RUN:
1 LED (green/red)ERROR (fault):
1 LED (green/red)stop forced:
1 LED (green/red)I/O error (I/O):
1 LED (green/orange)Sd card activity:
1 LED (green/orange)SL activity:
1 LED (green/red)ETH1 state:
1 LED (green/red)ETH2 state:
1 LED (green/red)EIP MS:
1 LED (green/red)EIP NS:

removable spring terminal block
removable spring terminal blockfor connecting the 24 V DC power supply

Shielded cable: <3 m for fast input
Shielded cable: <3 m for fast output
Unshielded cable: <50 m for input
Unshielded cable: <50 m for output

Between fast input and internal logic at 550 V AC
Non-insulated between inputs
Between output and internal logic at 500 V AC
Between fast output and internal logic at 500 V AC
Non-insulated between outputs
Between input and output at 500 V AC
Between supply and internal logic at 500 V AC
Non-insulated between supply and ground

1 kV power lines (DC) common mode conforming to EN/IEC 61000-4-5
1 kV shielded cable common mode conforming to EN/IEC 61000-4-5
0.5 kV relay output differential mode conforming to EN/IEC 61000-4-5
1 kV input common mode conforming to EN/IEC 61000-4-5
1 kV transistor output common mode conforming to EN/IEC 61000-4-5

64 Ethernet/IP device
64 Modbus TCP device
96

Top hat type TH35-15 rail conforming to IEC 60715
Top hat type TH35-7.5 rail conforming to IEC 60715
plate or panel with fixing kit

100 mm

90 mm

125 mm

0.655 kg

UL 61010-1
UL 61010-2-201
CSA C22.2 No 61010-1
CSA C22.2 No 61010-2-201
CSA C22.2 No 213
ANSI/ISA 12-12-01
EN 61131-2

CE
CULus
RCM
EAC
Achilles

4 kV on contact conforming to EN/IEC 61000-4-2
8 kV on air conforming to EN/IEC 61000-4-2

10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3
3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3
1 V/m 2 GHz...3 GHz conforming to EN/IEC 61000-4-3

2 kV (power lines) conforming to EN/IEC 61000-4-4
1 kV (Ethernet line) conforming to EN/IEC 61000-4-4
1 kV (serial link) conforming to EN/IEC 61000-4-4
1 kV (input) conforming to EN/IEC 61000-4-4
1 kV (transistor output) conforming to EN/IEC 61000-4-4

10 V 0.15...80 MHz conforming to EN/IEC 61000-4-4
3 V 0.1...80 MHz
10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz)

Conducted emissions - test level: 120...69 dBµV/m QP ( power lines) at 10…150 kHz conforming to EN/IEC 55011
Conducted emissions - test level: 63 dBμV/m QP ( power lines) at 1.5…30 MHz conforming to EN/IEC 55011
Radiated emissions - test level: 40 dBµV/m at 30…230 kHz conforming to EN/IEC 55011
Conducted emissions - test level: 79...63 dBμV/m QP ( power lines) at 150…1500 kHz conforming to EN/IEC 55011
Radiated emissions at 230…1000 MHz conforming to EN/IEC 55011

0.01 ms

-20…60 °C (horizontal installation)
-20…50 °C (vertical installation)
-20…45 °C (flat mounting)

-40…85 °C

10…95 %, without condensation (in operation)
10…95 %, without condensation (in storage)

IP20

2

0...2000 m

0…3000 m

3.5 mm at 2…8.4 Hz on symmetrical rail
1 gn at 8.4…200 Hz on symmetrical rail
3.5 mm at 2…8.4 Hz on panel mounting
1 gn at 8.4…200 Hz on panel mounting

15 gn for 11 ms

0.600 kg

1.000 dm

0.900 dm

1.250 dm

Green Premium product

Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration

Yes

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Yes
