Min Order Qty 1
Product not available
Ahmedabad, India
Business Operations: Manufacturer, Merchant, Service Provider
Contact us for
| range of product |

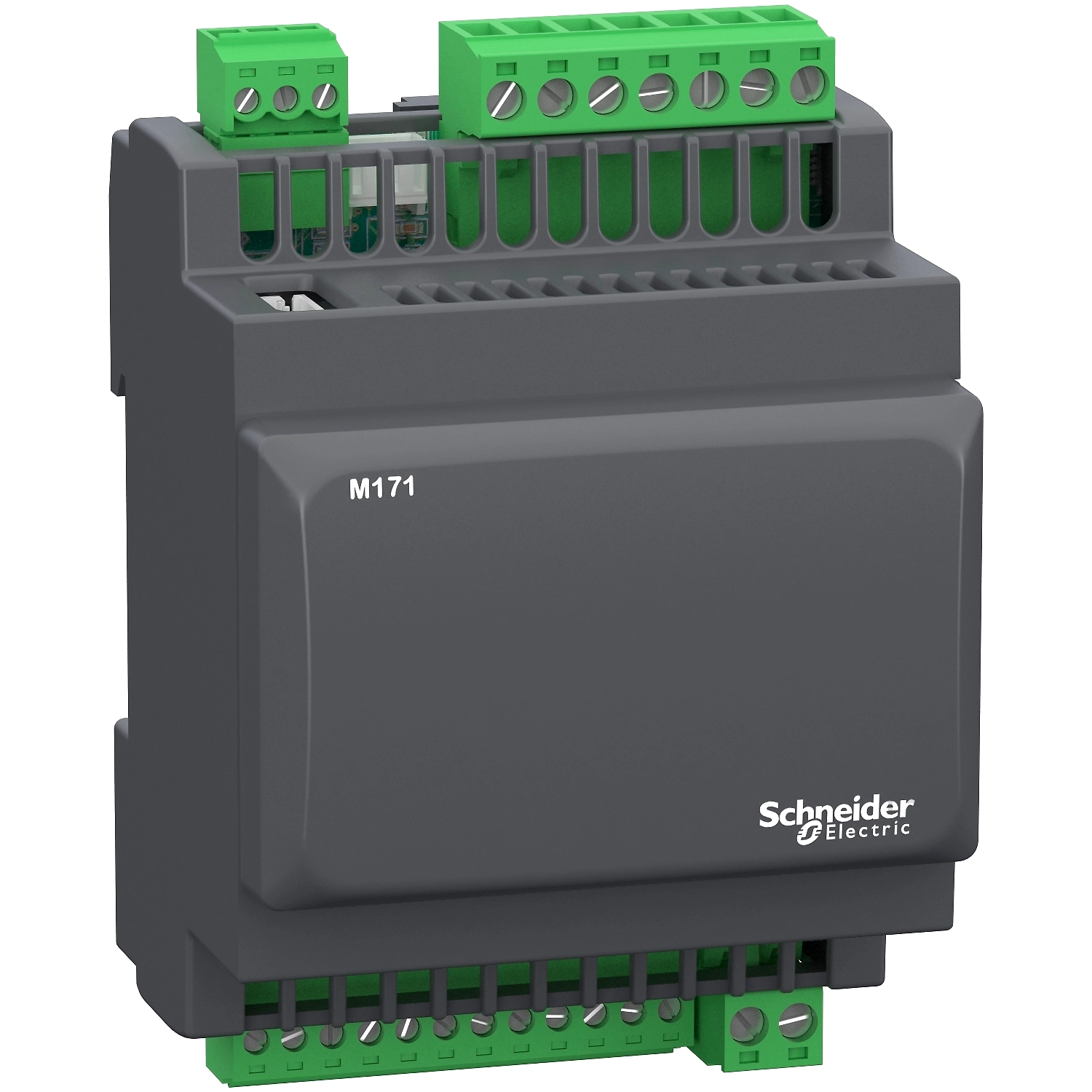

Modicon M171/M172
|
|
|---|---|---|
| product or component type |
Controller
|
|
| product specific application |
HVAC and pumping solution
|
|
| variant |
Programmable
|
|
| Total inputs/outputs |
14
|
|
| discrete input number |
2
|
|
| discrete output number |
1 for relay outputs SPDT with independent common
3 for relay outputs SPST with same common |
|
| discrete output current |
2 A for relay
|
|
| analogue input number |
2 configurable
3 analog input NTC |
|
| analogue output number |
2 voltage, range: 0...10 V
2 PWM/PPM, range: 20 kHz, 12 V, 35 mA 1 voltage/current, range: 0...20 mA/4...20 mA |
| number of port |
1 LAN expansion bus
1 RS485 - screw terminal block (Modbus serial link) |
|
|---|---|---|
| input/output number |
5 analog output(s)
4 digital output(s) 5 analog input(s) |
|
| discrete input logic |
Sink or source (positive/negative)
|
|
| contacts usage |
Volt-free contacts
|
|
| analogue input type |
voltage 0...5 V (ratiometric)
voltage 0...10 V NTC temperature probe - 50...100 °C - resolution: 0.1 °C Pt 1000 temperature probe - 50...400 °C - resolution: 0.1 °C current 0...20 mA/4...20 mA voltage 0...1 V |
|
| sensor power supply |
12 V DC at 85 mA
5 V DC at 20 mA |
|
| [Us] rated supply voltage |
100...240 V +/- 10 % AC
|
|
| realtime clock |
Built-in clock at -20…55 °C
|
|
| display type |
Four 7-segment display units
|
|
| overvoltage category |
II
|
|
| local signalling |
6 LEDs (red)
5 LEDs (green) 7 LEDs (amber)programmable: |
|
| mounting support |
DIN rail
|
|
| width |
70.2 mm
|
|
| height |
87 mm
|
|
| depth |
61.7 mm
|
|
| net weight |
0.19 kg
|
| directives |
1907/2006/EC - REACH directive
86/188/EEC - physical agents (noise) directive 2011/65/EU - RoHS directive 2006/95/EC - low voltage directive |
|
|---|---|---|
| standards |
EN/IEC 60730
|
|
| product certifications |
CE
EAC CSA CURus |
|
| ambient air temperature for operation |
-20…55 °C conforming to UL 60730-1
|
|
| ambient air temperature for storage |
-40…85 °C
|
|
| relative humidity |
10…90 % non-condensing
|
|
| IP degree of protection |
IP20
|
|
| pollution degree |
2
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
293 g
|
|
| Package 1 Height |
13.2 cm
|
|
| Package 1 width |
9 cm
|
|
| Package 1 Length |
18.5 cm
|
|
| Unit Type of Package 2 |
S02
|
|
| Number of Units in Package 2 |
6
|
|
| Package 2 Weight |
2.049 kg
|
|
| Package 2 Height |
15 cm
|
|
| Package 2 width |
30 cm
|
|
| Package 2 Length |
40 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| Circularity Profile | ||
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
