TM171OD14R

Price on Request

Min Order Qty 1

  • Product not available

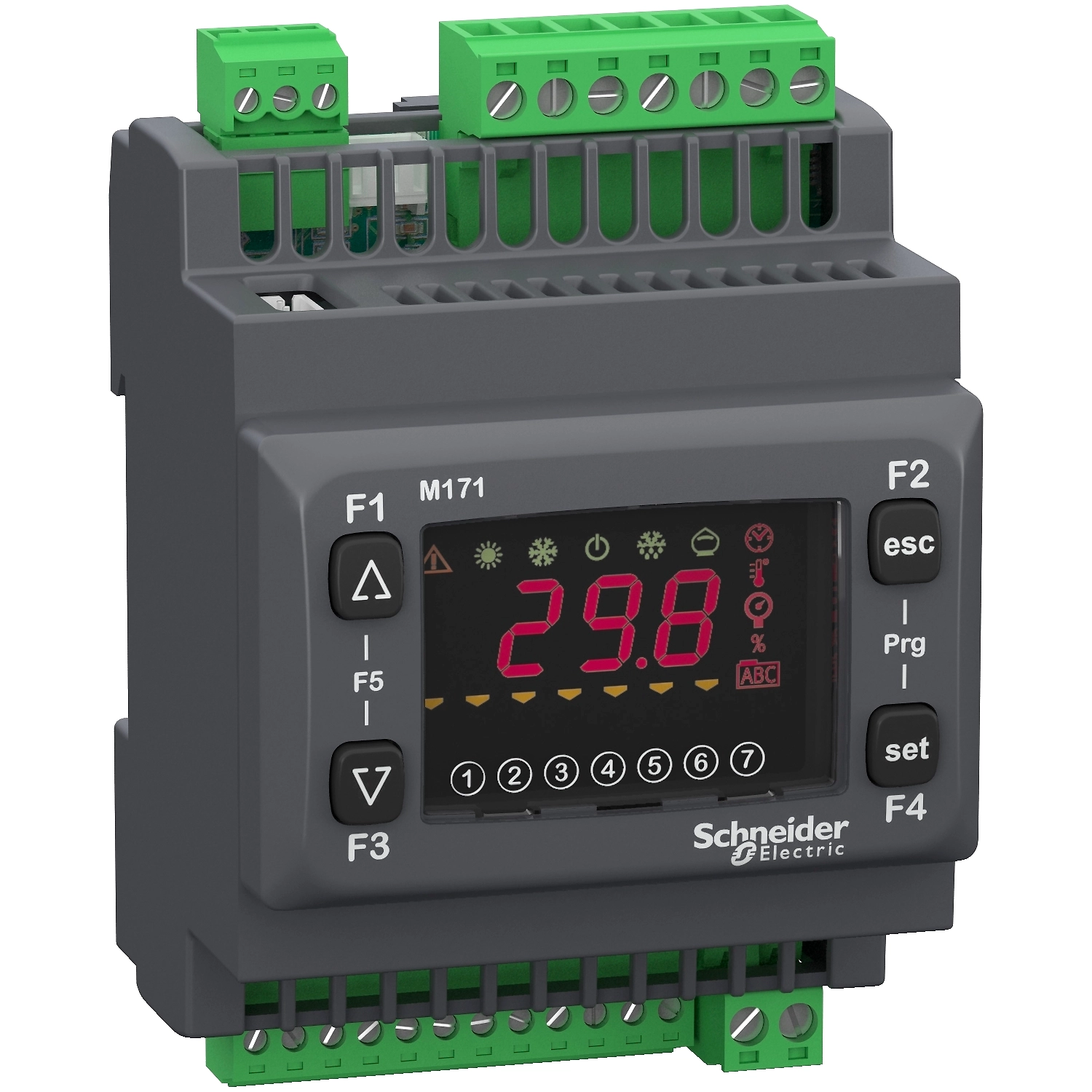

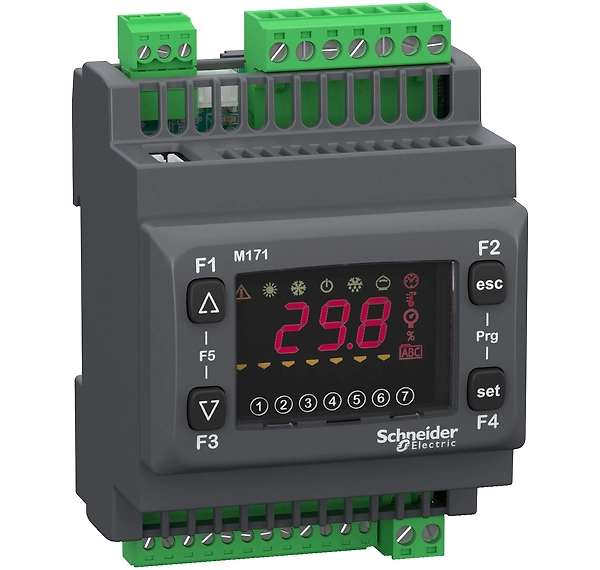

Modicon M171 Optimized Display 14 I/Os, 100-240Vac

MAVEN AUTOMATION

Ahmedabad, India

Business Operations: Manufacturer, Merchant, Service Provider

Contact Seller

Contact us for


By clicking on ‘Send Trade Enquiry’, you agree to our terms & condition and user policies

Main
range of product
Modicon M171/M172

product or component type
Controller

product specific application
HVAC and pumping solution

variant
Programmable

Total inputs/outputs
14

discrete input number
2

discrete output number
3 for relay outputs SPST with same common
1 for relay outputs SPDT with same common

discrete output current
2 A for relay

analogue input number
2 configurable
3 analog input NTC

analogue output number
2 voltage, range: 0...10 V
2 PWM/PPM, range: 20 kHz, 12 V, 35 mA
1 current, range: 0...20 mA/4...20 mA

Complementary
number of port
1 LAN expansion bus

input/output number
5 analog output(s)
4 digital output(s)
5 analog input(s)

discrete input logic
Sink or source (positive/negative)

contacts usage
Volt-free contacts

analogue input type
voltage 0...5 V (ratiometric)
voltage 0...10 V
NTC temperature probe - 50...100 °C - resolution: 0.1 °C
Pt 1000 temperature probe - 50...400 °C - resolution: 0.1 °C
current 0...20 mA/4...20 mA
voltage 0...1 V

sensor power supply
12 V DC at 85 mA

[Us] rated supply voltage
100...240 V

width
70.2 mm

height
87 mm

depth
61.6 mm

net weight
0.19 kg

Packing Units
Unit Type of Package 1
PCE

Number of Units in Package 1
1

Package 1 Weight
290 g

Package 1 Height
9 cm

Package 1 width
13 cm

Package 1 Length
18.5 cm

Unit Type of Package 2
S02

Number of Units in Package 2
6

Package 2 Weight
2.004 kg

Package 2 Height
15 cm

Package 2 width
30 cm

Package 2 Length
40 cm

Offer Sustainability
Sustainable offer status
Green Premium product

REACh free of SVHC
Yes

EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration

Mercury free
Yes

RoHS exemption information
China RoHS Regulation
Environmental Disclosure
Circularity Profile
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
