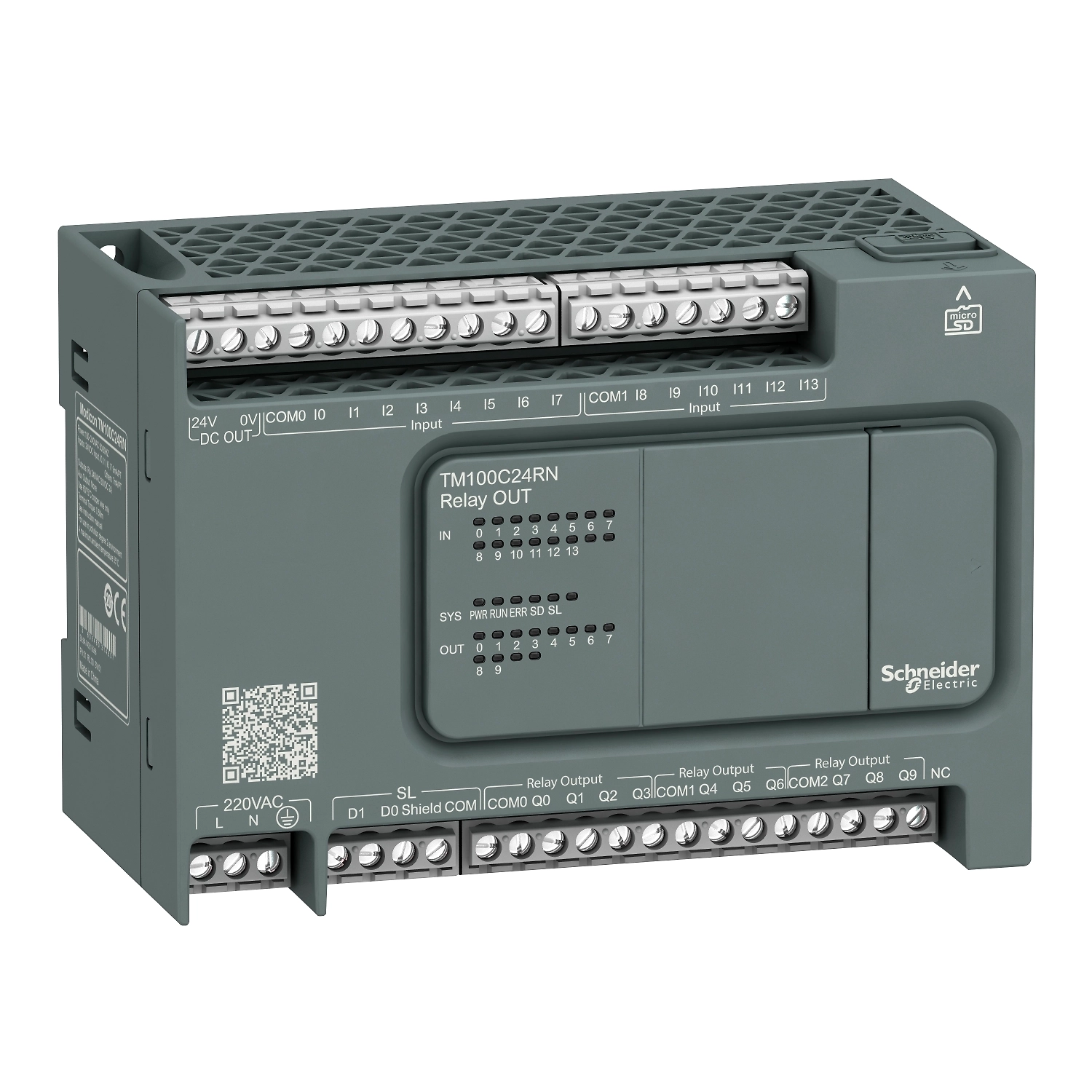

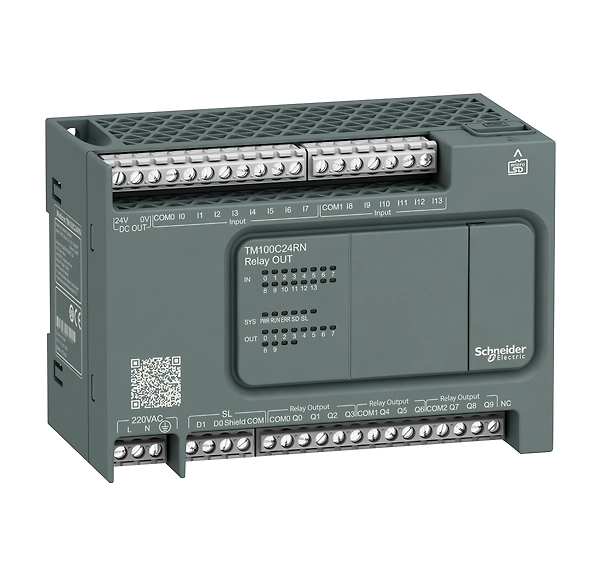

Easy Modicon M100

Logic controller

100...240 V AC

24

I2...I5: 4 fast input
I0...I1: 2 high speed input
I6...I13: 8 regular input

10 relay

24 V

DC

7 mA for regular input
7 mA for fast input
9 mA for high speed input

24 V DC
220 V AC

2 A

Relay normally open

31…43 VA at 100...240 V AC (with max I/O)

85…264 V

>= 15 V for input

<= 5 V for input

50/60 Hz

50 A

3.3 kOhm for regular input
3.3 kOhm for fast input
2.81 kOhm for high speed input

35 µs turn-on, I2...I5 terminal(s) for fast input
100 µs turn-off, I2...I5 terminal(s) for fast input
5 µs turn-on, I0...I1 terminal(s) for high speed input
5 µs turn-off, I0...I1 terminal(s) for high speed input
10 ms turn-on, Q0...Q9 terminal(s) for relay output
10 ms turn-off, Q0...Q9 terminal(s) for relay output
35 µs turn-on, I6...I13 terminal(s) for regular input
100 µs turn-off, I6...I13 terminal(s) for regular input

0 ms for input
3 ms for input
12 ms for input

30 V DC
250 V AC

4 A at COM 0
4 A at COM 1
4 A at COM 2

100000 cycles AC-12, 240 V, 480 VA, resistive
100000 cycles DC-12, 24 V, 48 W, resistive

0.1 Hz with maximum load
5 Hz without maximum load

20000000 cycles for relay output

10 mA at 5 V DC for relay output

512 kB internal flash with 10000 instructions for backup of programs

32 GB micro SD card (optional)

0.3 ms for event and periodic task

0.2 µs Boolean

60 µs response time

Adjustable PID regulator up to 14 simultaneous loops

Quadrature (x1, x2, x4) at 60 kHz for fast input (HSC mode)
Pulse/direction at 60 kHz for fast input (HSC mode)
Single phase at 60 kHz for fast input (HSC mode)
CW/CCW at 60 kHz for fast input (HSC mode)

2 fast input (HSC mode) at 60 kHz 32 bits

USB port with mini B USB 2.0 connector
Non isolated serial link serial 1 with terminal block connector and RS485 interface
Non isolated serial link serial 2 with terminal block connector and RS232/RS485 interface

1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15 m for RS485
1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3 m for RS232
12 Mbit/s for USB

USB port: USB - SoMachine-Network
Non isolated serial link: Modbus master/slave - RTU/ASCII or SoMachine-Network

1 LED (green)PWR:
1 LED (green)RUN:
1 LED (red)module error (ERR):
1 LED (green)SD card access (SD):
1 LED (green)SL1:
1 LED per channel (green)I/O state:

fixed screw terminal blockfor inputs
fixed screw terminal blockfor outputs
fixed screw terminal block, 4 terminal(s) for connecting the serial link1
Mini B USB 2.0 connectorfor a programming terminal
fixed screw terminal block, 3 terminal(s) for connecting the 100-240 V AC power supply

Shielded cable: <10 m for fast input
Shielded cable: <10 m for high speed input
Unshielded cable: <150 m for output
Unshielded cable: <50 m for regular input

Between input and internal logic at 560 V AC
Between fast input and internal logic at 560 V AC
Between input groups at 560 V AC
Non-insulated between inputs
Between output and internal logic at 1780 V AC
Between output groups at 1780 V AC
Between supply and internal logic at 1780 V AC

24 V DC

Top hat type TH35-15 rail conforming to IEC 60715
Top hat type TH35-7.5 plate or panel with fixing kit conforming to IEC 60715

90 mm

70 mm

130 mm

0.351 kg

IP20 with protective cover in place

CE

EN/IEC 61010-2-201
EN/IEC 61131-2

Electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to EN/IEC 61000-4-2
Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to EN/IEC 61000-4-2
Susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz...3 GHz) conforming to EN/IEC 61000-4-3
Conducted emission - test level: 79 dBμV/m QP/66 dBμV/m AV (power lines (AC)) conforming to EN/IEC 55011
Conducted emission - test level: 73 dBμV/m QP/60 dBμV/m AV (power lines (AC)) conforming to EN/IEC 55011
Radiated emission - test level: 40 dBμV/m QP class A (10 m) conforming to EN/IEC 55011
Radiated emission - test level: 47 dBμV/m QP class A (10 m) conforming to EN/IEC 55011
Magnetic field at power frequency - test level: 30 A/m conforming to EN/IEC 61000-4-8
Electrical fast transient/burst immunity test - test level: 2 kV (power lines) conforming to EN/IEC 61000-4-4
Electrical fast transient/burst immunity test - test level: 2 kV (relay output) conforming to EN/IEC 61000-4-4
Electrical fast transient/burst immunity test - test level: 1 kV (I/O) conforming to EN/IEC 61000-4-4
Electrical fast transient/burst immunity test - test level: 1 kV (serial link) conforming to EN/IEC 61000-4-4
1.2/50 µs shock waves immunity test - test level: 1 kV (power lines (DC)) conforming to EN/IEC 61000-4-5
1.2/50 µs shock waves immunity test - test level: 2 kV (power lines (AC)) conforming to EN/IEC 61000-4-5
1.2/50 µs shock waves immunity test - test level: 2 kV (relay output) conforming to EN/IEC 61000-4-5
1.2/50 µs shock waves immunity test - test level: 1 kV (I/O) conforming to EN/IEC 61000-4-5
1.2/50 µs shock waves immunity test - test level: 1 kV (shielded cable) conforming to EN/IEC 61000-4-5
1.2/50 µs shock waves immunity test - test level: 0.5 kV (power lines (DC)) conforming to EN/IEC 61000-4-5
1.2/50 µs shock waves immunity test - test level: 1 kV (power lines (AC)) conforming to EN/IEC 61000-4-5
1.2/50 µs shock waves immunity test - test level: 1 kV (relay output) conforming to EN/IEC 61000-4-5
Conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to EN/IEC 61000-4-6

15 gn for 11 ms
30 gn for 6 ms

10 ms

3.5 mm at 5…8.4 Hz on symmetrical rail
1 gn at 8.4…150 Hz on symmetrical rail
3.5 mm at 5…8.4 Hz on panel mounting
3 gn at 8.4…150 Hz on panel mounting

10…95 %, without condensation (in operation)
10…95 %, without condensation (in storage)

0…55 °C (horizontal installation)

-25…70 °C

<= 2

0...2000 m

0…3000 m

0.410 kg

7.000 cm

9.000 cm

13.000 cm

Green Premium product

Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration

Yes

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
