Min Order Qty 1
Product not available
Ahmedabad, India
Business Operations: Manufacturer, Merchant, Service Provider
Contact us for
| range of product |

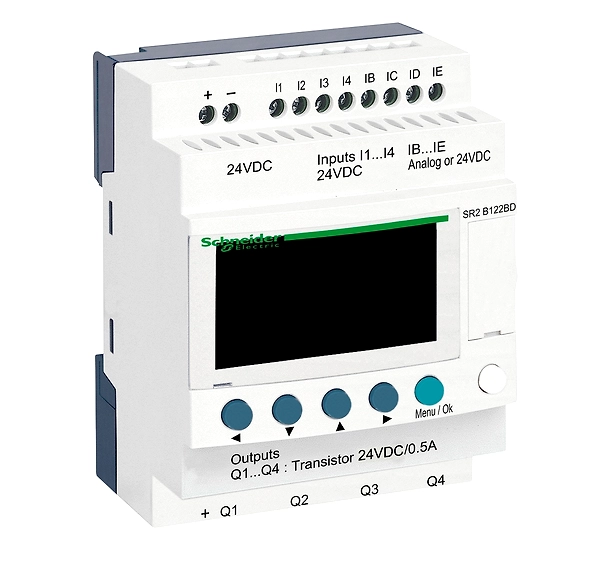

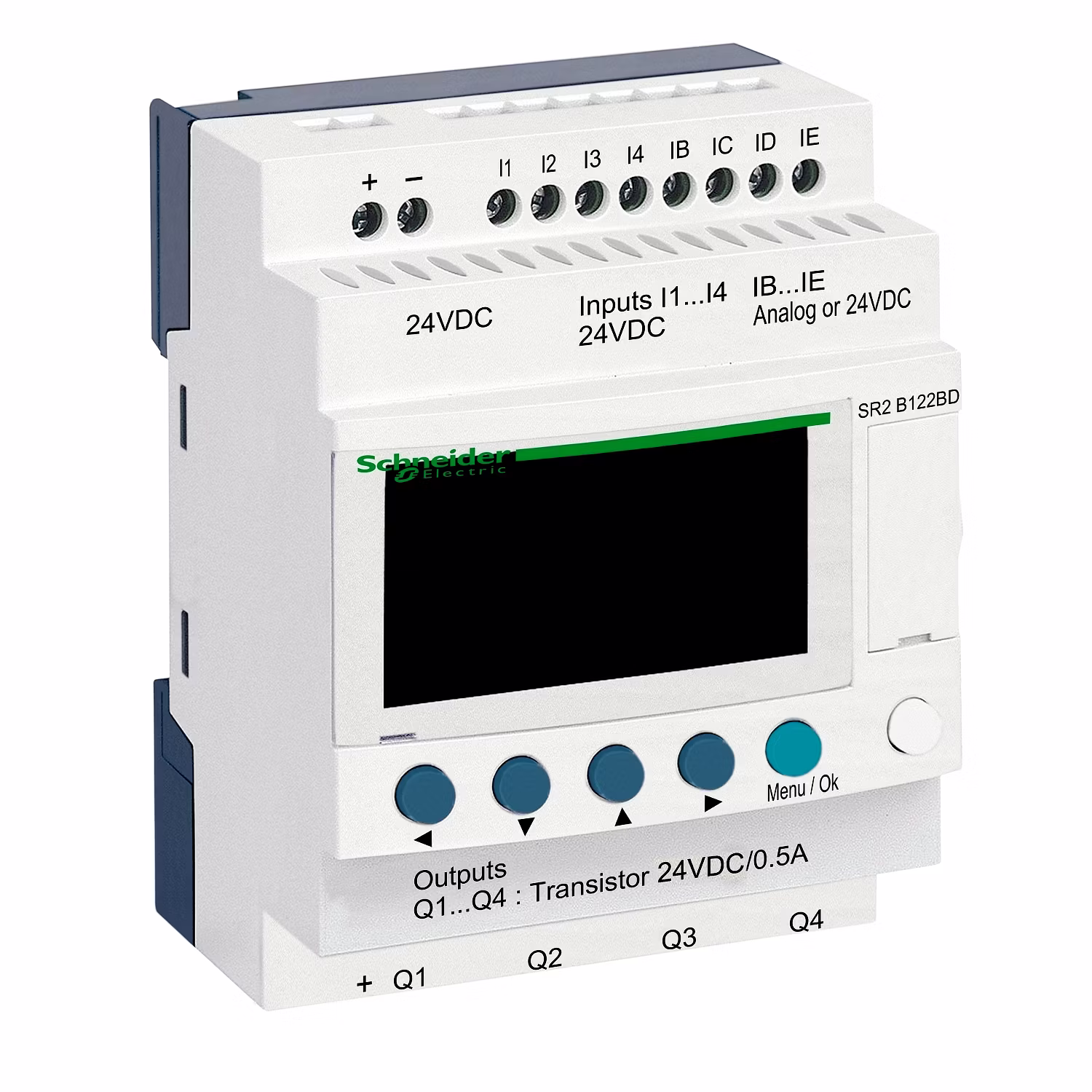

Zelio Logic
|
|
|---|---|---|
| product or component type |
Compact smart relay
|
| local display |
With
|
|
|---|---|---|
| number or control scheme lines |
0…240 with ladder programming
0…500 with FBD programming |
|
| cycle time |
6…90 ms
|
|
| backup time |
10 years at 25 °C
|
|
| clock drift |
12 min/year at 0…55 °C
6 s/month at 25 °C |
|
| checks |
Program memory on each power up
|
|
| [Us] rated supply voltage |
24 V DC
|
|
| supply voltage limits |
19.2…30 V
|
|
| maximum supply current |
100 mA (without extension)
|
|
| power dissipation in W |
3 W without extension
|
|
| reverse polarity protection |
With
|
|
| discrete input number |
8 conforming to EN/IEC 61131-2 type 1
|
|
| discrete input type |
Resistive
|
|
| discrete input voltage |
24 V DC
|
|
| discrete input current |
4 mA
|
|
| counting frequency |
1 kHz for discrete input
|
|
| voltage state 1 guaranteed |
>= 15 V for I1...IA and IH...IR discrete input circuit
>= 15 V for IB...IG used as discrete input circuit |
|
| voltage state 0 guaranteed |
<= 5 V for I1...IA and IH...IR discrete input circuit
<= 5 V for IB...IG used as discrete input circuit |
|
| current state 1 guaranteed |
>= 1.2 mA (IB...IG used as discrete input circuit)
>= 2.2 mA (I1...IA and IH...IR discrete input circuit) |
|
| current state 0 guaranteed |
<= 0.75 mA (I1...IA and IH...IR discrete input circuit)
|
|
| input compatibility |
3-wire proximity sensors PNP for discrete input
|
|
| analogue input number |
4
|
|
| analogue input type |
Common mode
|
|
| analogue input range |
0...24 V
0...10 V |
|
| maximum permissible voltage |
30 V for analogue input circuit
|
|
| analogue input resolution |
8 bits
|
|
| LSB value |
39 mV for analogue input circuit
|
|
| conversion time |
Smart relay cycle time for analogue input circuit
|
|
| conversion error |
+/- 5 % at 25 °C for analogue input circuit
+/- 6.2 % at 55 °C for analogue input circuit |
|
| repeat accuracy |
+/- 2 % at 55 °C for analogue input circuit
|
|
| operating distance |
10 m between stations, with screened cable (sensor not isolated) for analogue input circuit
|
|
| input impedance |
12 kOhm for IB...IG used as analogue input circuit
12 kOhm for IB...IG used as discrete input circuit 7.4 kOhm for I1...IA and IH...IR discrete input circuit |
|
| number of outputs |
4 transistor
|
|
| output voltage |
24 V transistor output
|
|
| output voltage limits |
19.2...30 V DC (transistor output)
|
|
| load current |
0.5…0.625 A transistor output
|
|
| [Ures] residual voltage |
2 V at state 1 transistor output
|
|
| overload protection |
With overload protection for transistor output
|
|
| short-circuit protection |
With transistor output
|
|
| overvoltage protection |
With overvoltage protection for transistor output
|
|
| clock |
With
|
|
| response time |
<= 1 ms (from state 0 to state 1) for transistor output
<= 1 ms (from state 1 to state 0) for transistor output |
|
| connections - terminals |
Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) semi-solid
Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) solid Screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end Screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) solid Screw terminals, 2 x 0.25...2 x 0.75 mm² (AWG 24...AWG 18) flexible with cable end |
|
| tightening torque |
0.5 N.m
|
|
| overvoltage category |
III conforming to EN/IEC 60664-1
|
|
| net weight |
0.22 kg
|
| immunity to microbreaks |
1 ms
|
|
|---|---|---|
| product certifications |
C-Tick
UL GL CSA GOST |
|
| standards |
EN/IEC 60068-2-6 Fc
EN/IEC 61000-4-12 EN/IEC 60068-2-27 Ea EN/IEC 61000-4-6 level 3 EN/IEC 61000-4-4 level 3 EN/IEC 61000-4-5 EN/IEC 61000-4-11 EN/IEC 61000-4-3 EN/IEC 61000-4-2 level 3 |
|
| IP degree of protection |
IP20 (terminal block) conforming to IEC 60529
IP40 (front panel) conforming to IEC 60529 |
|
| environmental characteristic |
EMC directive conforming to EN/IEC 61000-6-2
EMC directive conforming to EN/IEC 61000-6-3 EMC directive conforming to EN/IEC 61000-6-4 EMC directive conforming to EN/IEC 61131-2 zone B Low voltage directive conforming to EN/IEC 61131-2 |
|
| disturbance radiated/conducted |
Class B conforming to EN 55022-11 group 1
|
|
| pollution degree |
2 conforming to EN/IEC 61131-2
|
|
| ambient air temperature for operation |
-20…40 °C in non-ventilated enclosure conforming to IEC 60068-2-1 and IEC 60068-2-2
-20…55 °C conforming to IEC 60068-2-1 and IEC 60068-2-2 |
|
| ambient air temperature for storage |
-40…70 °C
|
|
| operating altitude |
2000 m
|
|
| maximum altitude transport |
3048 m
|
|
| relative humidity |
95 % without condensation or dripping water
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
206 g
|
|
| Package 1 Height |
6.5 cm
|
|
| Package 1 width |
8.8 cm
|
|
| Package 1 Length |
10 cm
|
|
| Unit Type of Package 2 |
S03
|
|
| Number of Units in Package 2 |
30
|
|
| Package 2 Weight |
6.836 kg
|
|
| Package 2 Height |
30 cm
|
|
| Package 2 width |
30 cm
|
|
| Package 2 Length |
40 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| Circularity Profile | ||
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
|
| PVC free |
Yes
|
| Warranty |
18 months
|
|---|
