The Passive Infrared Detector is an energy saving Auto Switch. It turns ON when a person enters the

detection field and turns OFF when the person leaves. The unit is designed with adjustable light

threshold sensors & time delay cycles. Equipped with micro controller chip, this device is designed to save

electrical energy and reduce electrical bills.

Passive Infrared Detector - 1M (101210)

SMART SWITCHES

Technical Characteristics

S W I T C H E S & S Y S T E M S

Instruction Sheet

ILLUMINATING IDEAS

101210

Clock wise

Anti- Clock wise

Light

Settings Time Delay Settings

Max

Max

Middle

Min

Min

Day Light

Twilight

Night

Max Min

5 min +_ 30 seconds

9 sec +_ 10 seconds

Smart Passive Infrared Detector - 2M (102212)

This infrared device is a new generation smart motion sensor switch with adjustable light threshold sensors

& time delay cycles. This unit is designed with selectable ON, OFF & Auto Function switch. Equipped with

micro controller chip, this device is designed to be used as an energy-saving switch.

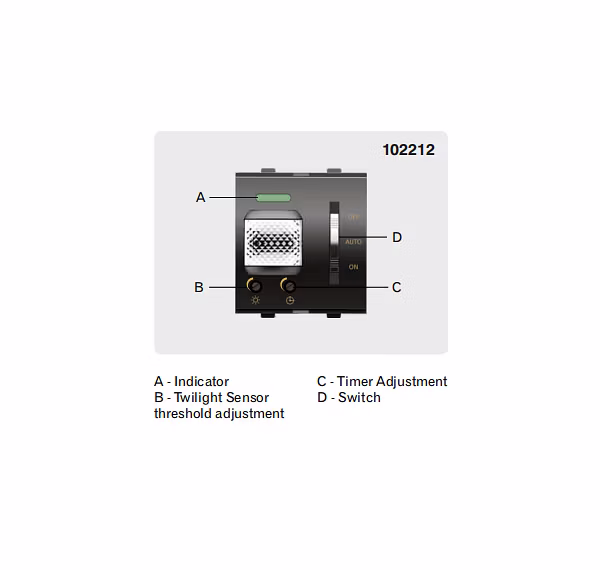

102212

A

B

B

C

C

D

A - Indicator

B - Twilight Sensor

threshold adjustment

C - Timer Adjustment

D - Switch

Operations

Light Settings

The Passive Infrared Detector and Smart Passive Infrared Detector both have settings for light detection and time delays. The light detection option

allows you to decide the light intensity at which the associated device should be switched ON. If you move the Light Setting dial to its maximum

position in a clock-wise manner, the device will get activated only when it detects movement when there is daylight. It will also switch on during

Twilight and Dark conditions. If you keep the Light Setting dial at the center, the device will get activated only when it detects the presence of a

person during Twilight or total Darkness. If you move the dial to its maximum position in an Anti-clockwise direction, the presence detector will

activate the device only if it detects a person in total darkness.

Time Delay Settings

The Time Delay dial allows you to select the period till which the device will remain active after the person leaves the area of detection or after the

device notices lack of activity. The minimum time is 8 to 10 seconds and the maximum time is 5 minutes. For example, if you select maximum time

of 5 minutes, the device associated with the Infrared Detector will remain active for 5 minutes after the person has moved away from the area of

detection. To decrease the time delay, move the dial in the anti-clockwise direction. To increase time delay, move the dial in clockwise direction.

Auto, ON & OFF

The Smart PIR (2M) has an additional switch that has three options: On, Off and Auto. The Auto mode is the default mode in which it detects the

presence of a person and activates the device associated with the detector. In the ON and OFF mode, the detector acts as a simple switch that

activates or deactivates the device associated with it.

Specifications

• Relay output

• Detection (view) angle: 1200

• Rated voltage: 240V~

• Power frequency: 50/60 Hz

• Rated load: a) Incandescent 500W

 b) Fluorescent / CFL / LED (PF > 0.80): 100W

• Detection distance: 7 meters (max)

• Working temperature: -100

 to + 400

 C

• Working humidity: <93% Rh

• Time delay: min. 9 secs +/- 1 secs.

 max. 5 mins. +/- 30 secs.

• Power consumption: <1W

• Ambient light (operating light): <10 lux to sunshine

• Installation height: 1.5 to 2.5 meters
