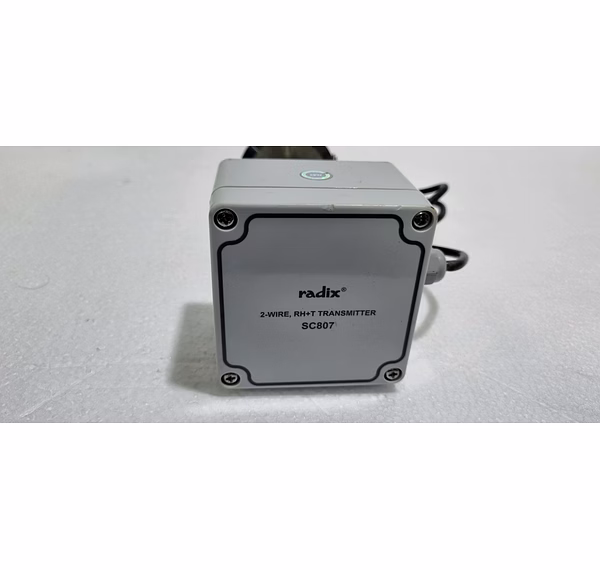

RADIX SC807 RH HUMIDITY & TEMPERATURE TRANSMITTER

The Radix SC807 is a high-performance Relative Humidity and Temperature (RH+T) Transmitter designed for accurate environmental monitoring in industrial and commercial applications. It provides reliable measurement and transmission of humidity and temperature signals for process control, HVAC systems, clean rooms, warehouses, and automation systems.

Key Features

High-performance RH and Temperature transmitter

Dual isolated 4–20 mA output signals

Accurate humidity and temperature measurement

PC programmable configuration

Software calibration capability

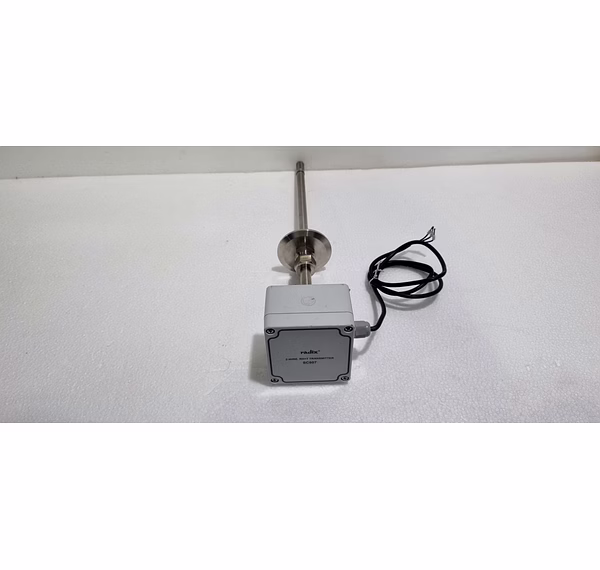

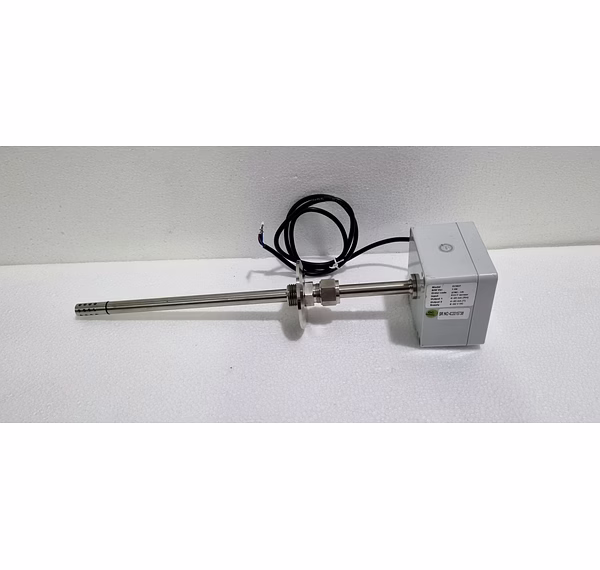

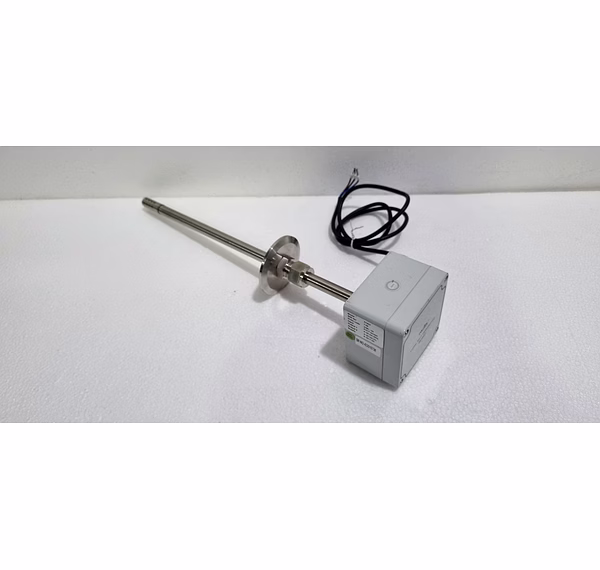

Available in surface mount, duct mount, and remote sensor configurations

IP65-rated enclosure design

Suitable for PLC, SCADA, and industrial control systems

Reliable long-term operation in demanding environments

Technical Specifications

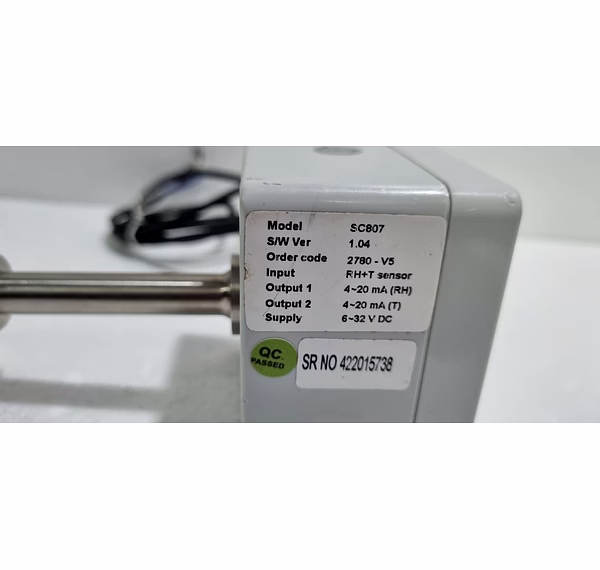

Model: SC807

Measurement Parameters: Relative Humidity & Temperature

Output: 2 × 4–20 mA

Power Supply: 4.5–32 VDC

Humidity Accuracy: ±2% RH

Temperature Accuracy: ±0.5°C

Operating Temperature: -20°C to +50°C

Sensor Type: Capacitive humidity sensor and semiconductor temperature sensor
