End-to-End Mold Design & Engineering Excellence

We offer a comprehensive mold development process, starting from product design to full mold structure validation—ensuring precision, performance, and manufacturability at every stage.

 Product Design

We begin by designing the plastic product itself, ensuring that every detail aligns with the intended functionality and manufacturability.

- Create standard CAD files with optimized geometry

- Model, analyze, and refine designs to meet performance goals

- Ensure manufacturability through intelligent design adjustments

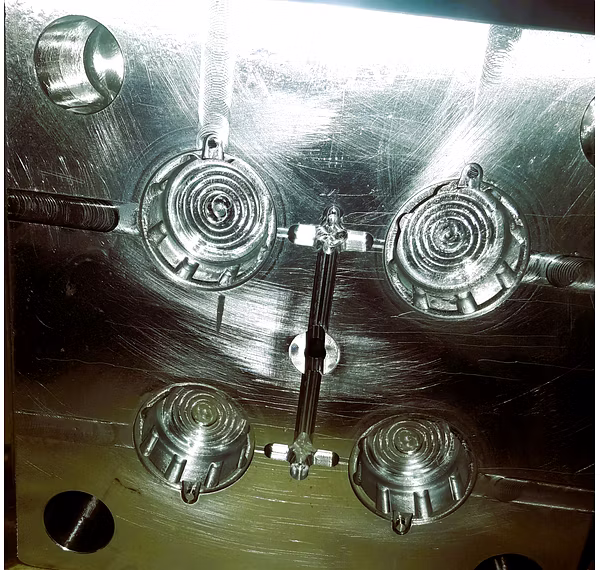

Core & Cavity Development

Our advanced tools streamline the creation of core and cavity geometry for complex mold designs.

- Automate shutoffs and parting of core/cavity

- Design parting surfaces quickly and associatively

- Split molds to accommodate slider mechanisms

- Automatically detect and resolve interference issues

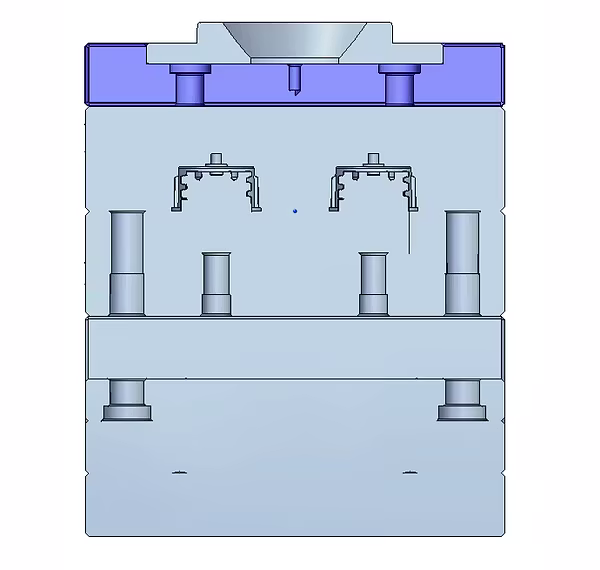

Mold Structure Configuration

We define the complete mold architecture for both prototype and production-scale multi-cavity molds.

- Configure molds using libraries of standard components

- Add ejector pins, cooling channels, runners, gates, screws, and more

- Use parametric patterns for efficient layout and trimming

- Integrate all essential systems for robust mold performance

Design Validation

We ensure every mold design is production-ready through rigorous validation.

- Analyze wall thickness, undercuts, and corner radii

- Check distances, reliefs, and electrode requirements

- Simulate full mold motion with dynamic collision detection
