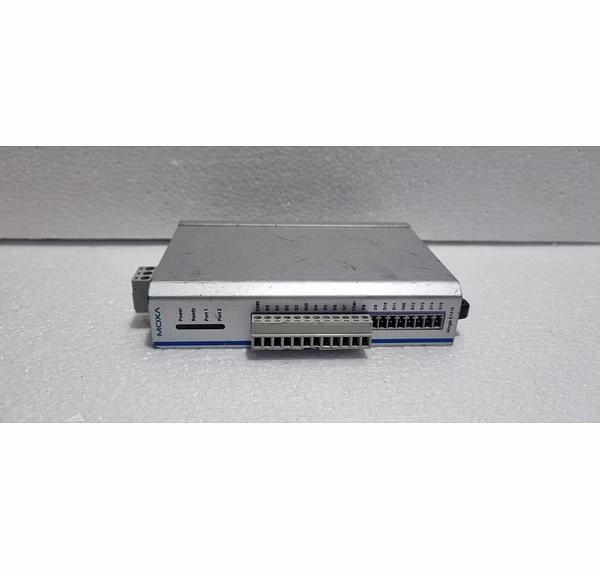

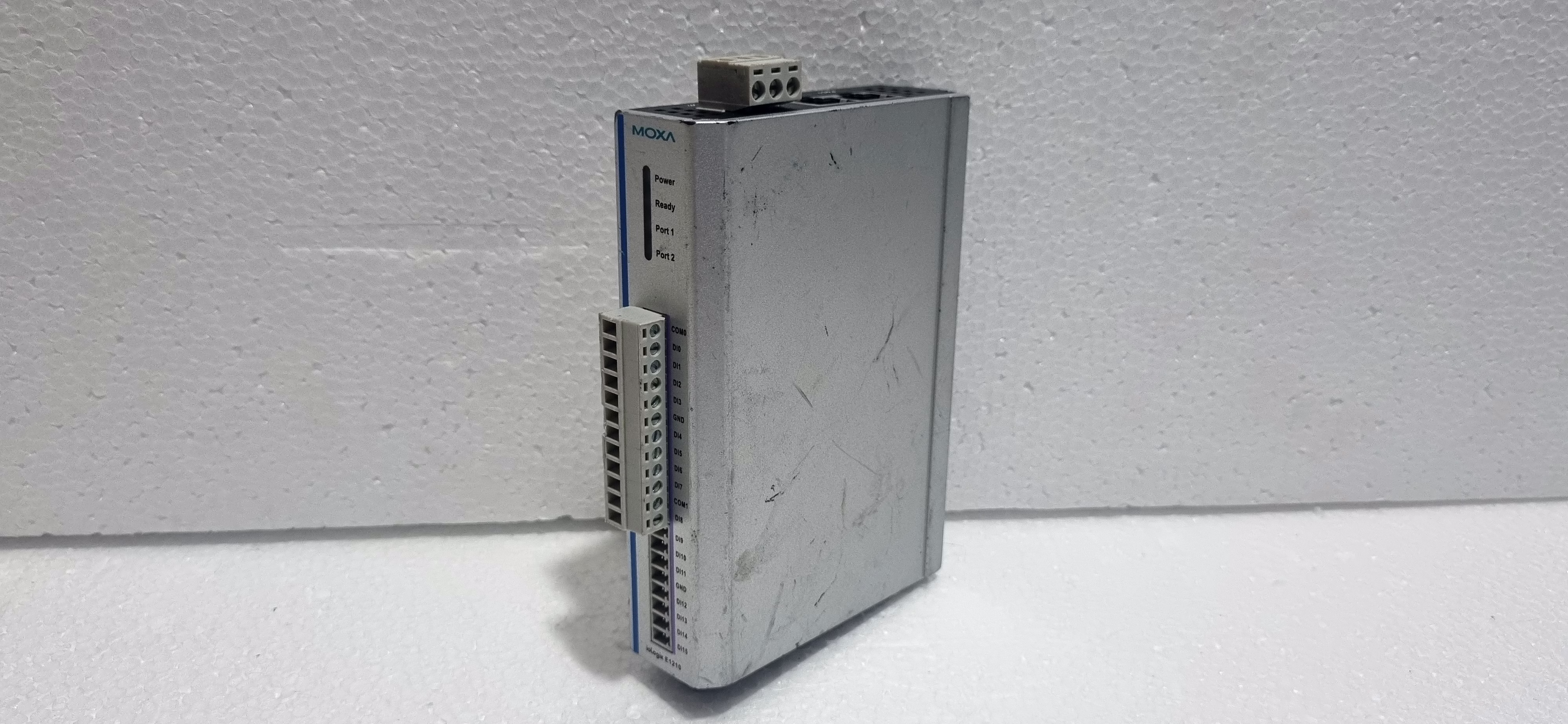

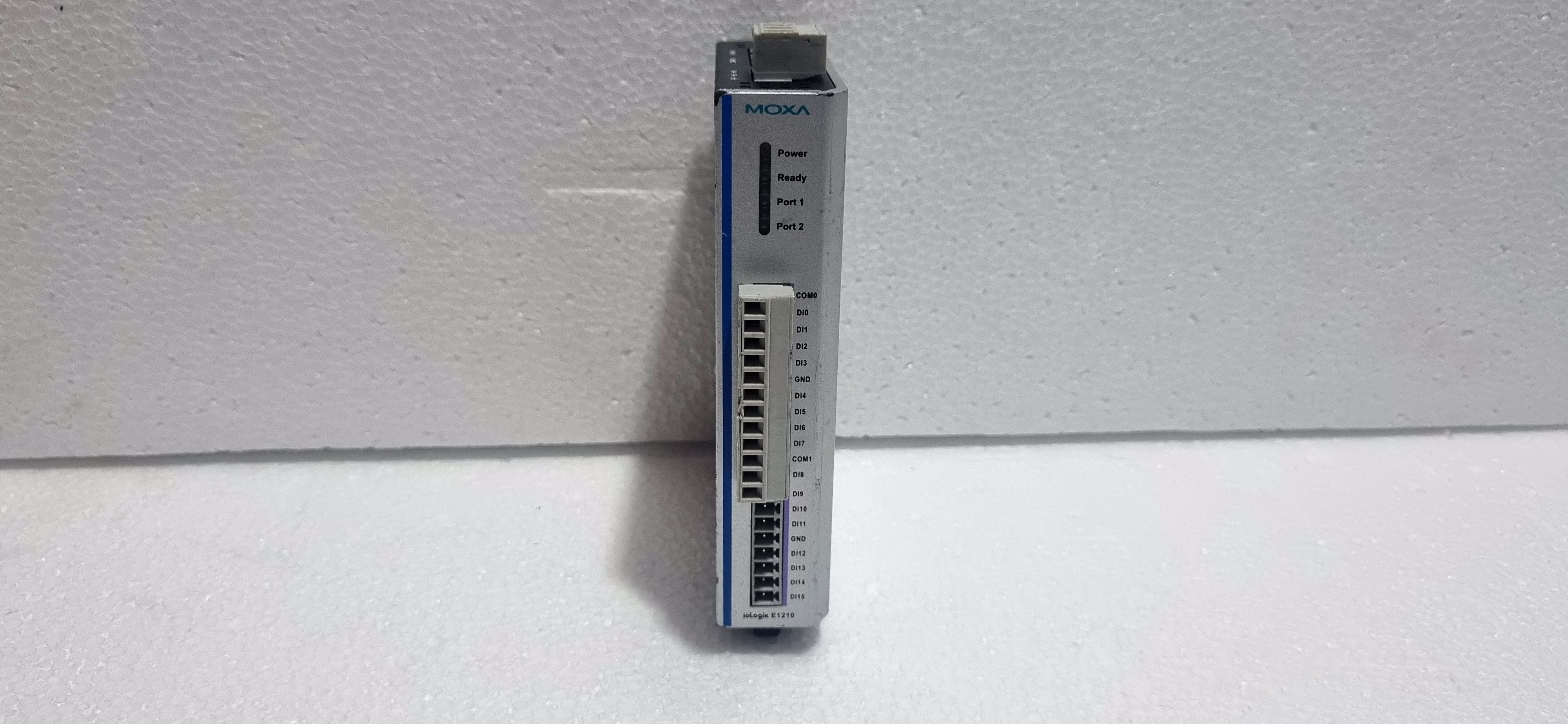

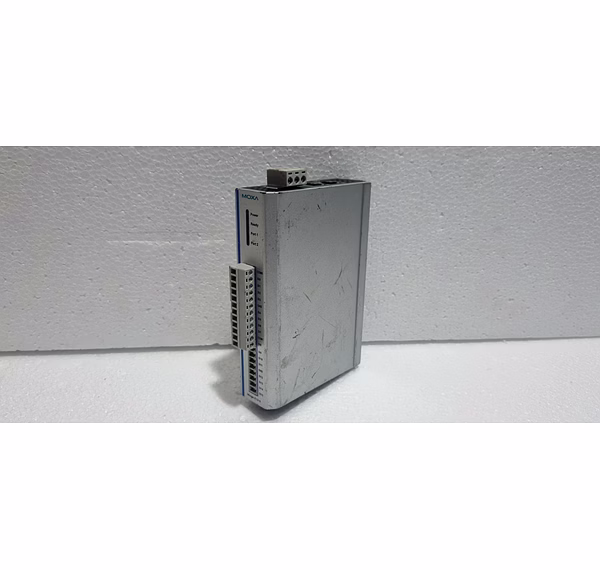

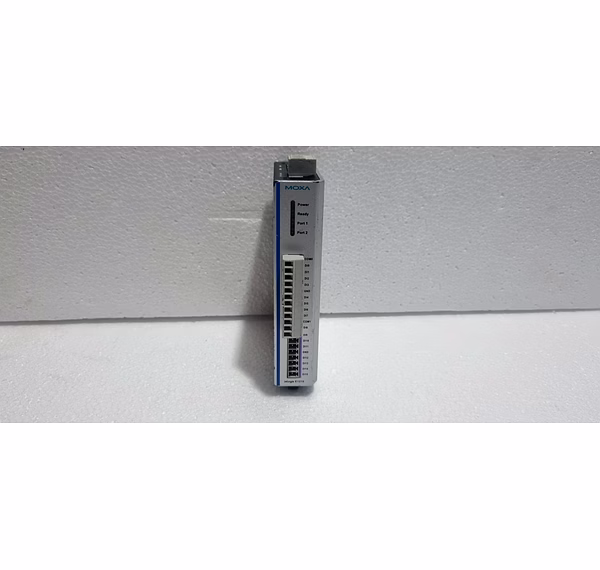

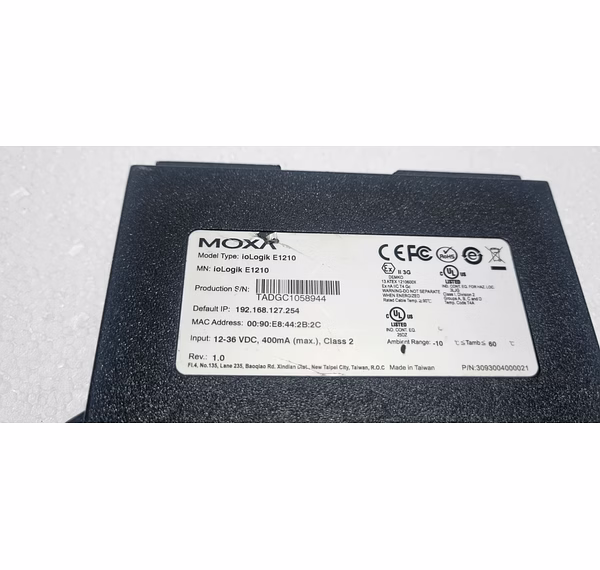

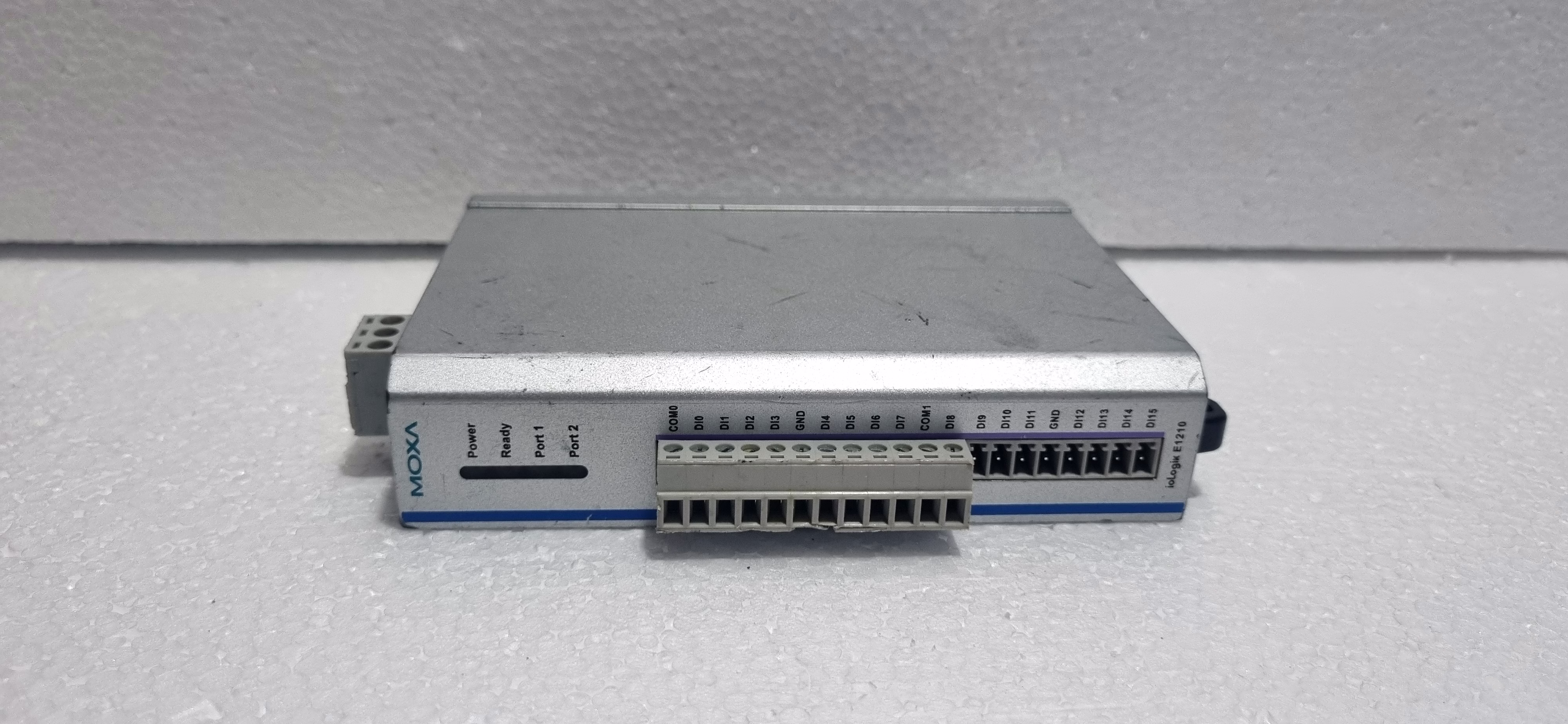

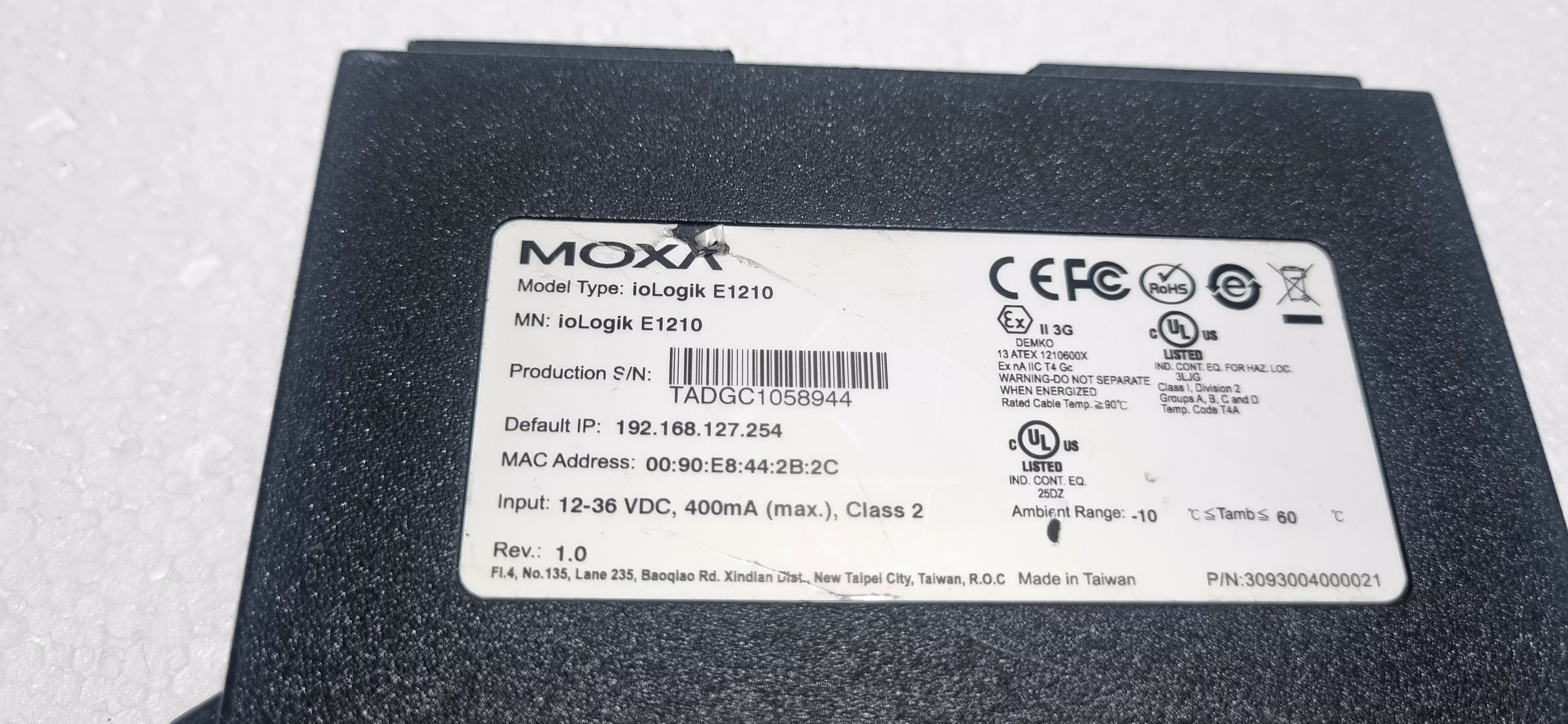

Moxa ioLogik E1210 – Universal Remote Ethernet I/O Module

The Moxa ioLogik E1210 is an industrial-grade remote Ethernet I/O module designed for distributed monitoring and control applications. It is part of Moxa’s E1200 series and provides reliable digital input connectivity for automation, building management, and industrial systems.

Key Features

16 Digital Inputs (DI)

Supports dry contact and wet contact (NPN/PNP).

Inputs can also function as event counters up to 250 Hz.

Dual Ethernet Ports

10/100 Mbps with built-in switch for daisy-chain installation, reducing network wiring cost.

Supported Protocols

Modbus TCP (Slave)

EtherNet/IP (Adapter)

SNMP v1/v2c

RESTful API

Moxa AOPC

MXIO Library (Windows/Linux)

Configuration & Management

Web-based configuration

Supports device discovery tools and basic access control features.

Industrial Design

3 kV DC I/O isolation

Wide power input: 12–36 VDC

DIN-rail mountable

LED indicators for status and I/O activity

Environmental Ratings

Operating temperature (standard model): -10°C to 60°C

Wide-temperature version E1210-T: -40°C to 75°C

Physical

Compact housing

Light weight (~200 g)
