STANDARD RATINGS :

2 pole 0.18-315Kw
4 pole 0.12-315Kw
6 pole 0.18-250Kw
8 pole 0.18-200Kw

EFFICIENCY :

Confirm to IE2 Level & are marked.

POWER SUPPLY :

For greater application flexibility and increase safety margin our motors are suitable for 415V +/-10%, 50Hz+/5%, combined variation allowed +/10%

AMBIENT TEMPERATURE

-15 to 50 degree C is standard.

SERVICE FACTOR :

These motors have a 1.00 S.F. at 50Hz, typical for IEC motors, Duty class S1.

CONSTRUCTION :

The rugged cast iron construction of the frame, endshields, integral feet and flanges absorbs shock and reduce motor vibration to provide a low-maintenance motor life.

TERMINAL BOX :

The terminal box is of cast iron construction and is available on Top.

STATOR WINDING & INSULATION:

The stator core is built up from low loss, high permeability, silicon steel for increased efficiency. It features a class F insulation system with design for class B maximum temprature rise.

ROTOR :

The rotor is built with the same high quality lamination steel, die cast with high conductivity aluminum, shrunk fit on to a high strength carbon-steel shaft. The rotor assembly is dynamically balanced to provide low noise and smooth, vibration-free operation for long trouble free life.

BEARINGS :

All motors use 100,000 hours direct coupled/25,000 hours belted, anti-friction, deep-grooved ball Bearings 160 frame & above of 63 series, on drive, tight fit in.

COOLING METHOD:

IC 411 bi directional cooling fan.

CONNECTION:

Star-connection for up to 3Kw, delta-connection for 4Kw and above.

WARRANTY:

Oxford motors are warranted to be free from defects in material, workmanship for a period of one year.

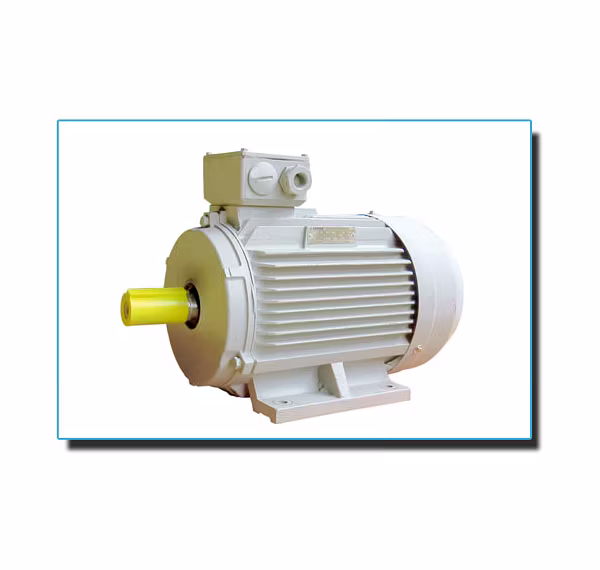

The IE2 Motor is designed to meet the IE2 efficiency standards, offering enhanced energy savings and performance compared to standard motors. Suitable for a wide range of industrial and commercial applications, the IE2 Motor delivers reliable power while reducing operational costs. Its efficient design helps lower energy consumption and supports environmentally-friendly practices.
We are pleased to inform that we have all the regular rating motors in-stock and non-stock motors can be made available within short and flexible delivery period as per customer needs. We assure you our best competitive pricing and commercial terms. We Also Deal In Oxford, Marathon Electric, Crompton & Greaves, Bharat Bijlee, Kirloskar, Abb, Baldor Etc. We Are Glad To Inform You That We Are Already On Vendor List Of Many Big Corporate House & Mnc'S.
