Min Order Qty 1
Product not available
Ahmedabad, India
Business Operations: Manufacturer, Merchant, Service Provider
Contact us for
| range of product |

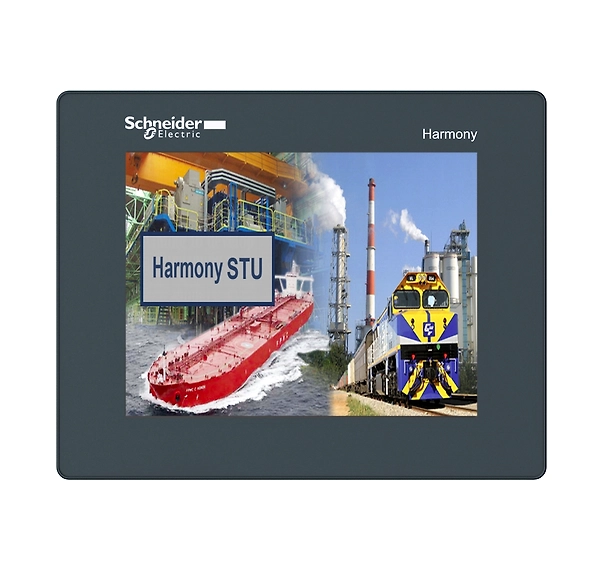

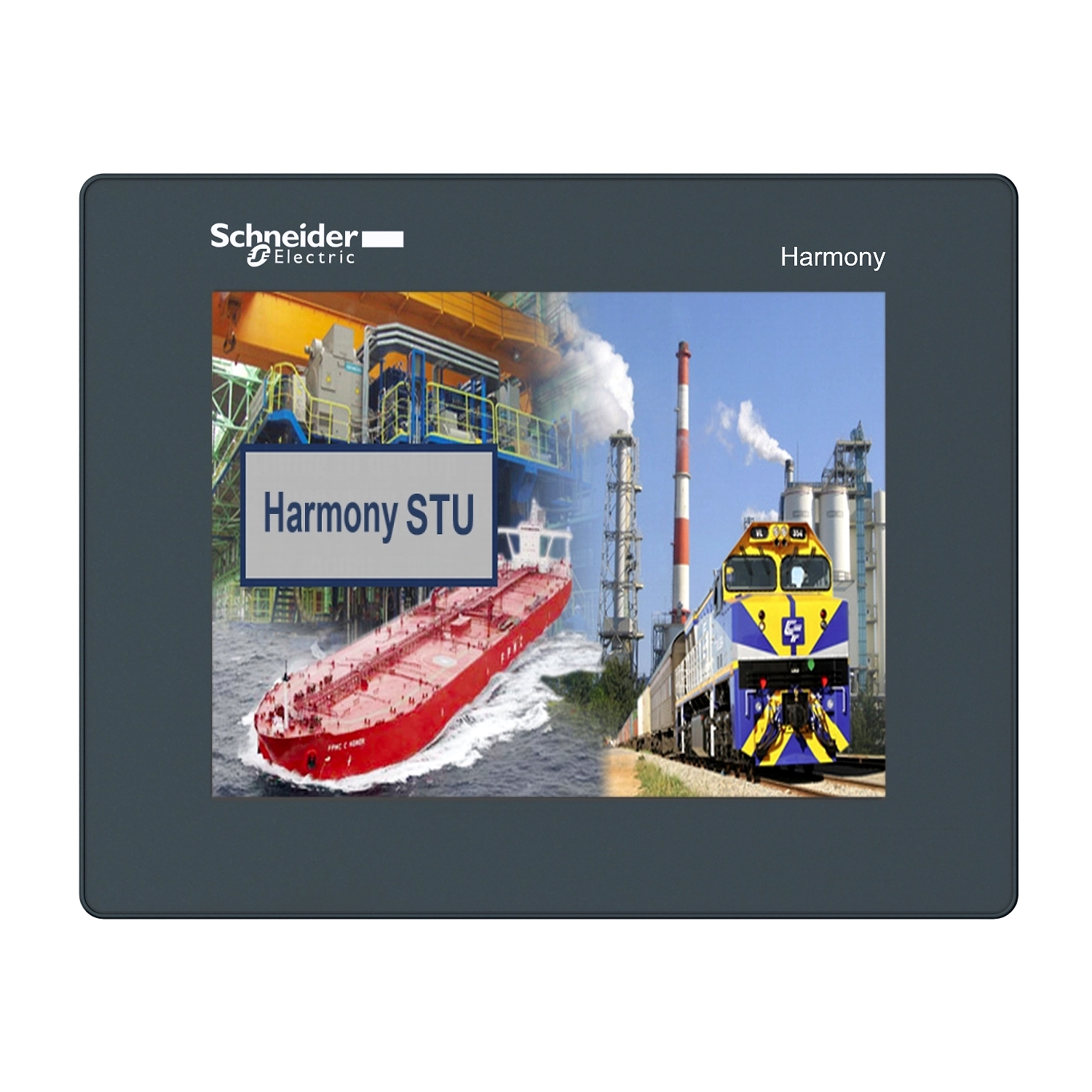

Harmony STO & STU
|
|
|---|---|---|
| product or component type |
Touch panel screen
|
|
| software designation |
Vijeo Designer
|
|
| operating system |
Harmony
|
|
| processor name |
CPU ARM9
|
| display size |
5.7 inch
|
|
|---|---|---|
| display type |
QVGA TFT colour touchscreen
|
|
| display colour |
65536 colours
|
|
| display resolution |
320 x 240 pixels QVGA
|
|
| touch panel |
Analogue
|
|
| backlight lifespan |
50000 hours
|
|
| brightness |
16 levels
|
|
| character font |
Taiwanese (traditional Chinese)
Japanese (ANK, Kanji) Chinese (simplified Chinese) ASCII Korean |
|
| [Us] rated supply voltage |
24 V DC
|
|
| supply |
External source
|
|
| supply voltage limits |
20.4…28.8 V
|
|
| inrush current |
30 A
|
|
| power consumption in W |
6.8 W
|
|
| number of pages |
Limited by internal memory capacity
|
|
| processor frequency |
333 MHz
|
|
| memory description |
Application memory 16 MB
Back up of data 64 kB |
|
| integrated connection type |
1 USB 2.0 type mini B
1 USB 2.0 type A COM1 serial link - female RJ45 - RS232C/RS485 (rate: <= 115.2 kbits/s) power supply - removable screw terminal block |
|
| realtime clock |
Access to the PLC real-time clock
|
|
| downloadable protocols |
Uni-TE
Modbus TCP/IP Third party protocols Modbus |
|
| fixing mode |
Ø 22 mm hole
|
|
| enclosure material |
PC/PBT and PAA
|
|
| marking |
With Schneider logo
CE |
|
| height |
129.15 mm
|
|
| width |
163 mm
|
|
| depth |
56.5 mm
|
| immunity to microbreaks |
7 ms
|
|
|---|---|---|
| standards |
UL 1604
FCC Class A IEC 61000-6-2 EN 61131-2 UL 508 |
|
| product certifications |
UL class 1 Div2 T4A ou T5
C-Tick CULus Marine |
|
| ambient air temperature for operation |
0…50 °C
|
|
| ambient air temperature for storage |
-20…60 °C
|
|
| relative humidity |
0…85 % without condensation
|
|
| operating altitude |
<= 2000 m
|
|
| IP degree of protection |
IP20 (rear panel) conforming to IEC 60529
IP65 (front panel) conforming to IEC 60529 |
|
| NEMA degree of protection |
NEMA 4X front panel (indoor use)
|
|
| shock resistance |
15 gn for 11 ms conforming to IEC 60068-2-27
|
|
| vibration resistance |
+/- 3.5 mm (f = 5…9 Hz) conforming to IEC 60068-2-6
1 gn (f = 9…150 Hz) conforming to IEC 60068-2-6 |
|
| resistance to electromagnetic fields |
10 V/m conforming to IEC 61000-4-3
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
872 g
|
|
| Package 1 Height |
7.2 cm
|
|
| Package 1 width |
18.8 cm
|
|
| Package 1 Length |
26.8 cm
|
|
| Unit Type of Package 2 |
S03
|
|
| Number of Units in Package 2 |
8
|
|
| Package 2 Weight |
7.6 kg
|
|
| Package 2 Height |
30 cm
|
|
| Package 2 width |
30 cm
|
|
| Package 2 Length |
40 cm
|
|
| Unit Type of Package 3 |
P12
|
|
| Number of Units in Package 3 |
192
|
|
| Package 3 Weight |
179.5 kg
|
|
| Package 3 Height |
130 cm
|
|
| Package 3 width |
80 cm
|
|
| Package 3 Length |
120 cm
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
|---|---|---|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation | ||
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
| Warranty |
18 months
|
|---|
