ITC-HSN: 8481
Min Order Qty 1 NOS (Numbers)
Accept Small Orders
Product not available

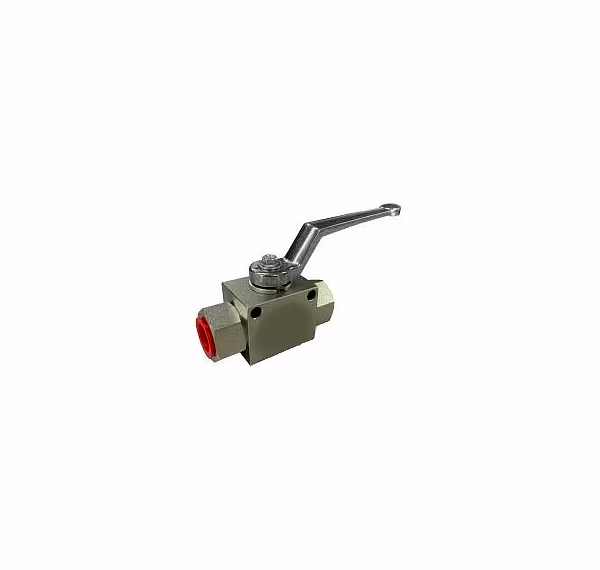

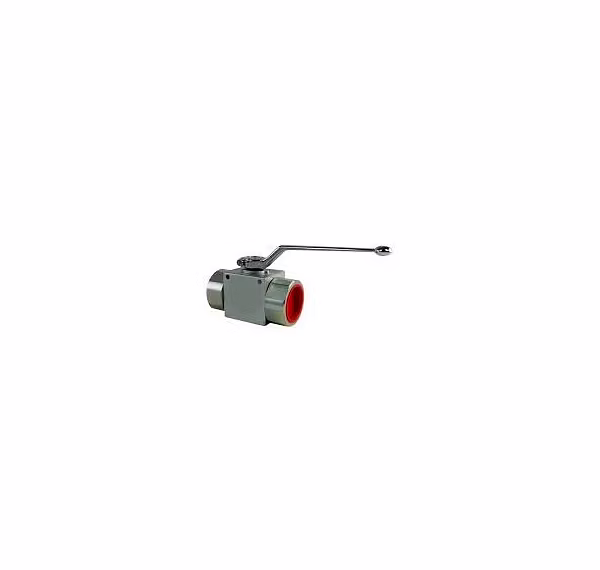

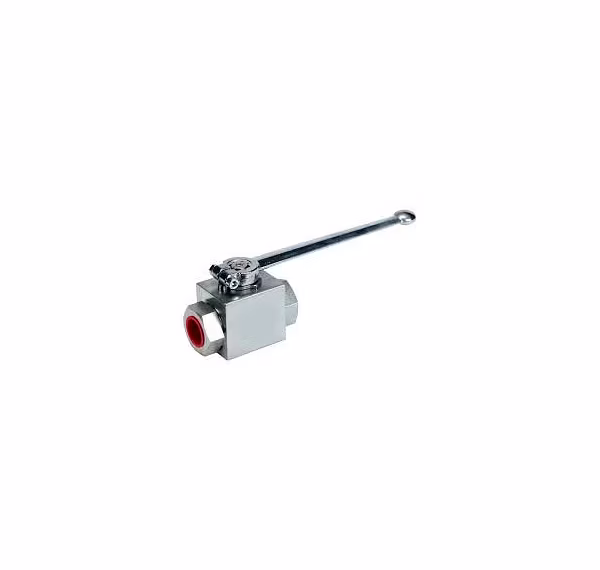

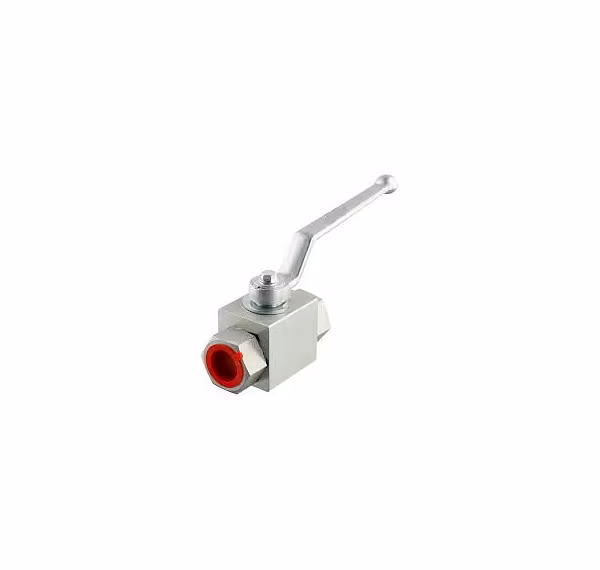

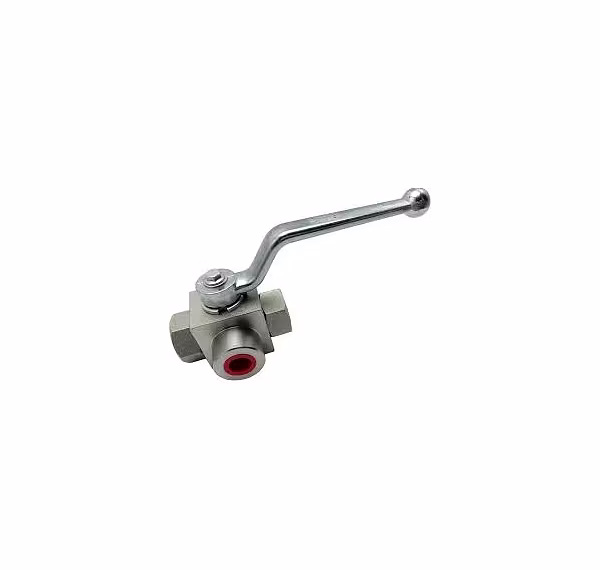

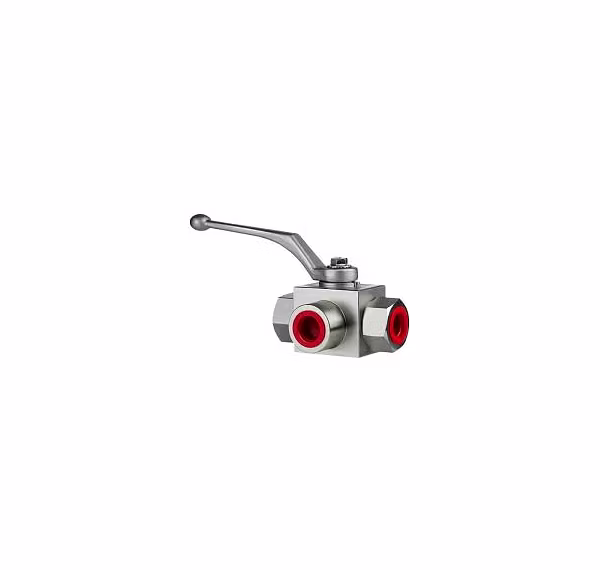

Experience superior flow control and reliability with the high pressure hydraulic ball valve. Designed for high-pressure hydraulic fluid systems, this ball valve promises enhanced safety and performance.
Contact us for
|
Size Range |
¼” to 48” (DN 6 to DN 1200) |
|
Material Options |
Stainless Steel (SS 304, SS 316, SS 316L), Carbon Steel (ASTM A216 WCB), Duplex Steel, Alloy Steel (ASTM A182 F22), Cast Iron (ASTM A126 Class B), Bronze, Brass (IS 319 Type 1, DZR Brass) |
|
Pressure Rating |
Class 150 to Class 2500, PN10 to PN420, Hydraulic Valves up to 700 bar (10,000 PSI). |
|
Working Temperature |
-196°C to 450°C (Cryogenic to high-temperature applications) |
|
Seat Material |
PTFE, RPTFE, CPTFE, NYLON PEEK, Metal-to-Metal |
|
End Connections |
Flanged (RF, FF), Screwed (BSP, NPT), Socket Weld (SW), Butt Weld (BW), Tri-Clamp. ASME B16.5 (Flanges), ASME B16.11 (SW), ASME B1.20.1 (Threaded). |
|
Manufacturing Standards |
API 6D, API 607 (Fire-Safe), ASME B16.34, ISO 5211, BS 5351, EN 13709, DIN 3357, DIN EN 1092-1 (Flanges), DIN 3230 (Testing). JIS B2002. |
|
Media Compatibility |
Water, Oil, Gas, Chemicals, Steam, Slurry, Hydraulic Fluids, Acidic and Alkaline Solutions. |
|
Actuation Options |
Manual (Lever/Gear), Pneumatic, Electric, Hydraulic. |
|
Design Standards |
Fire Safe (API 607, ISO 10497), Anti-Static, Blowout-Proof Stem Design. API 6D, BS EN ISO 17292, ASME B16.34. |
|
Dimensions |
ASME B16.10, BS 5351, DIN 3202. |
|
Face-to-Face |
ASME B16.10. |
| Established in: | 2021 |
| Bussiness Type: | Sole Proprietorship |
| Bussiness Type: | Manufacturer |
| MSME: | Yes |
| Countries exporting to: | Canada, Egypt, Ghana, Mexico, Nigeria, Qatar, Saudi Arabia, Spain, United Arab Emirates, United States |
| Export Turnover (3 years): | US$1,000,000 - US$5,000,000 |
| Certifications: | Chamber of Commerce |
| Countries would like to export to: | Algeria, Argentina, Australia, Bahrain, Bangladesh, Belgium, Bhutan, Brazil, Canada, China |
| No of employees: | 31-50 |
