Dynemech’s Anti-Vibration Tables are ideal for Testing / Quality Laboratories co-located with industrial units having high degree of vibration due to working machines like presses, hammers, VMCs etc. An anti vibration table is designed for cooperation with analytical and laboratory balances or control scales.

Our Anti-Vibration Tables are designed with Granite Surface Plate with Grade-1 accuracy for critical measuring accuracies. Also, vibration damping in our Anti-Vibration tables are provided at two locations – below the granite table top and at the bottom usinglevelling feet which can help in proper levelling of the table as well as having insulation plate to remove any unwanted vibrations. Additionally, we can select Elastomeric, Pneumatic or Spring Based Damping depending upon the vibrations present in the Testing Laboratory.

Granite base of size L 750 X B 600 X T 30 mm

60 mm Tubular Structure with cross member

Wrap Around Construction with left angular profile

Front keyboard panel for aesthetic purpose

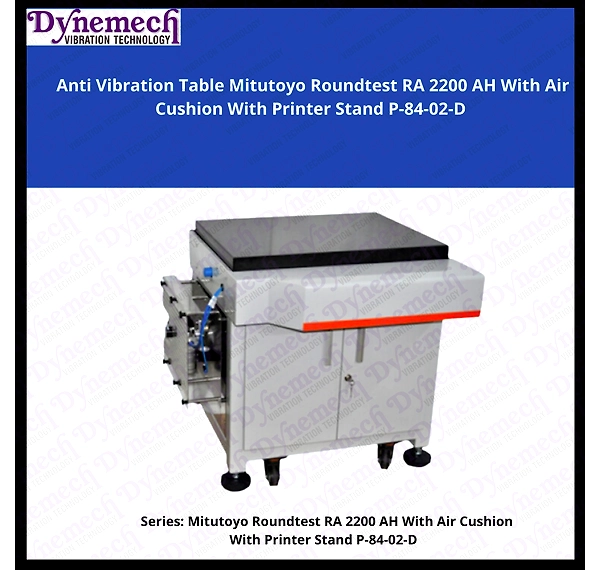

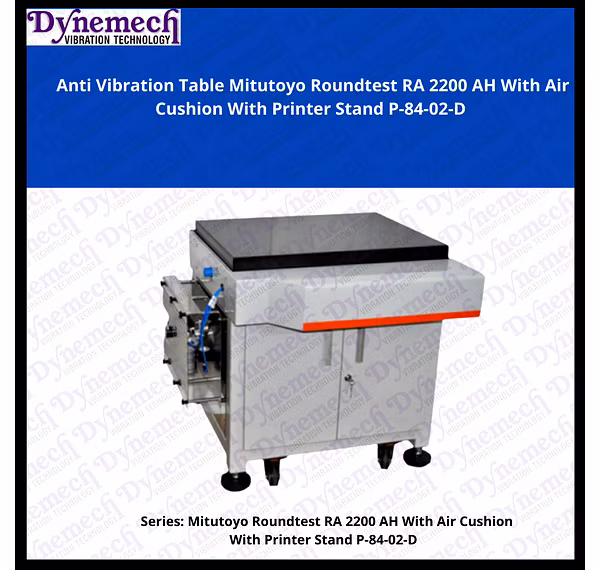

Pneumatic supported membrane air springs with 3 sensors and auto leveling within ± 0.15 mm complete with manifold and regulator, FRL unit, shut-off wall and NRV. Completely enclosed in laser cut SS side sheet. Printer Stand (To be Ordered Separately)
