Specification
0.75 Sqmm & 2.50 Sqmm (2 Core & 4 Core)

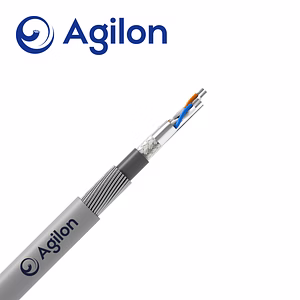

Stranded Annealed Bare Copper Conductor, Double layer of Glass mica tape wrapped over conductor, XLPE Insulated, Cores Laid-up, Overall shielded(100% Coverage) with Aluminium Mylar tape in contact with ATC Drain wire and Overall LSZH Jacketed Un-Armoured Fire Survival Shielded Cables.
Fire survival test : FS test as per BS EN:50200 PH30.
Reference standards : BS:7629-1 & IEC:60228
Application
 Fire Alarm Systems
 Public Address Systems
 Fire Pumps, Pressurization Systems
 Emergency Lighting Exit Signage Lighting
 Smoke Ventilation ( Dampers & Actuators )
 Fire Fighting Shafts (Staircase, Lift, Lift Lobby)
 Magnetic Door Hold Open Devices
 Fireman’s Lifts
 Lighting in Fire
 Command Centers & Security Rooms
 And Other Critical Applications
