Technical Specifications:-

a) Material – Stainless Steel

 Pipe – SS

 Fitting – SS

 Flange – SS

 Valve- SS

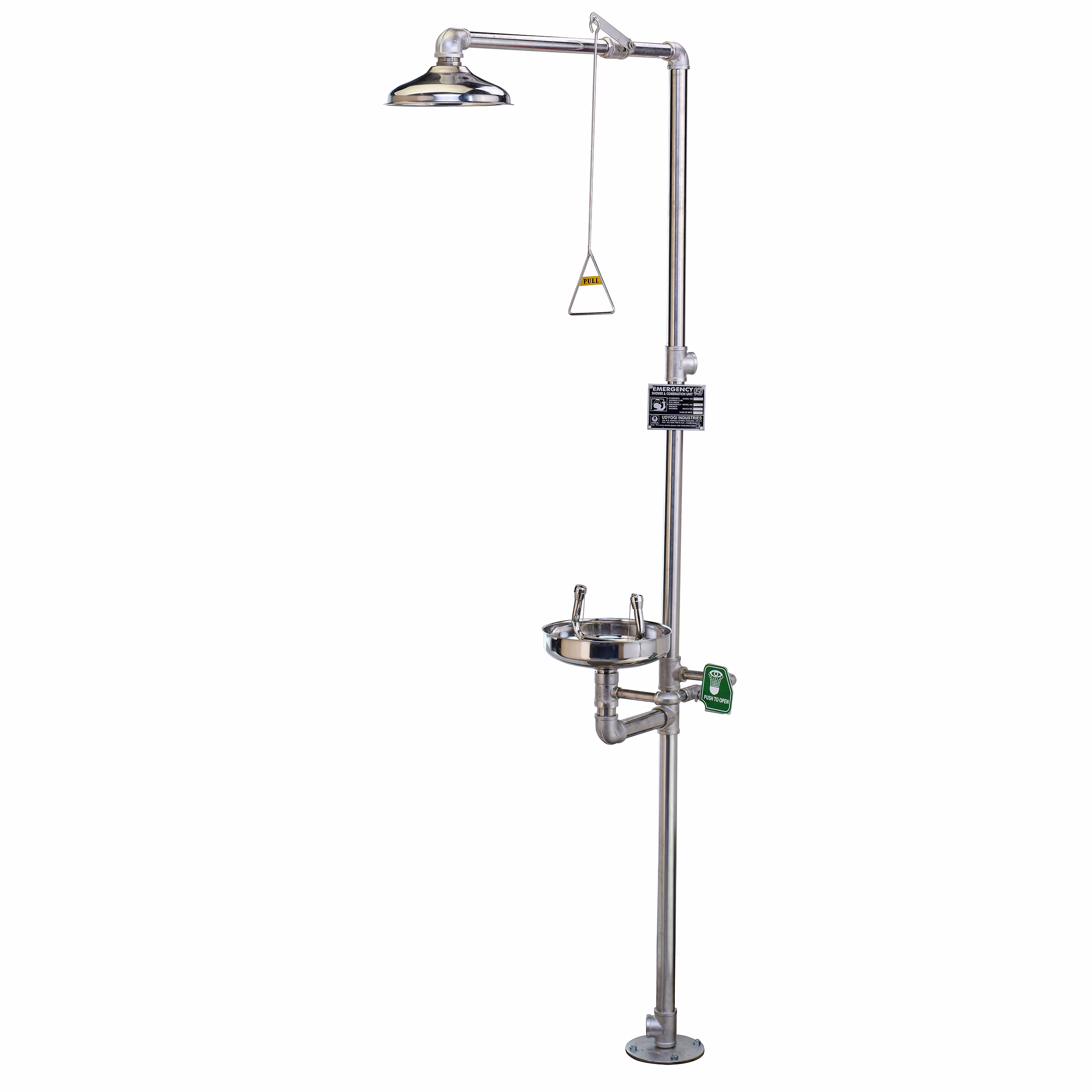

b) Shower Head – Made of highly visible stainless steel (SS304),

resistant to damage from most acid, alkali and oil

c) Shower Head Size - Shower head is between 83" (210 cm) to

87" (220 cm) above floor

d) Pull Rod - For supply and control of water flow in shower head

Pull Rod Size- Pull rod is within 68'' (173 cm) height above floor

surface

f) Shower Valve- Through passage S.S valve that opens

automatically when the lever is pulled. The valve stays open

until it is manually closed.

g) Eye Wash Head - Two high-flow sprays, operated at low

pressure, which washes the eye and face. Anti-dust cover

protects the head from airborne contaminants and automatically

opens with water pressure.

h) Eye Wash Bowl - Highly visible stainless steel resistant to

damage from most acid, alkali and oil.

i) Supply Water Conditions-

 Supply Water - Drinking / Tepid Water

 Operating Pressure - 2.1 kg / cm2 (30 psi)

 Operating Temperature – Ambient

j) Features-

 Water inlet connection 1-¼” NB single inlet connection for

both shower & eye wash

 Water outlet connection – 1-¼” NB

 Head shower discharge rate – 84-92 lpm

 Push to open valve - connects unit to uninterruptible water

supply

 Eye wash discharge rate – 30 lpm

 Base plate - to hold the shower structure in a stable

position (size-180mm)

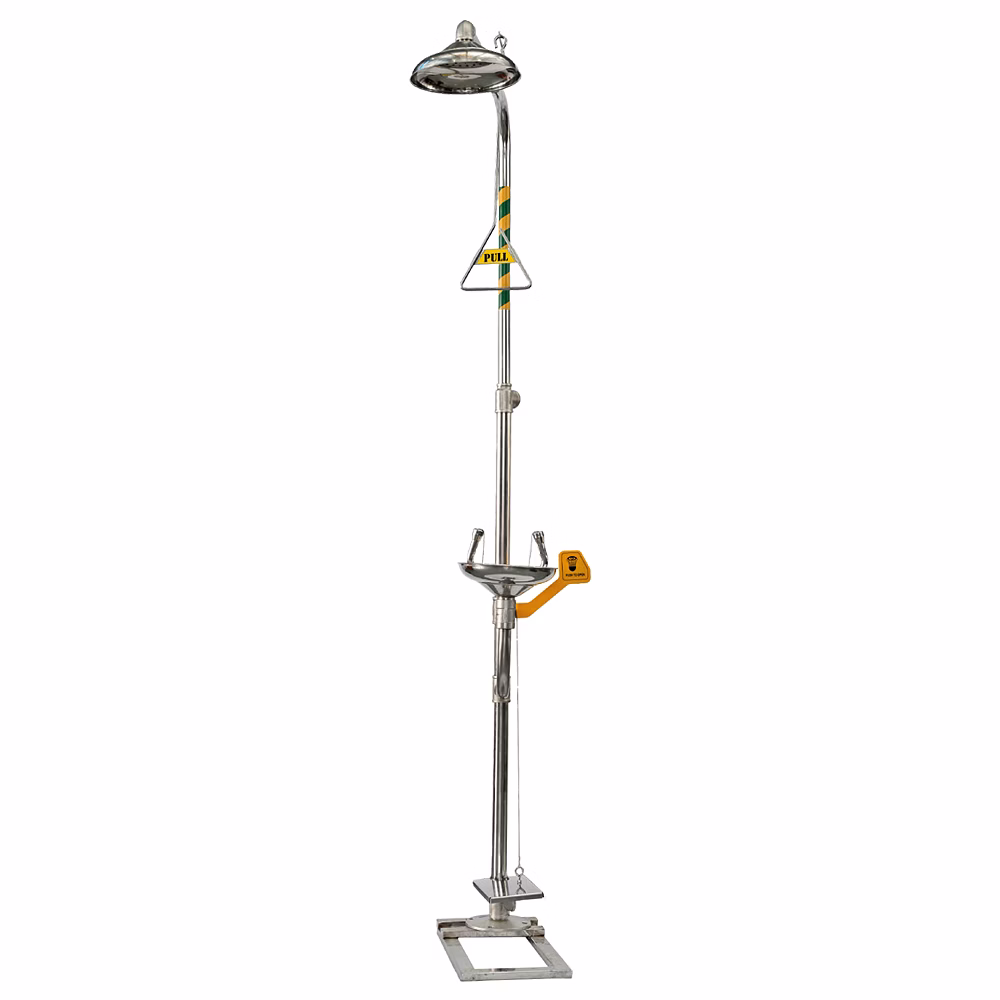

 With foot pedal for hands free operation to supply and

control water flow through eye wash head

k) Gross Weight – 21kg approx

l) Standard - IS 10592:2018. Meets ANSI Z358.1
