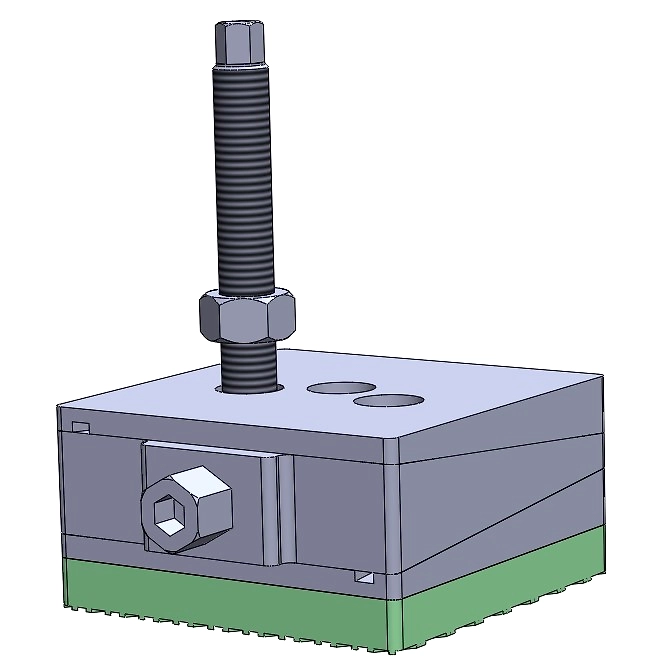

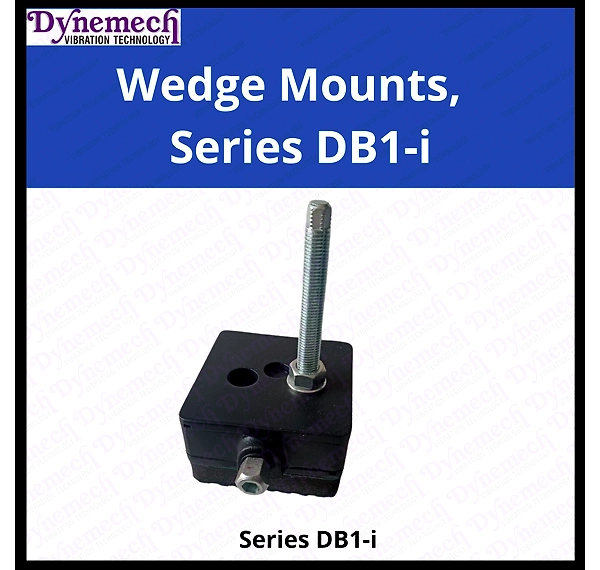

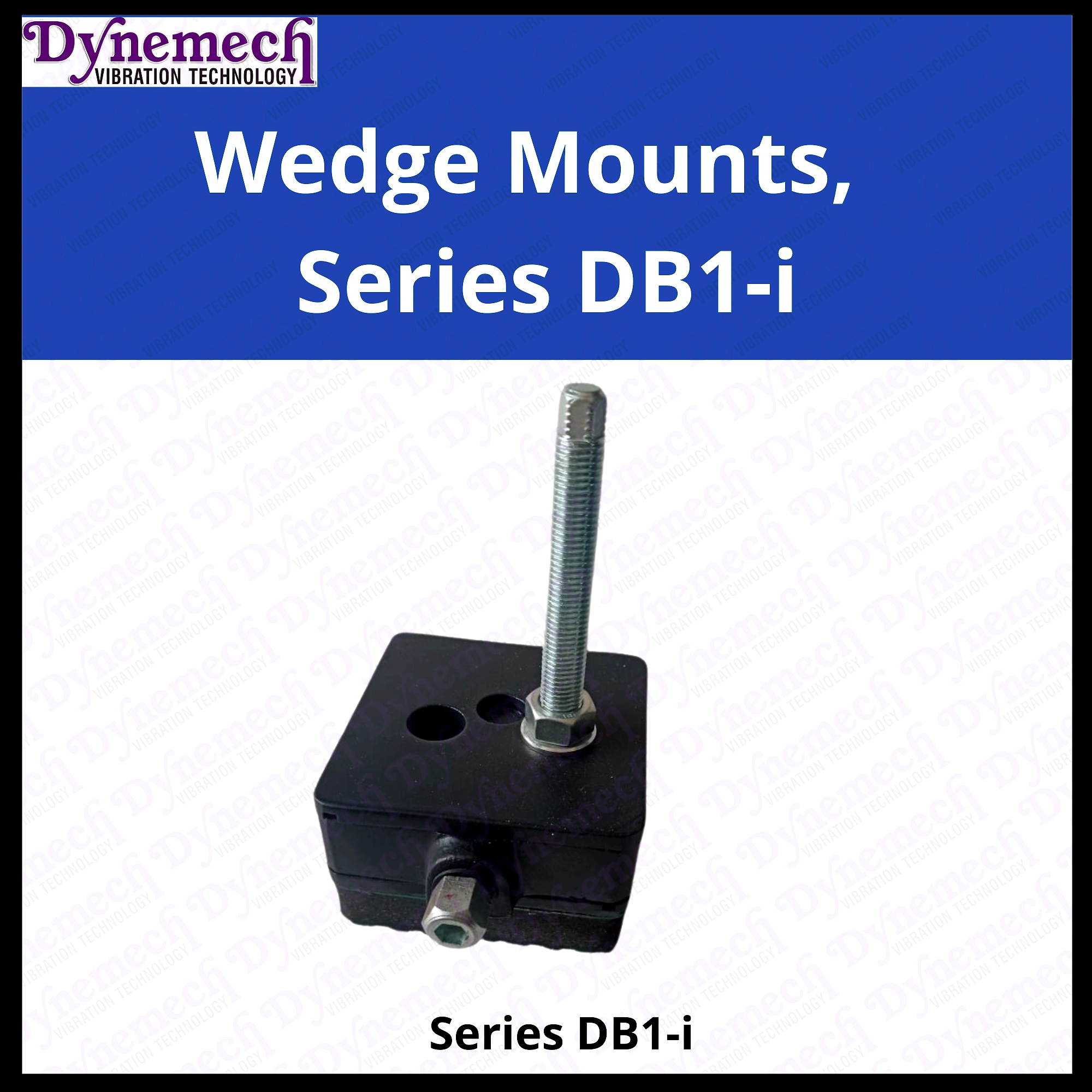

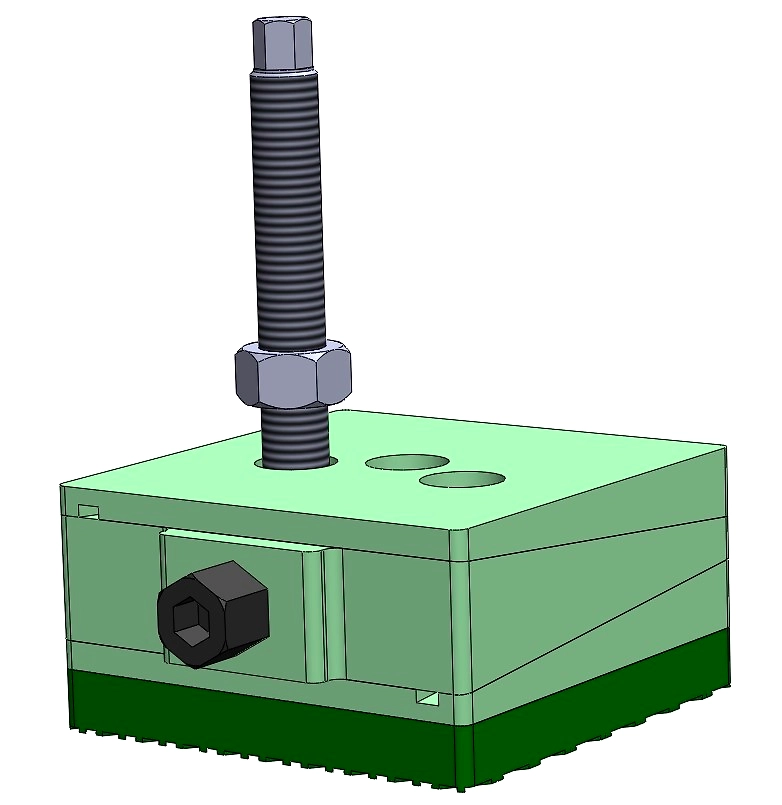

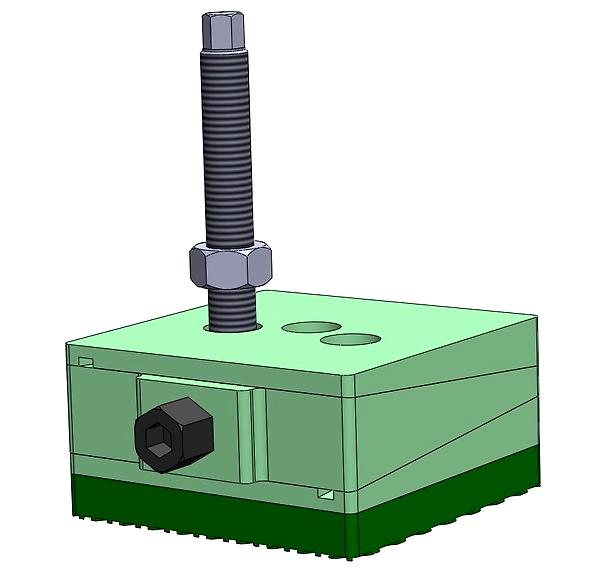

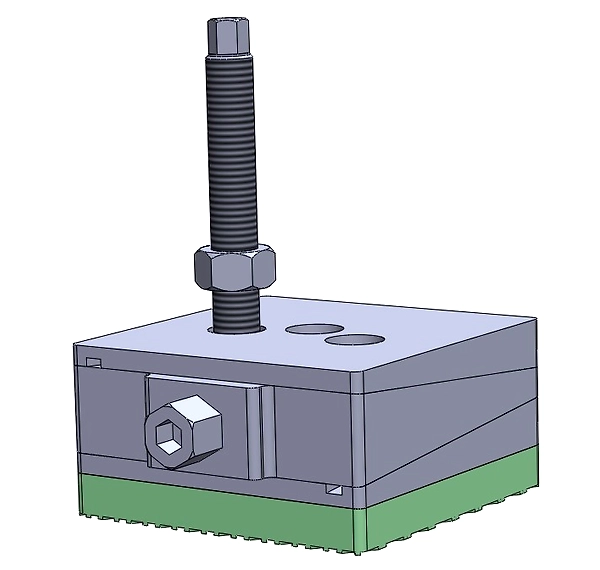

Dynemech Wedge Mounts Series DB is designed for machines which require precision leveling along with vibration reduction and are desired to be firmly mounted with the isolator or machines with high axial thrust and do require any anchoring to the floor.
These mounts provide 2 holes on the top plate of the wedge. The bolt which is supplied as a standard accessory with these wedge mounts can be fixed in any of these two holes. While installing the machine, the bolt can be fixed in the hole which makes sure that most of the wedge mount is covered by the leg/base of the machine.
Size :115x115x69mm
Load Capacity (Kg.):1800 Kg/pc To 9500Kg/pc Bolt Size: M16 X 2.0 X 150 Long
Contact us for
Dynemech Wedge Mounts Series DB is designed for machines which require precision leveling along with vibration reduction and are desired to be firmly mounted with the isolator or machines with high axial thrust and do require any anchoring to the floor.
These mounts provide 2 holes on the top plate of the wedge. The bolt which is supplied as a standard accessory with these wedge mounts can be fixed in any of these two holes. While installing the machine, the bolt can be fixed in the hole which makes sure that most of the wedge mount is covered by the leg/base of the machine.
Size :115x115x69mm
Load Capacity (Kg.):1800 Kg/pc To 9500Kg/pc Bolt Size: M16 X 2.0 X 150 Long
Natural Frequency (Hz):25-7
Coeff. of Friction:0.8
Working Temp Range °C:-From -16 to 90
Material:Rubber & Cust Iron Box Dimention: 13"X8"X7" Weight Of 04 Nos: 15 Kgs Number Of Box:01
Colour:Green, Grey, Black Amount: 1940
