ITC-HSN: 84879000
Min Order Qty 4 NOS (Numbers)
Accept Small Orders
Fulfilment Capacity (Per Month): 100 NOS (Numbers)/month
Product not available

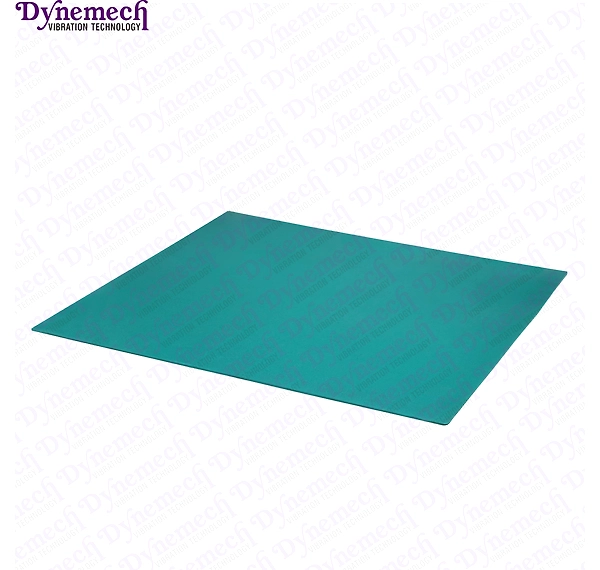

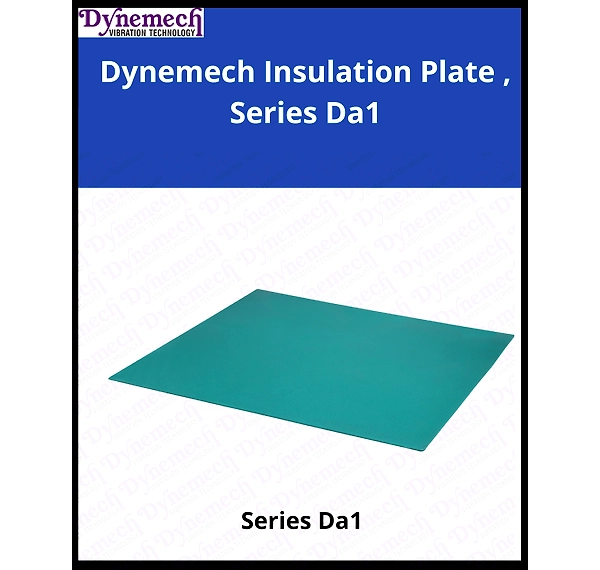

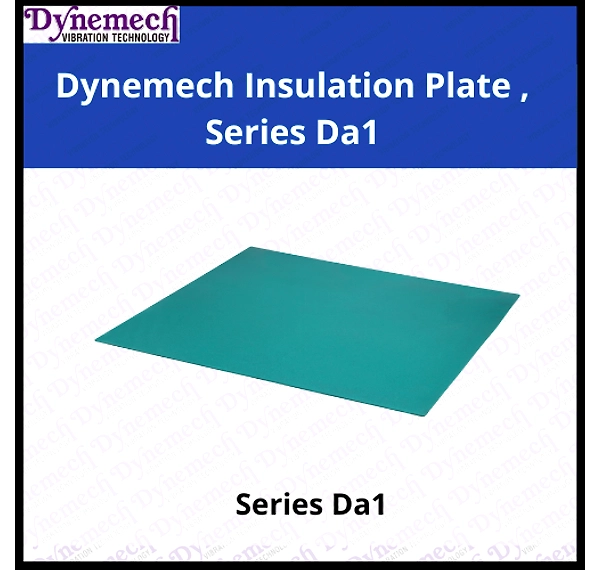

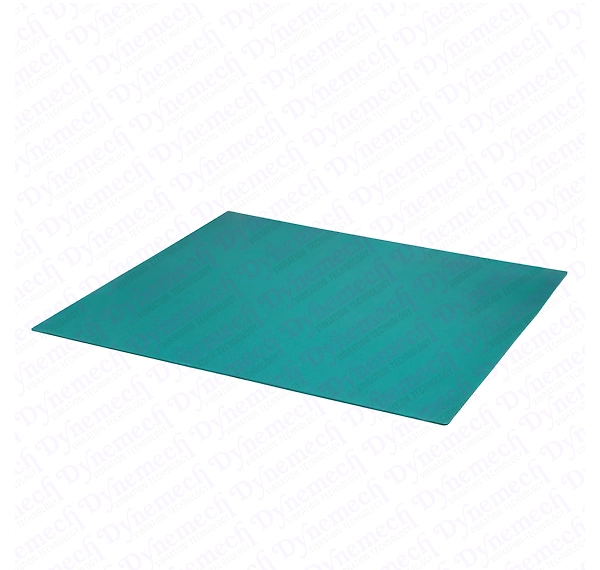

Dynemech Anti-Vibration Da1 Insulation Sheet is made from high grade synthetic composite material. This sheet is resistant to water,
oils, lubricating oils, fuels etc. used in the shop floor. This sheet has defined stress value and can be placed directly under the machine as
per the weight of the machine and no. of mounting positions. This plate will not deform plastically, if the weight of machine does not
exceed maximum load value of this Insulation plate.
Application: Anti-Skid Plate.
Size :500x500x2mm
Load Capacity (Kg.):02 to 18
Natural Frequency (Hz):30-70
Thickness (mm):2
Coeff. of Friction:0.8
Shore A Hardness:40-45
Working Temp Range °C:-20 to +70
Weight ( Kg.):2
Material: Nitrile Rubber, Cork, Synthetic Fibre and Other High Gread Compounds.
Colour:Green, Grey, Black
https://vibrationmountsindia.com/
Contact us for
Dynemech Anti-Vibration Da1 Insulation Sheet is made from high grade synthetic composite material. This sheet is resistant to water,
oils, lubricating oils, fuels etc. used in the shop floor. This sheet has defined stress value and can be placed directly under the machine as
per the weight of the machine and no. of mounting positions. This plate will not deform plastically, if the weight of machine does not
exceed maximum load value of this Insulation plate.
Size :500x500x2mm
Load Capacity (Kg.):02 to 18
Natural Frequency (Hz):30-70
Thickness (mm):2
Coeff. of Friction:0.8
Shore A Hardness:40-45
Working Temp Range °C:-20 to +70
Weight ( Kg.):2
Material: Nitrile Rubber, Cork, Synthetic Fibre and Other High Gread Compounds.
Colour:Green, Grey, Black
https://vibrationmountsindia.com/
