ITC-HSN: 841391
Min Order Qty 1 cm
Accept Small Orders
Fulfilment Capacity (Per Month): 50 cm/month
Product not available

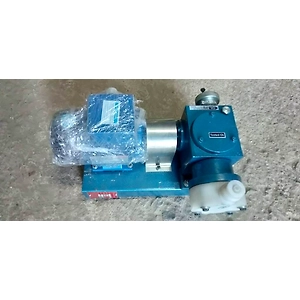

MODEL MMDP II
Pump flow rate ( Discharge capacity) 0-662LPH ( liter per hour)
Control Manually
Discharge Pressure 3kg/cm2(Bar)
STROCK LEIGHT 8 MM
SPM /Gear Ratio 185/ 8:1
Coupling Type Flexible spider
Turn Down ration 10:1
Efficiency/Accuracy 98% / +- 1%
End connections 1” BSP FEMALE TREADED
LUBRICATION OIL SPLASH TYPE
MOC ( Material of construction)- contact parts:-
DIAPHRAGH PTFE
LIQUID END P.P
NRV SEAT / CAGE P.P
NRV BALL P.P
Seal NRV PTFE
WORM WHEEL Phosphorous Bronze
Gear Housing IS210 FG 260 C.I
Pump & drive mounting base M.S.
Coupling guard SS304
Driven ( Motor) DATA SHEET
Phase / Voltas/ Hz 3 / 415 /50 AC
Enclosure / Insulation IP-55, / STD TEFC
HP / Kw /RPM 1.0/ 0.75/ 1440
Mounting / make FOOT /CGL/BBL/HINDUSTHAN
Contact us for

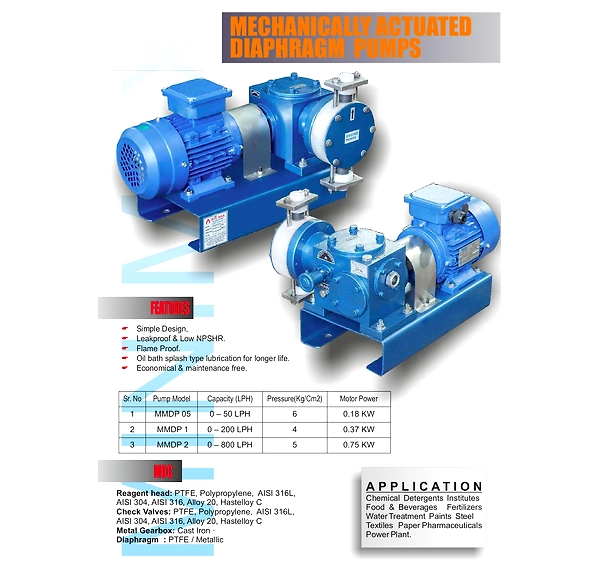

TECHNICAL SPECIFICATION OF MECHANICAL DIAPHRAGM PUMP
MODEL MMDP II
Pump flow rate ( Discharge capacity) 0-662LPH ( liter per hour)
Control Manually
Discharge Pressure 3kg/cm2(Bar)
STROCK LEIGHT 8 MM
SPM /Gear Ratio 185/ 8:1
Coupling Type Flexible spider
Turn Down ration 10:1
Efficiency/Accuracy 98% / +- 1%
End connections 1” BSP FEMALE TREADED
LUBRICATION OIL SPLASH TYPE
MOC ( Material of construction)- contact parts:-
DIAPHRAGH PTFE
LIQUID END P.P
NRV SEAT / CAGE P.P
NRV BALL P.P
Seal NRV PTFE
WORM WHEEL Phosphorous Bronze
Gear Housing IS210 FG 260 C.I
Pump & drive mounting base M.S.
Coupling guard SS304
Driven ( Motor) DATA SHEET
Phase / Voltas/ Hz 3 / 415 /50 AC
Enclosure / Insulation IP-55, / STD TEFC
HP / Kw /RPM 1.0/ 0.75/ 1440
Mounting / make FOOT /CGL/BBL/HINDUSTHAN
