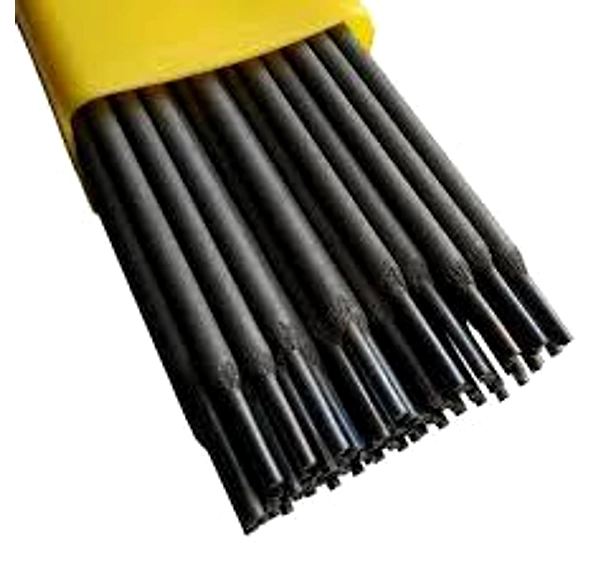

Carbon Steel Electrode

ITC-HSN: 870322

Price on Request

Min Order Qty 1

  • Product not available

The term "window sections (Deluxe series)" likely refers to a specific series or line of window profiles or sections, typically used in the context of architectural and construction applications. The "Deluxe series" suggests a particular product line or brand that offers high-quality and possibly premium window sections for various building projects. While the specific details may vary depending on the manufacturer Additional Information:
Item Code: SLM49A
Production Capacity: 30000

SIVAKUMAR ENTERPRISES

Abdullapuram, India

Business Operations: Merchant

Contact us for


By clicking on ‘Send Trade Enquiry’, you agree to our terms & condition and user policies

Commodity : Stick Electrode
Technique : SCarbon steel
Technical Specification
:
AWS/SFA YIELD
STRENGTH
N/MM2
TENSILE
STRENGTHN/MM2
ELONGATION
A5(%)
IMPACT V (J) -
30°C
WELDING
CONDITIONS
E 6010 ≥380 450-550 ≥24 ≥47 DC(+)
E 6011 ≥380 450-550 ≥24 ≥47 AC/DC (+)
E 7014 ≥400 510-600 ≥24 ≥47 -
E 7016 - H4 450 550-620 30 - -
E 7024 ≥400 510-600 ≥24 ≥64 -
E 6013 ≥380 470-540 ≥24 ≥55 AC/DC(±)
E 7018 ≥450 540-620 ≥27 ≥80 AC/DC(+)
Size :
Key Min/mm Max/mm
Ø 2.40 9.50
Lenth 350 450
Surface Finish : ROUND / The coating is low-hydrogen iron powder, TiO2, CaCO3, and CaF2 (calcium fluoride). The coating is of medium thickness, and the addition of iron powder increases deposition. It freezes relatively fast to enable flat, horizontal, vertical-up, and overhead welding
FINISH : Mill Finish
PACKAGE : Plastic Box Tube pack (Vacuum Packed & & normal pack)
APPLICATION : These electrodes are used with an AC or DC power source for welding steel. Also known as fast-fill electrodes, these electrodes melt quickly and allow for fast travel speeds when welding in a flat, horizontal, or slightly downhill position.
