Bravo Aluminum

Price on Request

Min Order Qty 1

  • Product not available

Bravo Aluminum Motors feature a lightweight aluminum construction, providing efficient performance and reliability. Suitable for a range of industrial applications, these motors offer durability and are ideal for environments where weight and efficiency are crucial.
We are pleased to inform that we have all the regular rating motors in-stock and non-stock motors can be made available within short and flexible delivery period as per customer needs. We assure you our best competitive pricing and commercial terms. We Also Deal In Oxford, Marathon Electric, Crompton & Greaves, Bharat Bijlee, Kirloskar, Abb, Baldor Etc. We Are Glad To Inform You That We Are Already On Vendor List Of Many Big Corporate House & Mnc'S.

MAKHARIA ELECTRICALS PRIVATE LIMITED

Mumbai, India

Contact Seller

Contact us for


By clicking on ‘Send Trade Enquiry’, you agree to our terms & condition and user policies

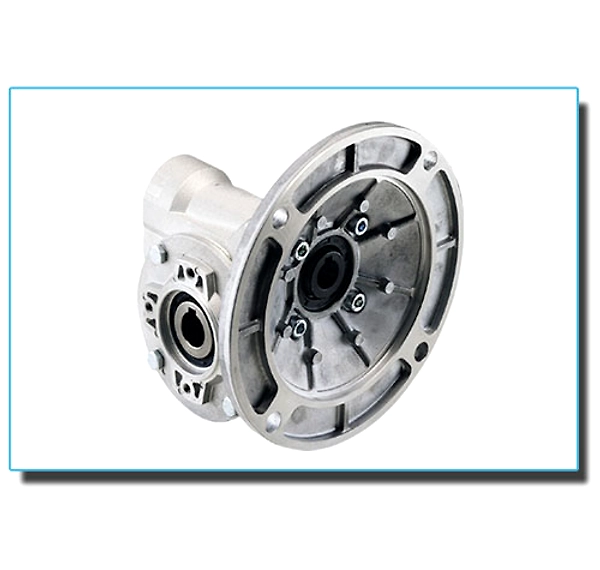

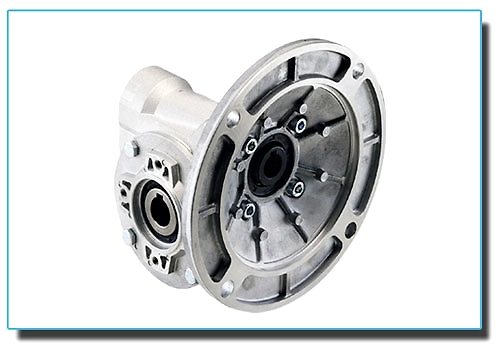

Bravo Aluminum Worm Gear Reducers are ideal for manufacturers of commercial and industrial machinery designing compact and lightweight products. These unique reducers weigh up to two-thirds less and are one-third smaller than comparable cast iron designs. Bravo reducers are available with IEC motorized inputs and metric outputs, making them an excellent replacement of popular worldwide brands.

Specification

  • Center distances from 1.18 through 3.35.
  • Five sizes available with ratings to 7.5 HP.?
  • Available in single and double reduction.
  • Ratios from 7:1 to 70:1.

Standard Features

  • Single-piece aluminum alloy housing.
  • Factory-filled with premium Mobil Glygoyle 460 polyalkalene glycol lubricant USDA Class H1 approved.
  • Vent free design eliminates the potential for leaks.
  • Premium, high-temperature Nitrile output seals.
  • Oversized high-speed bearings, positively retained for frequent reversing and start/stop cycles.?
  • Bronze alloy worm gear is centrifugally cast onto an iron hub for maximum strength, lubricity and superior life.
  • Single-piece alloy steel input shaft and worm shaft.
  • NEMA & metric flange options available.
  • Using a unique modular construction, a variety of accessory mountings are possible without disassembling the reducer including foot kits, reaction arms, output flanges and shaft kits.
  • Mounting dimensions are interchangeable with many worldwide brands.
  • Available pre-assembled with LEESON or Lincoln Motors for the perfect GEAR+MOTOR package.

Accessories

  • T Base Worm Over
  • U Base Worm Under?
  • F Flange
  • FL Flange
  • R Reaction arm
