Min Order Qty 1
Product not available
Ahmedabad, India
Business Operations: Manufacturer, Merchant, Service Provider
Contact us for
| number of HW interfaces other |
1.0
|
|
|---|---|---|
| nominal output power |
0.37 W
|
|
| number of HW interfaces serial RS232 |
0.0
|
|
| number of HW interfaces serial RS422 |
0.0
|
|
| number of HW interfaces serial RS485 |
1.0
|
|
| number of HW interfaces serial TTY |
0.0
|
|
| number of HW interfaces USB |
0.0
|
|
| [Us] rated supply voltage |
200...240 V - 15...10 %
|
|
| number of HW interfaces industrial Ethernet |
0.0
|
|
| number of HW interfaces parallel |
0.0
|
|
| number of HW interfaces PROFINET |
0.0
|
|
| range of product |

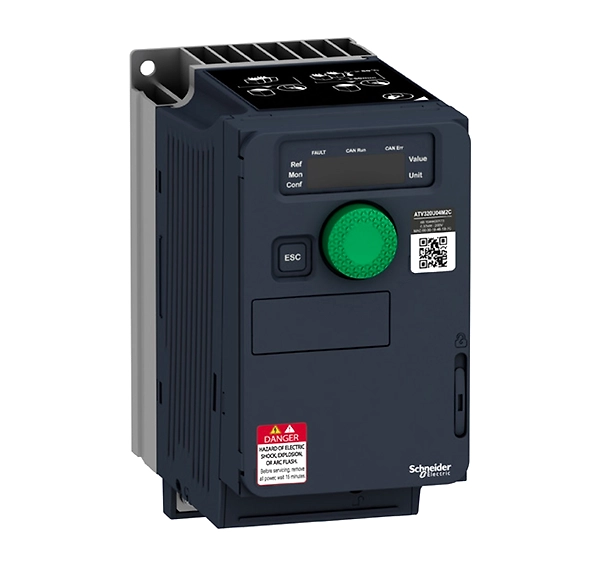

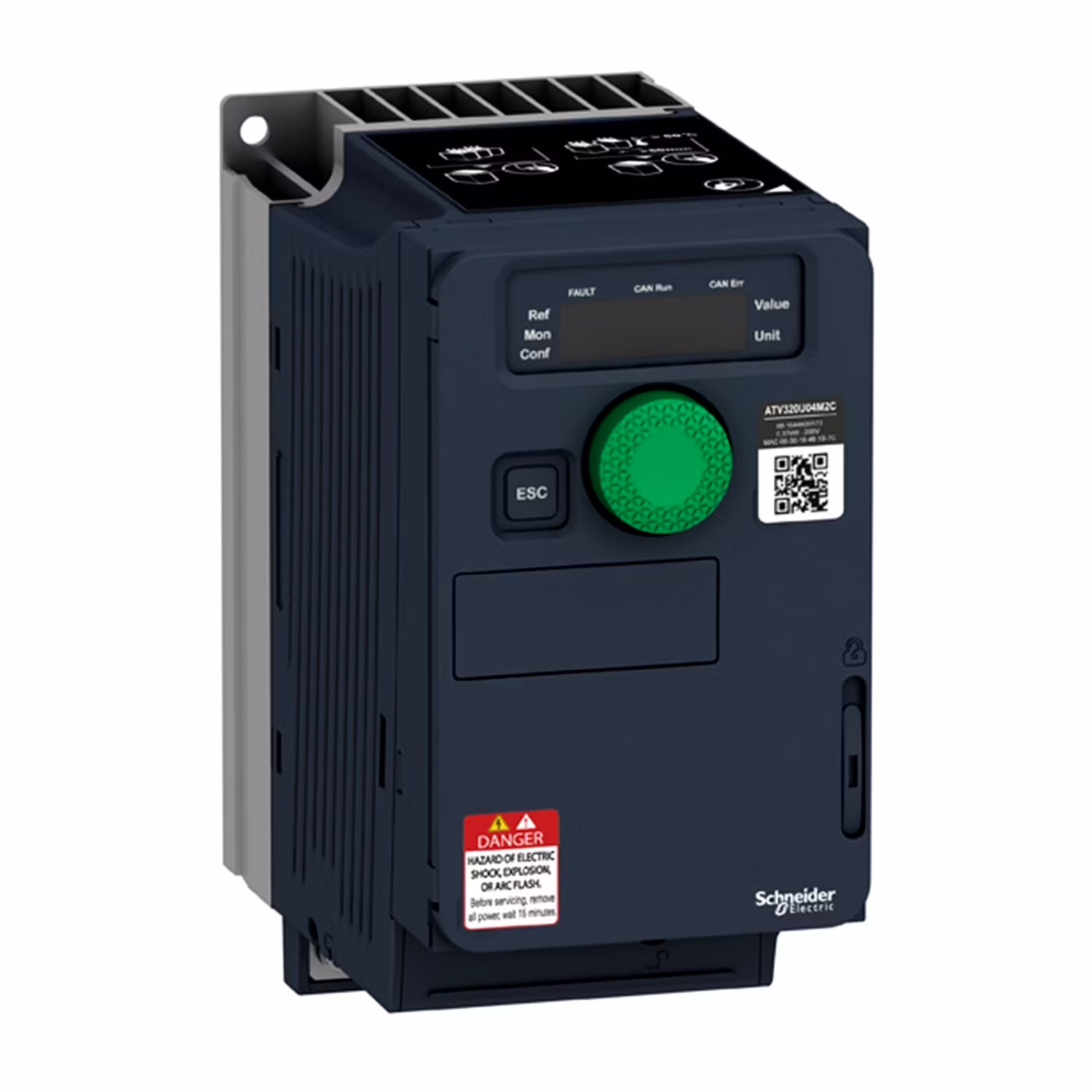

Altivar Machine ATV320
|
|
| line current |
5.9 A at 200 V (heavy duty)
4.9 A at 240 V (heavy duty) |
|
| product or component type |
Variable speed drive
|
|
| prospective line Isc |
1 kA
|
|
| product specific application |
Complex machines
|
|
| device short name |
ATV320
|
|
| variant |
Standard version
|
|
| format of the control block |
Compact
|
|
| continuous output current |
3.3 A at 4 kHz for heavy duty
|
|
| product destination |
Synchronous motors
Asynchronous motors |
|
| EMC filter |
Class C2 EMC filter integrated
|
|
| IP degree of protection |
IP20 conforming to IEC 61800-5-1
IP20 conforming to IEC 60529 |
|
| power range |
0.37...0.55 kW at 200…240 V, 1 phase (based on load duty)
|
|
| asynchronous motor control profile |
Voltage/frequency ratio, 5 points
Flux vector control without sensor, standard Voltage/frequency ratio - Energy Saving, quadratic U/f Flux vector control without sensor - Energy Saving Voltage/frequency ratio, 2 points |
|
| degree of protection |
UL type 1 conforming to UL 61800-5-1 (with conformity kit)
|
|
| synchronous motor control profile |
Vector control without sensor
|
|
| type of cooling |
Fanless
|
|
| speed drive output frequency |
0.1…599 Hz
|
|
| network number of phases |
1 phase
|
|
| nominal switching frequency |
4 kHz
|
|
| supply frequency |
50...60 Hz - 5...5 %
|
|
| switching frequency |
2...16 kHz adjustable
4...16 kHz with derating factor |
|
| motor power kW |
0.37 kW for heavy duty
|
|
| motor power hp |
0.5 hp for heavy duty
|
|
| communication port protocol |
Modbus serial
CANopen |
|
| apparent power |
1.2 kVA at 240 V (heavy duty)
|
|
| output voltage |
<= power supply voltage
|
|
| maximum transient current |
5.0 A during 60 s (heavy duty)
|
|
| permissible temporary current boost |
1.5 x In during 60 s (heavy duty)
|
|
| speed range |
1…100 for asynchronous motor in open-loop mode
|
|
| speed accuracy |
+/- 10 % of nominal slip 0.2 Tn to Tn
|
|
| torque accuracy |
+/- 15 %
|
|
| transient overtorque |
170…200 % of nominal motor torque
|
|
| braking torque |
<= 170 % during 60 s with braking resistor
|
|
| safety function |
STO (safe torque off) SIL 3
SLS (safe limited speed) SS1 (safe stop 1) SMS (safe maximum speed) GDL (guard door locking) |
|
| regulation loop |
Adjustable PID regulator
|
|
| motor slip compensation |
Automatic whatever the load
Adjustable 0...300 % Not available in voltage/frequency ratio (2 or 5 points) |
|
| optional communication modules |
Communication module, CANopen daisy chain RJ45
Communication module, CANopen SUB-D 9 Communication module, CANopen open style terminal block Communication module, EtherCAT RJ45 Communication module, DeviceNet Communication module, Ethernet/IP Communication module, Profibus DP V1 Communication module, Profinet Communication module, Ethernet Powerlink |
|
| acceleration and deceleration ramps |
Linear
U S CUS Ramp switching Acceleration/deceleration ramp adaptation Acceleration/deceleration automatic stop with DC injection |
|
| braking to standstill |
By DC injection
|
|
| protection type |
Input phase breaks: drive
Overcurrent between output phases and earth: drive Overheating protection: drive Short-circuit between motor phases: drive Thermal protection: drive |
|
| frequency resolution |
Display unit: 0.1 Hz
Analog input: 0.012/50 Hz |
|
| electrical connection |
Screw terminal, clamping capacity: 2.5...4 mm², AWG 14...AWG 12 (power supply)
Screw terminal, clamping capacity: 2.5...4 mm², AWG 14...AWG 12 (DC bus) Screw terminal, clamping capacity: 2.5...4 mm², AWG 14...AWG 12 (motor/braking resistor) Screw terminal, clamping capacity: 0.5...1.5 mm², AWG 20...AWG 16 (control) |
|
| connector type |
1 RJ45 (on terminal) for Modbus/CANopen
|
|
| physical interface |
2-wire RS 485 for Modbus serial/CANopen
|
|
| transmission frame |
RTU for Modbus serial
|
|
| transmission rate |
4.8, 9.6, 19.2, 38.4 kbit/s for Modbus serial
50 kbps, 125 kbps, 250 kbps, 500 kbps, 1 Mbps for CANopen |
|
| data format |
8 bits, configurable odd, even or no parity for Modbus serial
|
|
| type of polarization |
No impedance for Modbus serial
|
|
| number of addresses |
1…127 for CANopen
1…247 for Modbus serial |
|
| method of access |
Slave CANopen
|
|
| supply |
Internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 mA, protection type: overload and short-circuit protection
|
|
| local signalling |
1 LED (green)CANopen run:
1 LED (red)CANopen error: 1 LED (red)drive fault: |
|
| width |
72.0 mm
|
|
| height |
143.0 mm
|
|
| depth |
128.0 mm
|
|
| net weight |
1.0 kg
|
|
| analogue input number |
3
|
|
| analogue input type |
AI1 voltage: 0...10 V DC, impedance: 30000 Ohm, resolution 10 bits
AI2 bipolar differential voltage: +/- 10 V DC, impedance: 30000 Ohm, resolution 10 bits AI3 current: 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration), impedance: 250 Ohm, resolution 10 bits |
|
| discrete input number |
7
|
|
| discrete input type |
Programmable (sink/source) (DI1...DI4)24...30 V DC, with level 1 PLC
Programmable as pulse input 20 kpps (DI5)24...30 V DC, with level 1 PLC Switch-configurable PTC probe (DI6)24...30 V DC Safe torque off (STO)24...30 V DC - 1500 Ohm |
|
| discrete input logic |
Negative logic (sink) (DI1...DI6), > 19 V (state 0), < 13 V (state 1)
Positive logic (source) (DI1...DI6), < 5 V (state 0), > 11 V (state 1) |
|
| analogue output number |
1
|
|
| analogue output type |
AQ1 software-configurable current: 0...20 mA, impedance: 800 Ohm, resolution 10 bits
AQ1 software-configurable voltage: 0...10 V, impedance: 470 Ohm, resolution 10 bits |
|
| sampling duration |
2 ms (AI1, AI2, AI3) - analog input
2 ms (AQ1) - analog output |
|
| accuracy |
+/- 0.2 % AI1, AI2, AI3 for a temperature of -10...60 °C analog input
+/- 0.5 % AI1, AI2, AI3 for a temperature of 25 °C analog input +/- 1 % AQ1 for a temperature of 25 °C analog output +/- 2 % AQ1 for a temperature of -10...60 °C analog output |
|
| linearity error |
AI1, AI2, AI3: +/- 0.2...0.5 % of maximum value for analog input
AQ1: +/- 0.3 % for analog output |
|
| discrete output number |
3
|
|
| discrete output type |
Configurable relay logic: (R1A, R1B, R1C) NO/NC - 100000 cycles
Configurable relay logic: (R2A, R2B) NO - 100000 cycles Logic: (LO) |
|
| refresh time |
Logic input (DI1...DI6): 8 ms (+/- 0.7 ms)
Relay output (R1A, R1B, R1C): 2 ms Relay output (R2A, R2C): 2 ms |
|
| minimum switching current |
Relay output R1, R2: 5 mA at 24 V DC
|
|
| maximum switching current |
Relay output R1 on resistive load, cos phi = 1: 3 A at 250 V AC
Relay output R1 on resistive load, cos phi = 1: 4 A at 30 V DC Relay output R1, R2 on inductive load, cos phi = 0.4: 2 A at 250 V AC Relay output R1, R2 on inductive load, cos phi = 0.4: 2 A at 30 V DC Relay output R2 on resistive load, cos phi = 1: 5 A at 250 V AC Relay output R2 on resistive load, cos phi = 1: 5 A at 30 V DC |
|
| isolation |
Between power and control terminals
|
|
| insulation resistance |
> 1 MOhm 500 V DC for 1 minute to earth
|
|
| noise level |
0.0 dB conforming to 86/188/EEC
|
|
| power dissipation in W |
Self-cooled: 30.0 W at 200 V, switching frequency 4 kHz
|
|
| operating position |
Vertical +/- 10 degree
|
|
| operating altitude |
<= 1000 m without derating
1000...2000 m with current derating 1 % per 100 m |
|
| standards |
EN/IEC 61800-3
Environment 1 category C2 EN/IEC 61800-3 Environment 2 category C3 EN/IEC 61800-3 EN/IEC 61800-5-1 IEC 60721-3 IEC 61508 IEC 13849-1 UL 508C UL 61800-5-1 CSA C22.2 No 274 |
|
| product certifications |
CE
ATEX NOM GOST EAC RCM KC REACH |
|
| marking |
CE
ATEX UL CSA EAC RCM |
| electromagnetic compatibility |
Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 Voltage dips and interruptions immunity test conforming to IEC 61000-4-11 |
|
|---|---|---|
| pollution degree |
2 conforming to EN/IEC 61800-5-1
|
|
| vibration resistance |
1 gn (f= 13…200 Hz) conforming to EN/IEC 60068-2-6
1.5 mm peak to peak (f= 2…13 Hz) conforming to EN/IEC 60068-2-6 |
|
| shock resistance |
15 gn for 11 ms conforming to EN/IEC 60068-2-27
|
|
| relative humidity |
5…95 % without condensation conforming to IEC 60068-2-3
5…95 % without dripping water conforming to IEC 60068-2-3 |
|
| ambient air temperature for operation |
-10…50 °C without derating
50…60 °C with derating factor |
|
| ambient air temperature for storage |
-25…70 °C
|
|
| environmental characteristic |
Chemical pollution resistance class 3C3 conforming to EN/IEC 60721-3-3
Dust pollution resistance class 3S2 conforming to EN/IEC 60721-3-3 |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
1.181 kg
|
|
| Package 1 Height |
11.5 cm
|
|
| Package 1 width |
18.7 cm
|
|
| Package 1 Length |
19 cm
|
|
| Unit Type of Package 2 |
P06
|
|
| Number of Units in Package 2 |
45
|
|
| Package 2 Weight |
66.15 kg
|
|
| Package 2 Height |
80 cm
|
|
| Package 2 width |
80 cm
|
|
| Package 2 Length |
60 cm
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
|---|---|---|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| Circularity Profile | ||
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
