Min Order Qty 1
Product not available
Ahmedabad, India
Business Operations: Manufacturer, Merchant, Service Provider
Contact us for
| range of product |

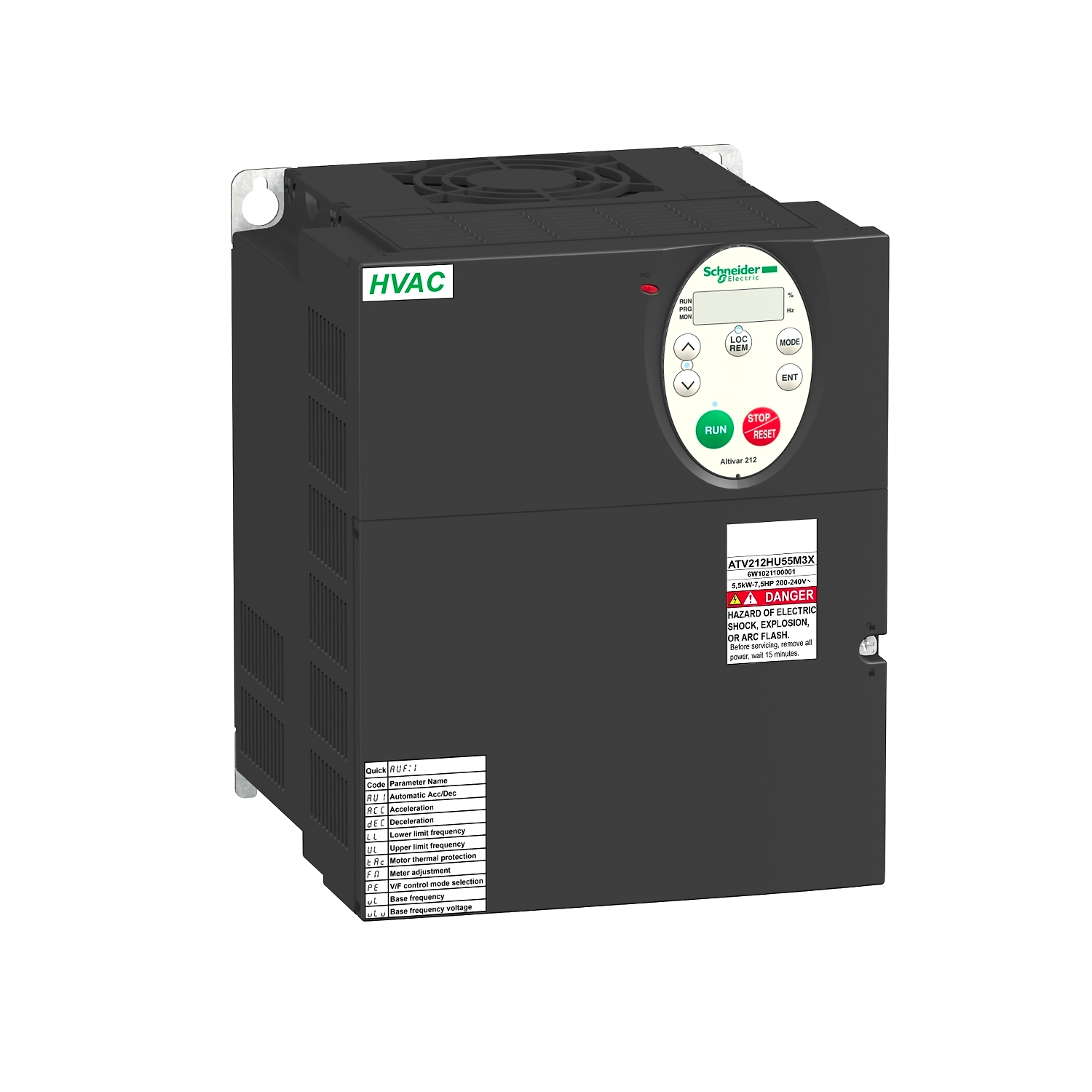

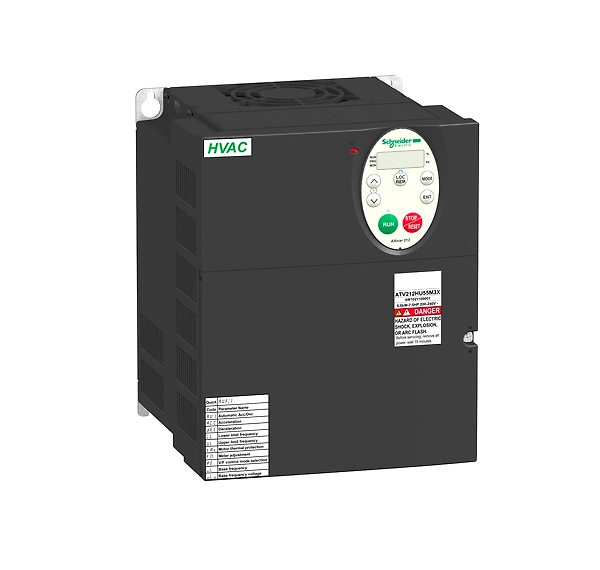

Altivar 212
|
|
|---|---|---|
| product or component type |
Variable speed drive
|
|
| device short name |
ATV212
|
|
| product destination |
Asynchronous motors
|
|
| product specific application |
Pumps and fans in HVAC
|
|
| assembly style |
With heat sink
|
|
| network number of phases |
3 phases
|
|
| motor power kW |
5.5 kW
|
|
| motor power hp |
7.5 hp
|
|
| [Us] rated supply voltage |
200...240 V - 15...10 %
|
|
| supply voltage limits |
170…264 V
|
|
| supply frequency |
50...60 Hz - 5...5 %
|
|
| EMC filter |
Without EMC filter
|
|
| line current |
17.3 A at 240 V
20.8 A at 200 V |
| apparent power |
9.2 kVA at 240 V
|
|
|---|---|---|
| prospective line Isc |
22 kA
|
|
| continuous output current |
24.2 A at 230 V
|
|
| maximum transient current |
26.6 A for 60 s
|
|
| speed drive output frequency |
0.5…200 Hz
|
|
| nominal switching frequency |
12 kHz
|
|
| switching frequency |
6...16 kHz adjustable
12...16 kHz with derating factor |
|
| speed range |
1…10
|
|
| speed accuracy |
+/- 10 % of nominal slip 0.2 Tn to Tn
|
|
| torque accuracy |
+/- 15 %
|
|
| transient overtorque |
120 % of nominal motor torque +/- 10 % for 60 s
|
|
| asynchronous motor control profile |
Voltage/frequency ratio - Energy Saving, quadratic U/f
Flux vector control without sensor, standard Voltage/frequency ratio, 2 points Voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo) Voltage/frequency ratio, 5 points |
|
| regulation loop |
Adjustable PI regulator
|
|
| motor slip compensation |
Not available in voltage/frequency ratio motor control
Adjustable Automatic whatever the load |
|
| local signalling |
1 LED (red)DC bus energized:
|
|
| output voltage |
<= power supply voltage
|
|
| isolation |
Electrical between power and control
|
|
| type of cable |
Without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 90 °C / XLPE/EPR
Without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 70 °C / PVC With UL Type 1 kit: 3 wire(s)UL 508 cable at 40 °C, copper 75 °C / PVC |
|
| electrical connection |
VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES: terminal 2.5 mm² / AWG 14
L1/R, L2/S, L3/T: terminal 16 mm² / AWG 6 |
|
| tightening torque |
0.6 N.m (VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES)
2.5 N.m, 22 lb.in (L1/R, L2/S, L3/T) |
|
| supply |
Internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 A, protection type: overload and short-circuit protection
Internal supply: 24 V DC (21…27 V), <200 A, protection type: overload and short-circuit protection |
|
| analogue input number |
2
|
|
| analogue input type |
VIA switch-configurable voltage: 0...10 V DC 24 V max, impedance: 30000 Ohm, resolution 10 bits
VIB configurable voltage: 0...10 V DC 24 V max, impedance: 30000 Ohm, resolution 10 bits VIB configurable PTC probe: 0...6 probes, impedance: 1500 Ohm VIA switch-configurable current: 0...20 mA, impedance: 250 Ohm, resolution 10 bits |
|
| sampling duration |
2 ms +/- 0.5 ms F discrete
2 ms +/- 0.5 ms R discrete 2 ms +/- 0.5 ms RES discrete 3.5 ms +/- 0.5 ms VIA analog 22 ms +/- 0.5 ms VIB analog |
|
| response time |
FM 2 ms, tolerance +/- 0.5 ms for analog output(s)
FLA, FLC 7 ms, tolerance +/- 0.5 ms for discrete output(s) FLB, FLC 7 ms, tolerance +/- 0.5 ms for discrete output(s) RY, RC 7 ms, tolerance +/- 0.5 ms for discrete output(s) |
|
| accuracy |
+/- 0.6 % (VIA) for a temperature variation 60 °C
+/- 0.6 % (VIB) for a temperature variation 60 °C +/- 1 % (FM) for a temperature variation 60 °C |
|
| linearity error |
VIA: +/- 0.15 % of maximum value for input
VIB: +/- 0.15 % of maximum value for input FM: +/- 0.2 % for output |
|
| analogue output number |
1
|
|
| analogue output type |
FM switch-configurable voltage 0...10 V DC, impedance: 7620 Ohm, resolution 10 bits
FM switch-configurable current 0...20 mA, impedance: 970 Ohm, resolution 10 bits |
|
| discrete output number |
2
|
|
| discrete output type |
Configurable relay logic: (FLA, FLC) NO - 100000 cycles
Configurable relay logic: (FLB, FLC) NC - 100000 cycles Configurable relay logic: (RY, RC) NO - 100000 cycles |
|
| minimum switching current |
3 mA at 24 V DC for configurable relay logic
|
|
| maximum switching current |
5 A at 250 V AC on resistive load - cos phi = 1 - L/R = 0 ms (FL, R)
5 A at 30 V DC on resistive load - cos phi = 1 - L/R = 0 ms (FL, R) 2 A at 250 V AC on inductive load - cos phi = 0.4 - L/R = 7 ms (FL, R) 2 A at 30 V DC on inductive load - cos phi = 0.4 - L/R = 7 ms (FL, R) |
|
| discrete input type |
F programmable 24 V DC, with level 1 PLC, impedance: 4700 Ohm
R programmable 24 V DC, with level 1 PLC, impedance: 4700 Ohm RES programmable 24 V DC, with level 1 PLC, impedance: 4700 Ohm |
|
| discrete input logic |
Positive logic (source) (F, R, RES), <= 5 V (state 0), >= 11 V (state 1)
Negative logic (sink) (F, R, RES), >= 16 V (state 0), <= 10 V (state 1) |
|
| acceleration and deceleration ramps |
Linear adjustable separately from 0.01 to 3200 s
Automatic based on the load |
|
| braking to standstill |
By DC injection
|
|
| protection type |
Overheating protection: drive
Thermal power stage: drive Short-circuit between motor phases: drive Input phase breaks: drive Overcurrent between output phases and earth: drive Overvoltages on the DC bus: drive Break on the control circuit: drive Against exceeding limit speed: drive Line supply overvoltage and undervoltage: drive Line supply undervoltage: drive Against input phase loss: drive Thermal protection: motor Motor phase break: motor With PTC probes: motor |
|
| dielectric strength |
2830 V DC between earth and power terminals
4230 V DC between control and power terminals |
|
| insulation resistance |
>= 1 mOhm 500 V DC for 1 minute
|
|
| frequency resolution |
Display unit: 0.1 Hz
Analog input: 0.024/50 Hz |
|
| communication port protocol |
METASYS N2
APOGEE FLN LonWorks BACnet Modbus |
|
| connector type |
1 open style
1 RJ45 |
|
| physical interface |
2-wire RS 485
|
|
| transmission frame |
RTU
|
|
| transmission rate |
9600 bps or 19200 bps
|
|
| data format |
8 bits, 1 stop, odd even or no configurable parity
|
|
| type of polarization |
No impedance
|
|
| number of addresses |
1…247
|
|
| communication service |
Read holding registers (03) 2 words maximum
Write multiple registers (16) 2 words maximum Write single register (06) Time out setting from 0.1 to 100 s Monitoring inhibitable Read device identification (43) |
|
| option card |
Communication card for LonWorks
|
|
| operating position |
Vertical +/- 10 degree
|
|
| width |
180 mm
|
|
| height |
232 mm
|
|
| depth |
170 mm
|
|
| net weight |
6.1 kg
|
|
| power dissipation in W |
249 W
|
|
| air flow |
85 m3/h
|
|
| specific application |
HVAC
|
|
| IP degree of protection |
IP21
|
|
| Variable speed drive application selection |
Building - HVAC Compressor for scroll
Building - HVAC Fan Building - HVAC Pump |
|
| Motor power range AC-3 |
4…6 kW at 200…240 V 3 phases
|
|
| motor starter type |
Variable speed drive
|
| electromagnetic compatibility |
Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 Voltage dips and interruptions immunity test conforming to IEC 61000-4-11 |
|
|---|---|---|
| pollution degree |
3 conforming to IEC 61800-5-1
|
|
| IP degree of protection |
IP20 on upper part without blanking plate on cover conforming to EN/IEC 61800-5-1
IP20 on upper part without blanking plate on cover conforming to EN/IEC 60529 IP21 conforming to EN/IEC 61800-5-1 IP21 conforming to EN/IEC 60529 IP41 on upper part conforming to EN/IEC 61800-5-1 IP41 on upper part conforming to EN/IEC 60529 |
|
| vibration resistance |
1.5 mm (f= 3…13 Hz) conforming to EN/IEC 60068-2-6
1 gn (f= 13…200 Hz) conforming to EN/IEC 60068-2-8 |
|
| shock resistance |
15 gn for 11 ms conforming to IEC 60068-2-27
|
|
| environmental characteristic |
Classes 3C1 conforming to IEC 60721-3-3
Classes 3S2 conforming to IEC 60721-3-3 |
|
| noise level |
51 dB conforming to 86/188/EEC
|
|
| operating altitude |
1000...3000 m limited to 2000 m for the Corner Grounded distribution network with current derating 1 % per 100 m
<= 1000 m without derating |
|
| relative humidity |
5…95 % without condensation conforming to IEC 60068-2-3
5…95 % without dripping water conforming to IEC 60068-2-3 |
|
| ambient air temperature for operation |
-10…40 °C (without derating)
40…50 °C (with derating factor) |
|
| ambient air temperature for storage |
-25…70 °C
|
|
| standards |
IEC 61800-3
EN 61800-3 environments 2 category C1 IEC 61800-3 environments 1 category C3 EN 61800-3 environments 1 category C3 IEC 61800-5-1 IEC 61800-3 environments 1 category C1 EN 61800-3 EN 61800-3 environments 2 category C2 EN 61800-3 environments 1 category C1 EN 61800-3 environments 2 category C3 IEC 61800-3 environments 1 category C2 IEC 61800-3 environments 2 category C3 IEC 61800-3 environments 2 category C1 EN 61800-3 environments 1 category C2 EN 61800-5-1 UL Type 1 IEC 61800-3 environments 2 category C2 |
|
| product certifications |
NOM 117
UL C-Tick CSA |
|
| marking |
CE
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
5.732 kg
|
|
| Package 1 Height |
27 cm
|
|
| Package 1 width |
29.5 cm
|
|
| Package 1 Length |
23.5 cm
|
|
| Unit Type of Package 2 |
P06
|
|
| Number of Units in Package 2 |
10
|
|
| Package 2 Weight |
70.32 kg
|
|
| Package 2 Height |
80 cm
|
|
| Package 2 width |
80 cm
|
|
| Package 2 Length |
60 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| Circularity Profile | ||
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
| Warranty |
18 months
|
|---|
