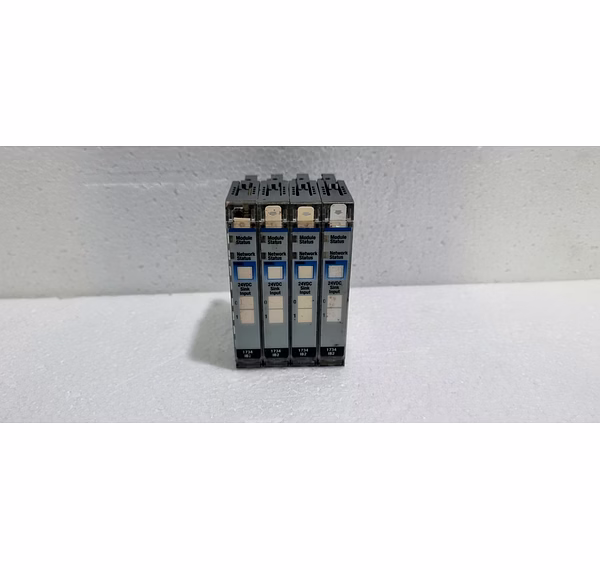

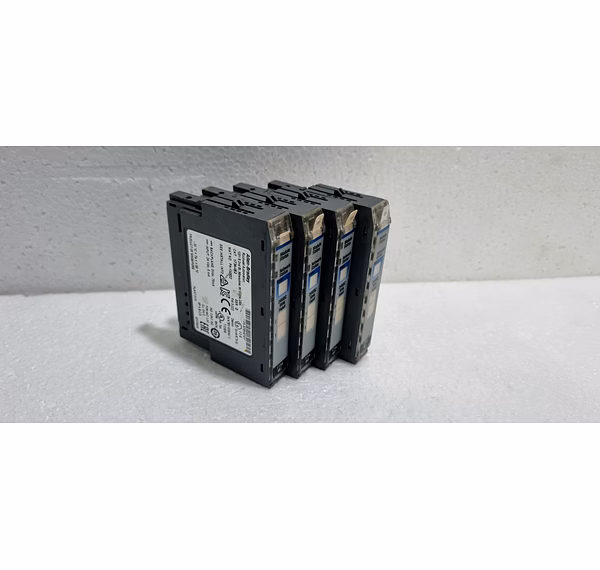

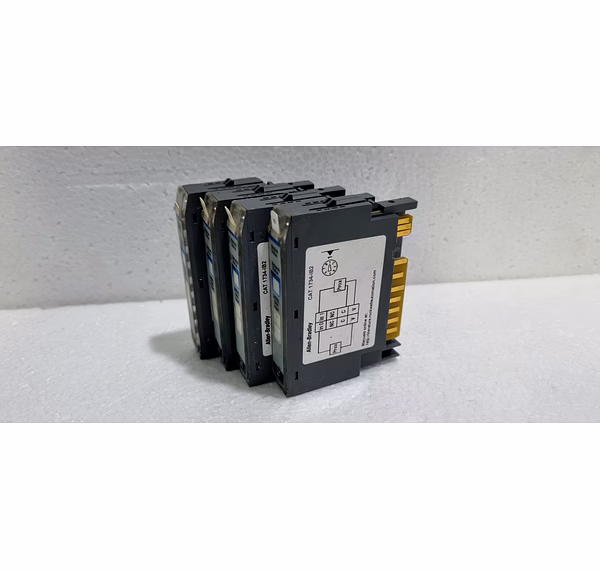

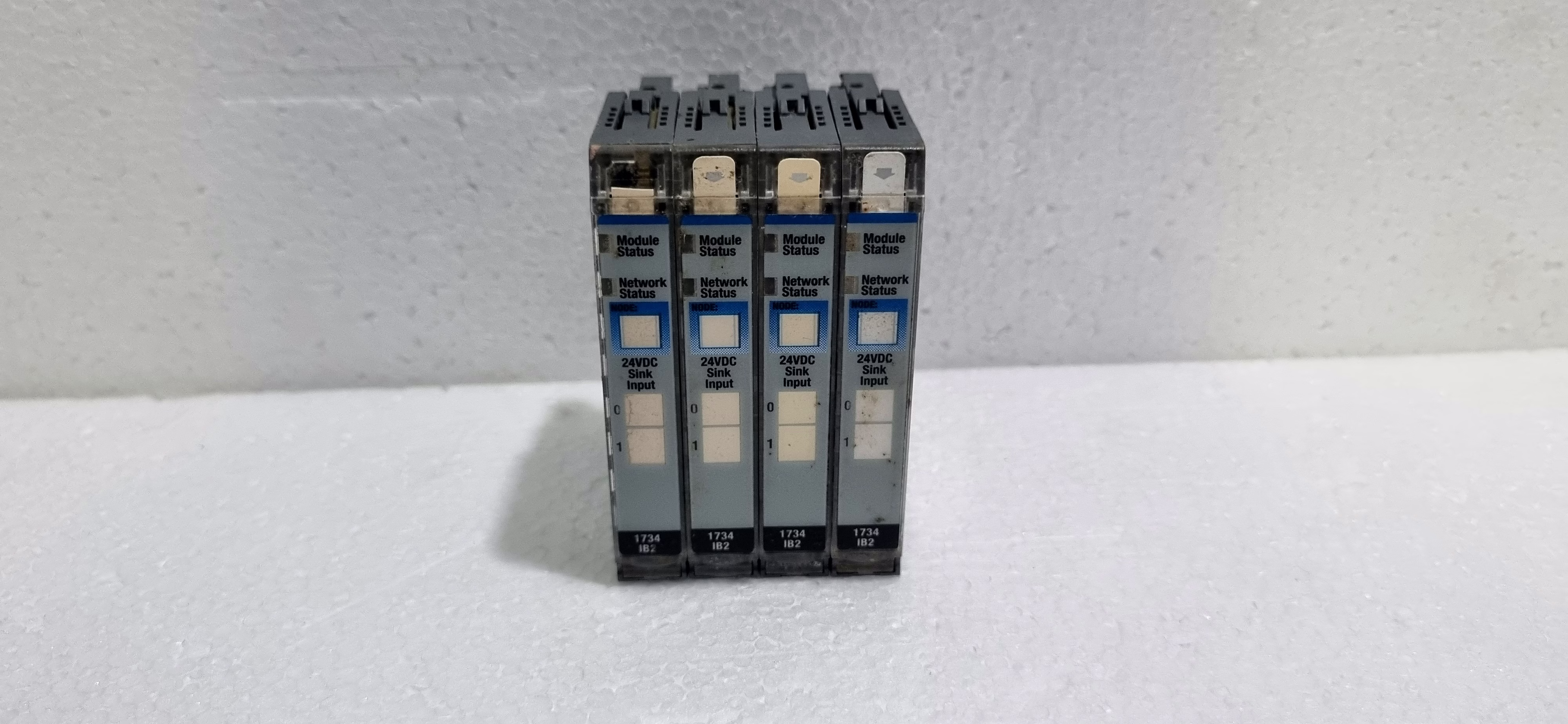

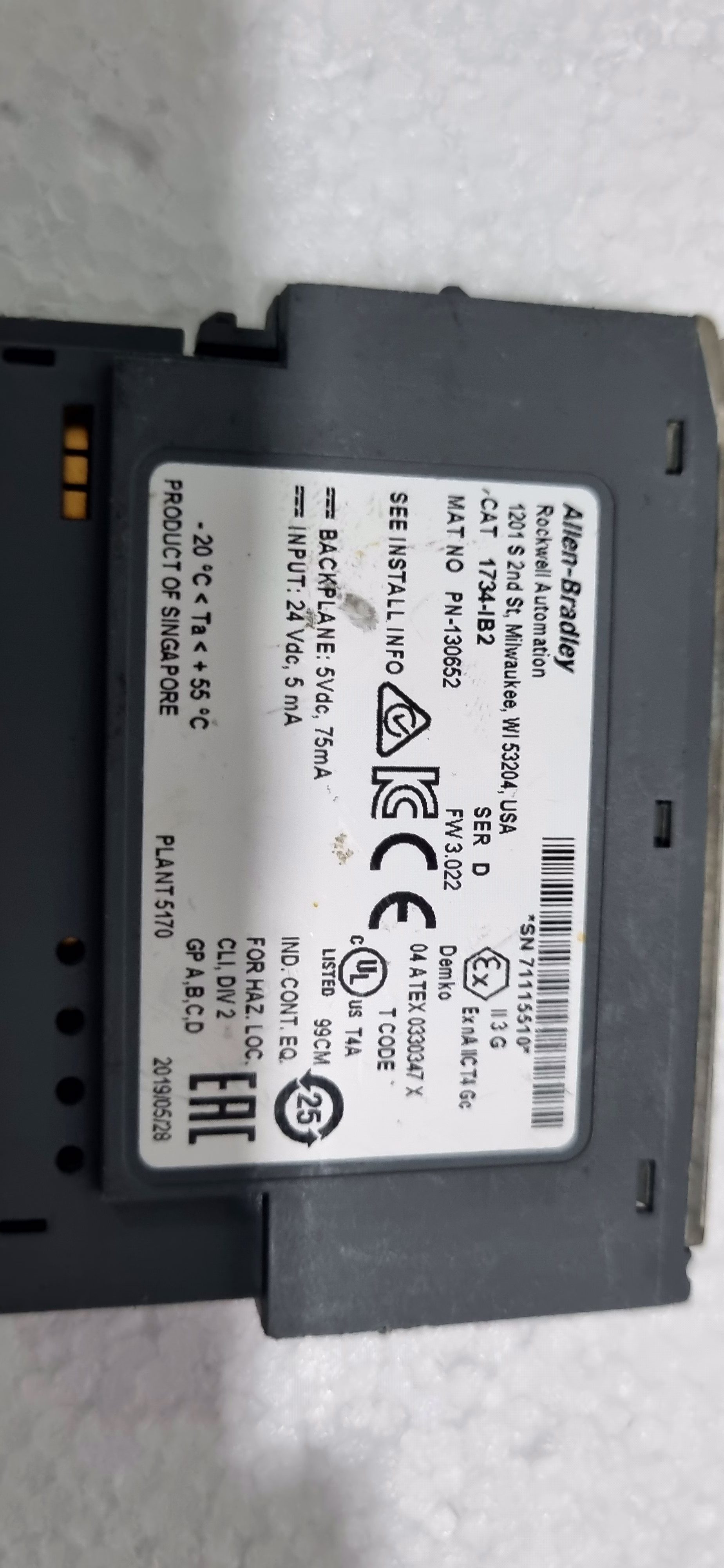

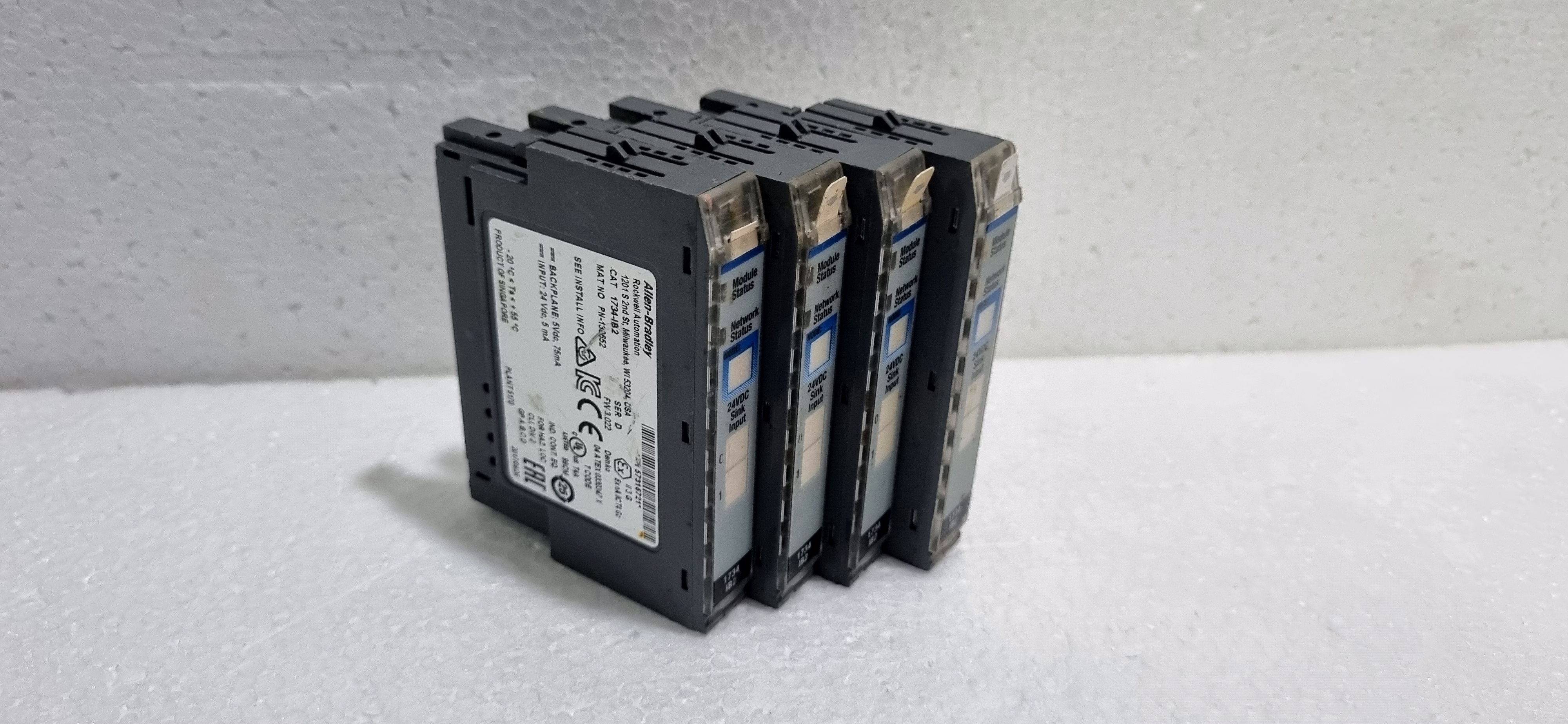

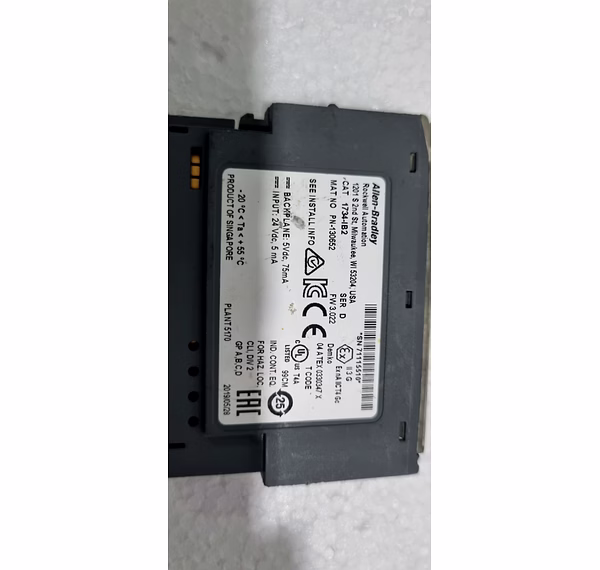

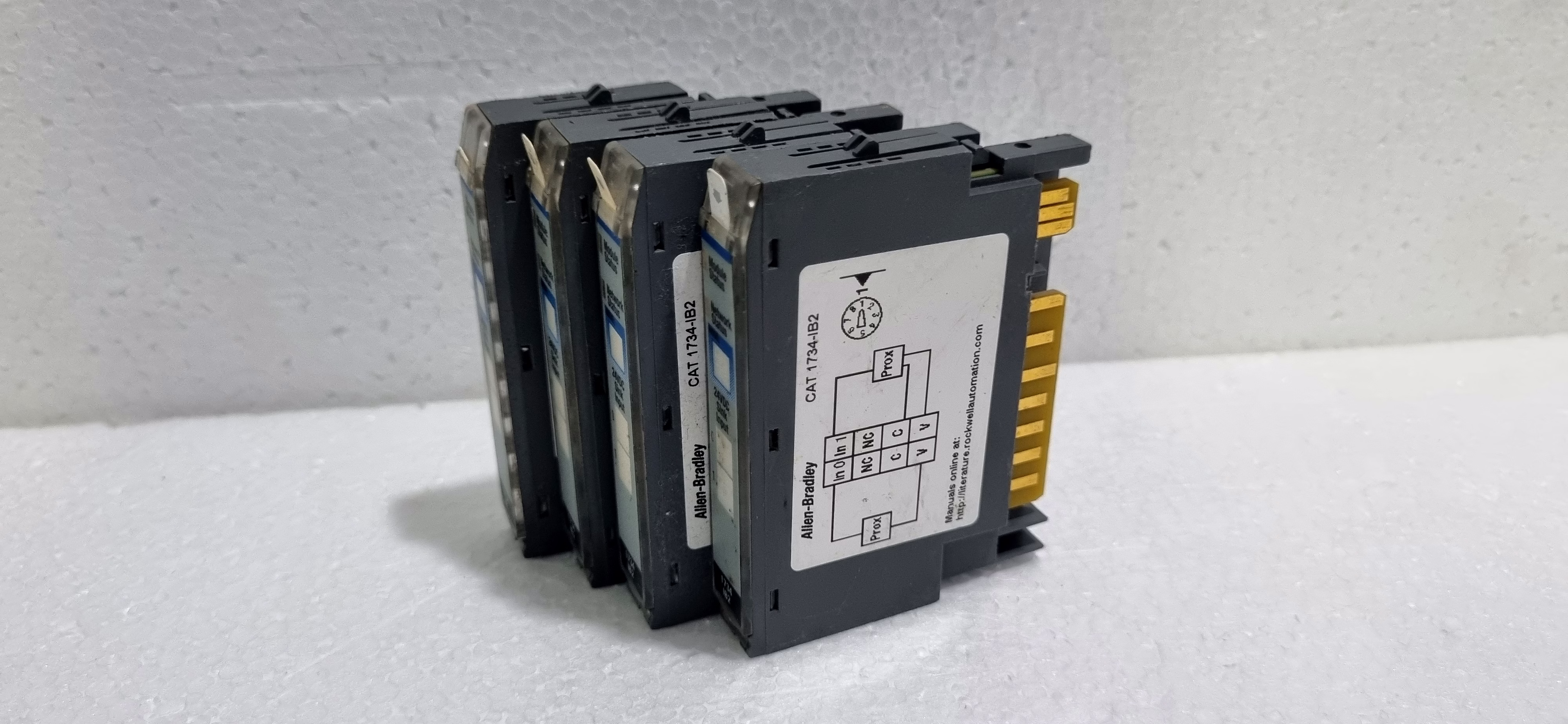

ALLEN BRADLEY 1734-IB2 DIGITAL INPUT MODULE – 2 POINTS

The Allen-Bradley 1734-IB2 is a compact and reliable POINT I/O digital input module designed for distributed control applications. It provides 2 discrete sinking-type digital input channels, suitable for reading ON/OFF signals from field devices in industrial automation systems.

Key Features

Model: 1734-IB2

Type: Digital Input Module

Number of Inputs: 2 points

Input Type: Sinking digital inputs

Input Voltage: 24V DC nominal

Backplane/POINTBus Current: Approx. 75 mA

Power Dissipation: Around 0.7 W

Status Indicators: Individual yellow LED indicators for each input

Mounting: DIN-rail via compatible POINT I/O base (e.g., 1734-TB or 1734-TBS)

Compact & lightweight design for flexible installation

Typical Uses

Reading signals from field devices such as:

Pushbuttons

Limit switches

Proximity sensors

Other 24V DC digital sensors

Ideal for machine control, packaging lines, and modular distributed I/O setups.
