Min Order Qty 1
Product not available
Ahmedabad, India
Business Operations: Manufacturer, Merchant, Service Provider
Contact us for
| range of product |

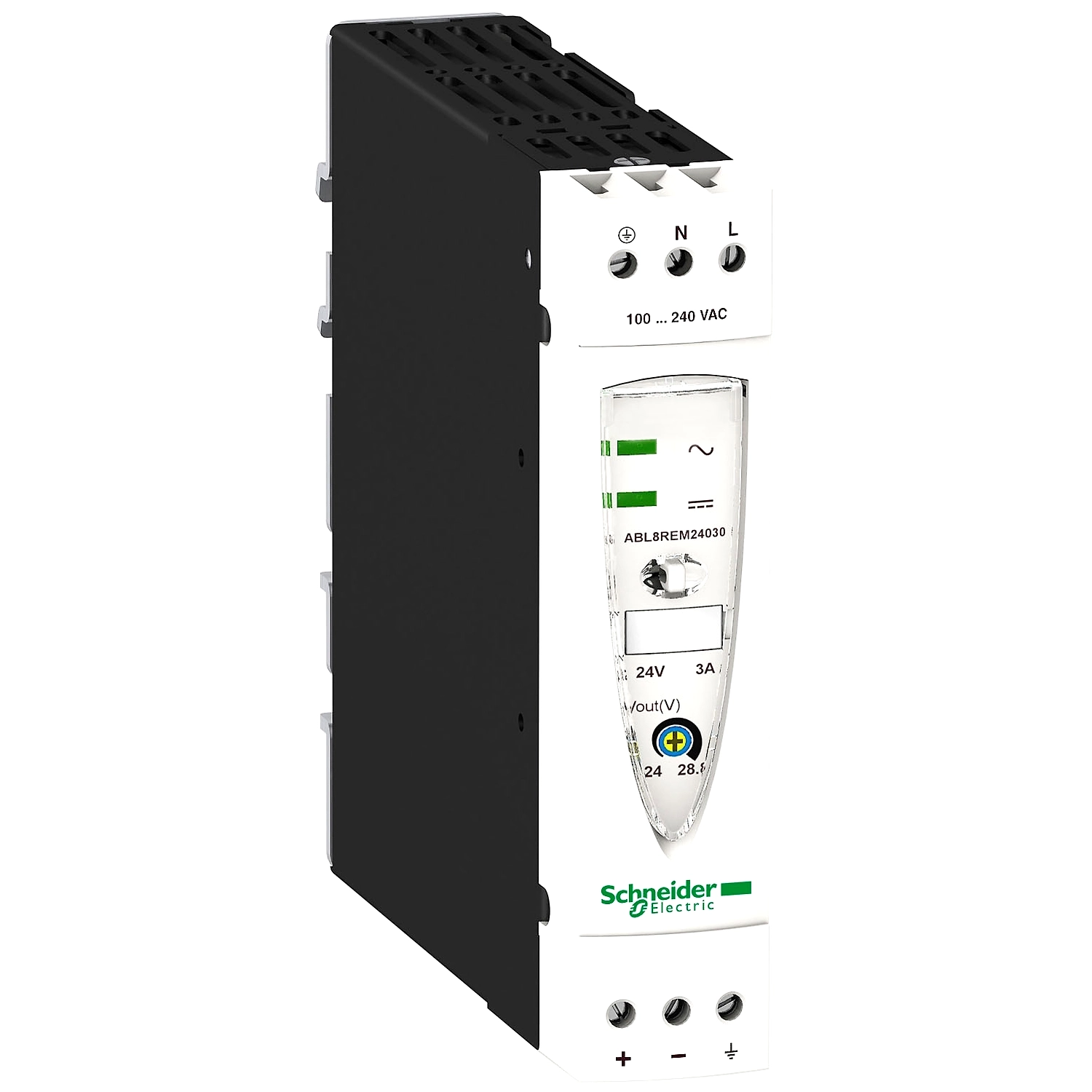

Modicon Power Supply
|
|
|---|---|---|
| product or component type |
Power supply
|
|
| power supply type |
Regulated switch mode
|
|
| Nominal input voltage |
100...240 V AC phase to phase, terminal(s): L1-L2
100...240 V AC single phase, terminal(s): N-L1 110...220 V DC |
|
| input voltage limits |
85...264 V AC
100...250 V AC |
|
| rated power in W |
72 W
|
|
| output voltage |
24 V DC
|
|
| power supply output current |
3 A
|
| input protection type |
Integrated fuse (not interchangeable)
|
|
|---|---|---|
| inrush current |
30 A
|
|
| [Ue] rated operational voltage |
24 V DC 0.65
|
|
| efficiency |
85 %
|
|
| Output voltage adjustment |
100...120 % adjustable
|
|
| power dissipation in W |
12.7 W
|
|
| current consumption |
0.83 A 240 V AC
1.46 A 100 V AC |
|
| output protection type |
Against overload, protection technology: 1.1 x In
Against overvoltage, protection technology: tripping if U > 1.5 x Un Against short-circuits, protection technology: automatic reset Against undervoltage, protection technology: tripping if U < 0.8 x Un |
|
| connections - terminals |
Screw type terminals: 2 x 0.14...2 x 2.5 mm², (AWG 26...AWG 14) for input connection
Screw type terminals: 1 x 0.14...1 x 2.5 mm², (AWG 26...AWG 14) for input ground connection Screw type terminals: 2 x 0.14...2 x 2.5 mm², (AWG 26...AWG 14) for output connection Screw type terminals: 1 x 0.14...1 x 2.5 mm², (AWG 26...AWG 14) for output ground connection |
|
| status LED |
1 LED (green)output voltage:
1 LED (orange)input voltage: |
|
| depth |
120 mm
|
|
| height |
120 mm
|
|
| width |
27 mm
|
|
| net weight |
0.52 kg
|
|
| output coupling |
Parallel
Series |
|
| marking |
CE
|
|
| mounting support |
35 x 15 mm symmetrical DIN rail
35 x 7.5 mm symmetrical DIN rail 75 x 7.5 mm symmetrical DIN rail |
|
| operating position |
Vertical
|
| standards |
UL 508
CSA C22.2 No 60950-1 |
|
|---|---|---|
| product certifications |
CSA 22-2 No 950
EAC RCM KC UL |
|
| environmental characteristic |
EMC conforming to EN 50081-1
EMC conforming to EN 50082-2 EMC conforming to EN 55024 Safety conforming to EN/IEC 60950 Safety conforming to SELV |
|
| operating altitude |
2000 m
|
|
| IP degree of protection |
IP20 conforming to EN/IEC 60529
|
|
| ambient air temperature for operation |
0…50 °C (without)
50…60 °C (with derating factor) |
|
| ambient air temperature for storage |
-25…70 °C
|
|
| relative humidity |
0…95 % without condensation or dripping water
|
|
| dielectric strength |
3000 V between input and ground
3000 V between input and output 500 V between output and ground 500 V between outputs |
| Package 1 Weight |
280.000 g
|
|
|---|---|---|
| Package 1 Height |
0.410 dm
|
|
| Package 1 width |
1.380 dm
|
|
| Package 1 Length |
1.470 dm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| Circularity Profile | ||
| PVC free |
Yes
|
| Warranty |
18 months
|
|---|
