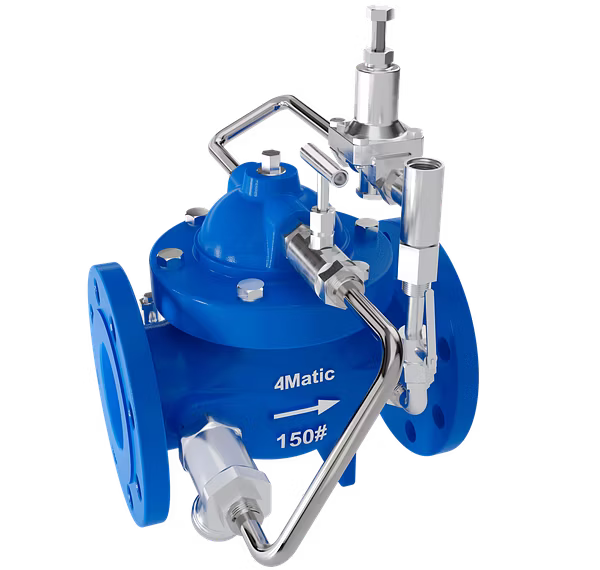

4MRPS Series Pilot Operated Pressure Reducing Valve

ITC-HSN: 84811000

506.26 / NOS (Numbers)

Min Order Qty 1 NOS (Numbers)

Accept Small Orders

Fulfilment Capacity (Per Month): 500 NOS (Numbers)/month

  • Product not available

4MRPS Series Pilot Operated PRV is basically designed for the applications where there is a need To reduce the high level inlet pressure to a safe and consistent level of pressure per the requirement of a particular application. Following figure displays three main constituents of 4MRPS Series Pilot Operated PRV.


Salient Features :

  • Pipe breakage because of high pressure can be prevented through the use of Pressure Reducing Valve.
    Corrosion resistance is enhanced due to Epoxy Coating.
  • Adaptability as far as sealing options are concerned. NBR, EPDM other material on request.
  • High grade materials and robust design, provides durability to the PRV.
  • Through the installation of Pressure Reducing Valve in the water supply pipeline, the outlet pressure
    is maintained, regardless of the different inlet pressure.

Business Operations: Manufacturer

Contact us for


By clicking on ‘Send Trade Enquiry’, you agree to our terms & condition and user policies


Why Choose 4Matic PRVs?
The 4Matic Pilot Operated PRV isn’t just a valve it’s a commitment to safety, reliability, and innovation. Whether you’re operating in water distribution, industrial processing, or critical infrastructure, this valve delivers unmatched performance tailored to your needs.


Applications:

  • Water Distribution Systems: Ensures pressure regulation for efficient water flow.
  • Industrial Pipelines: Safeguards systems in chemical plants, oil & gas refineries, and beyond.
  • Critical Infrastructure: Provides reliable pressure management in high-stakes operations.

Specification :

  • Body : CI / WCB / CF8 / CF8M
  • Size Range : 1.1/2" To 32"
  • Temperature : Up To 150°C
  • Max Inlet Pre. : 12 kg / cm²
  • Pre. Adjusting Range : 1-6 kg / cm² | 4-10 kg / cm² | 10-16 kg / cm²
  • Seal : NBR / EPDM / Viton
  • Ends : Flanged
  • Application : Water / Oil / Gas
