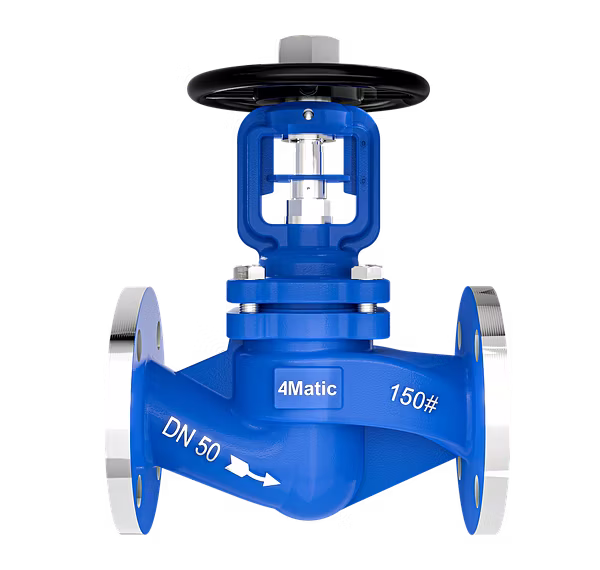

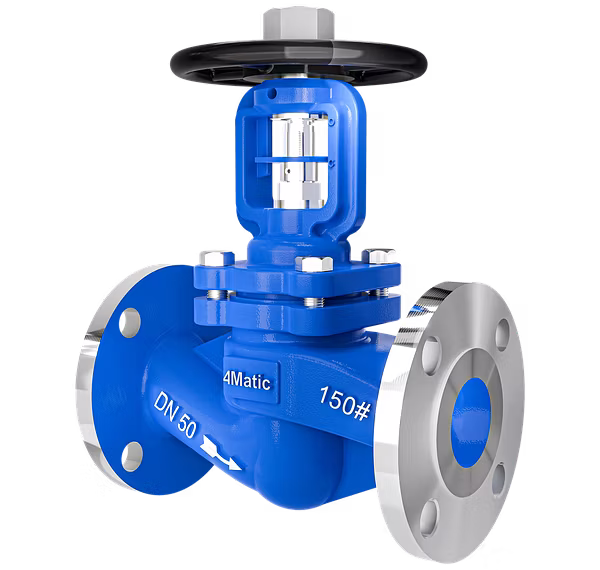

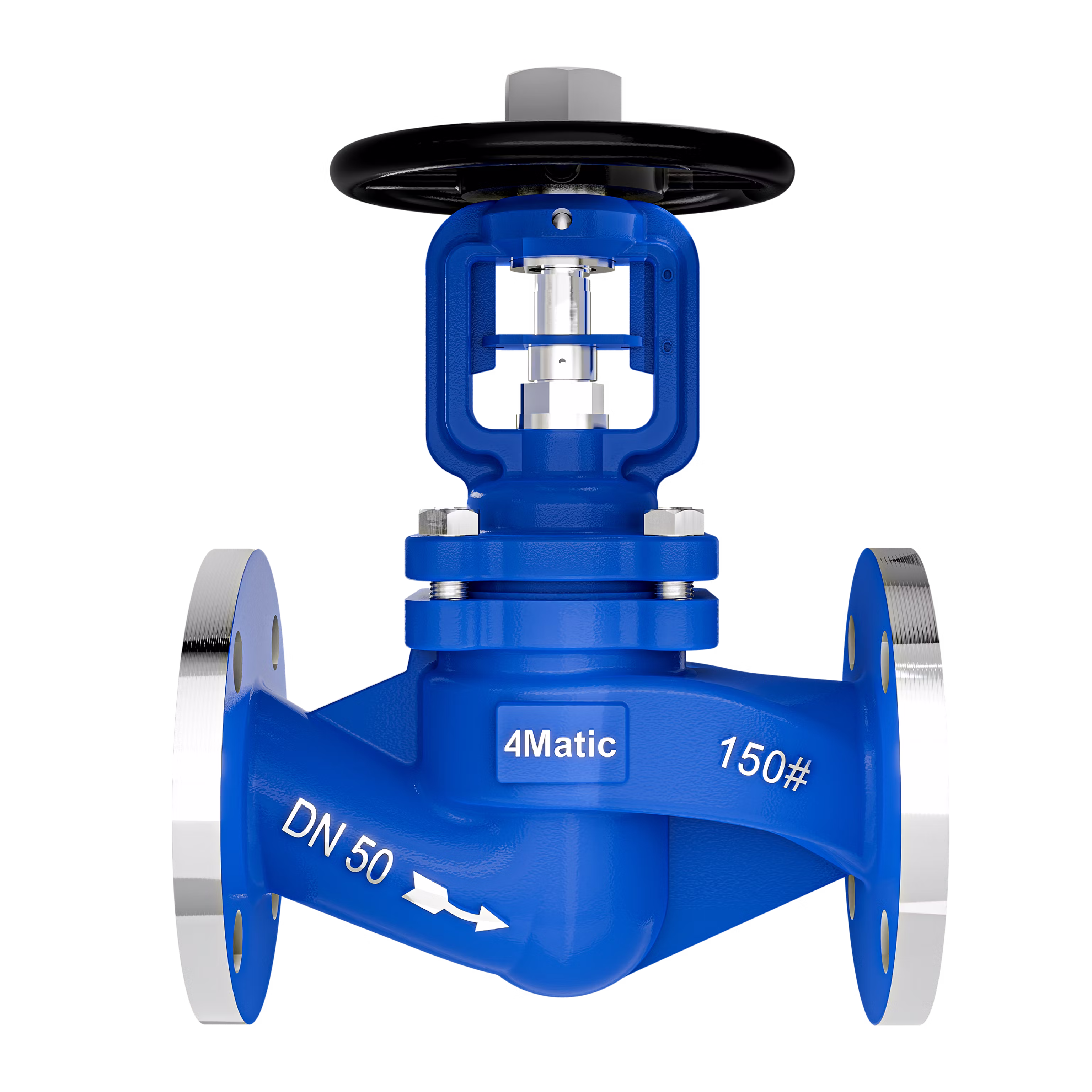

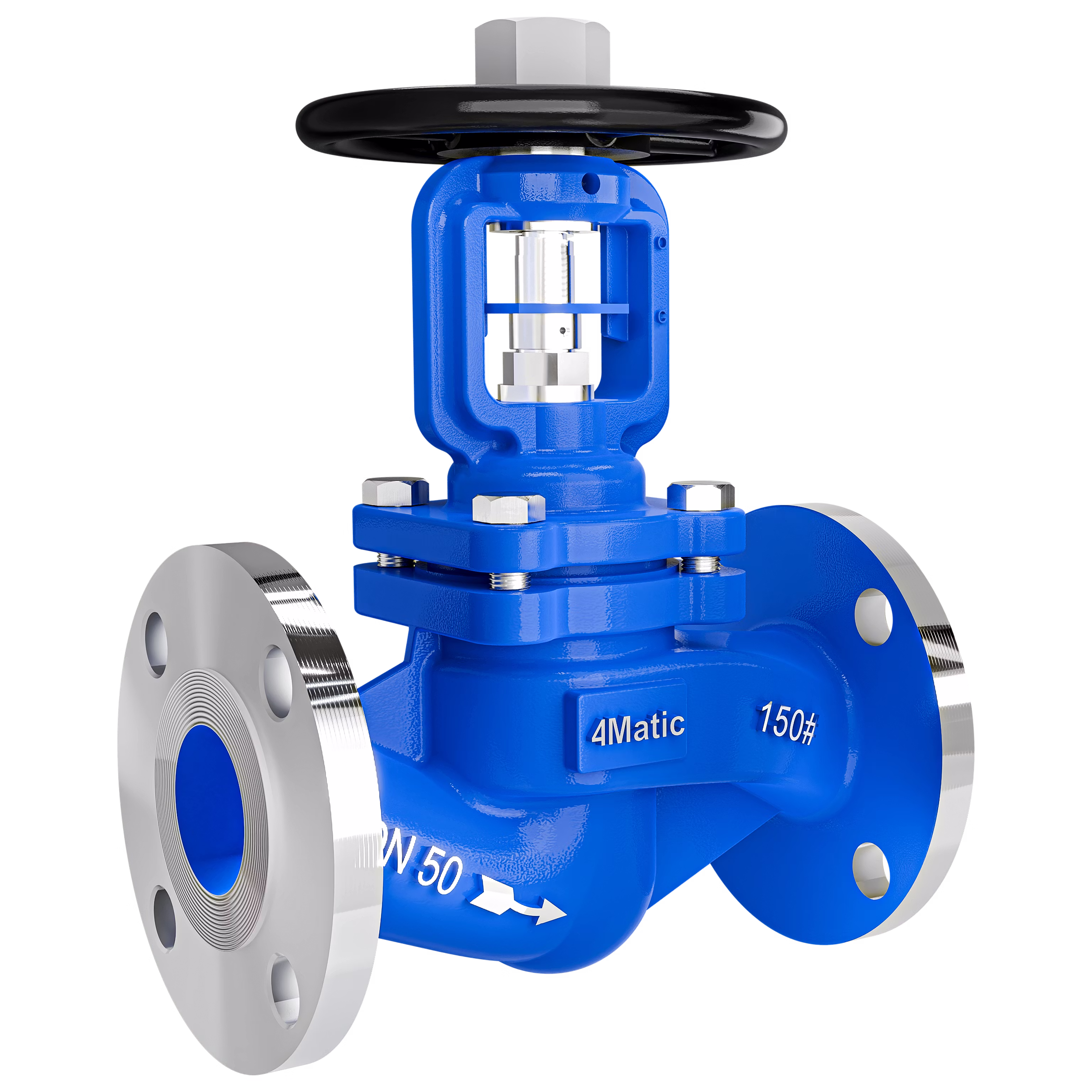

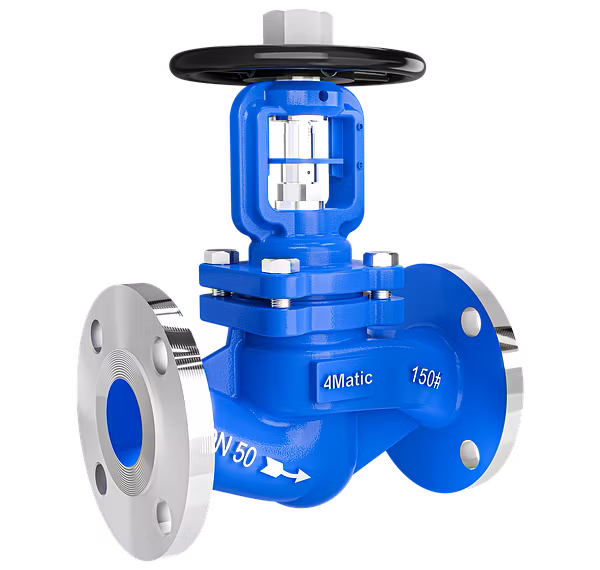

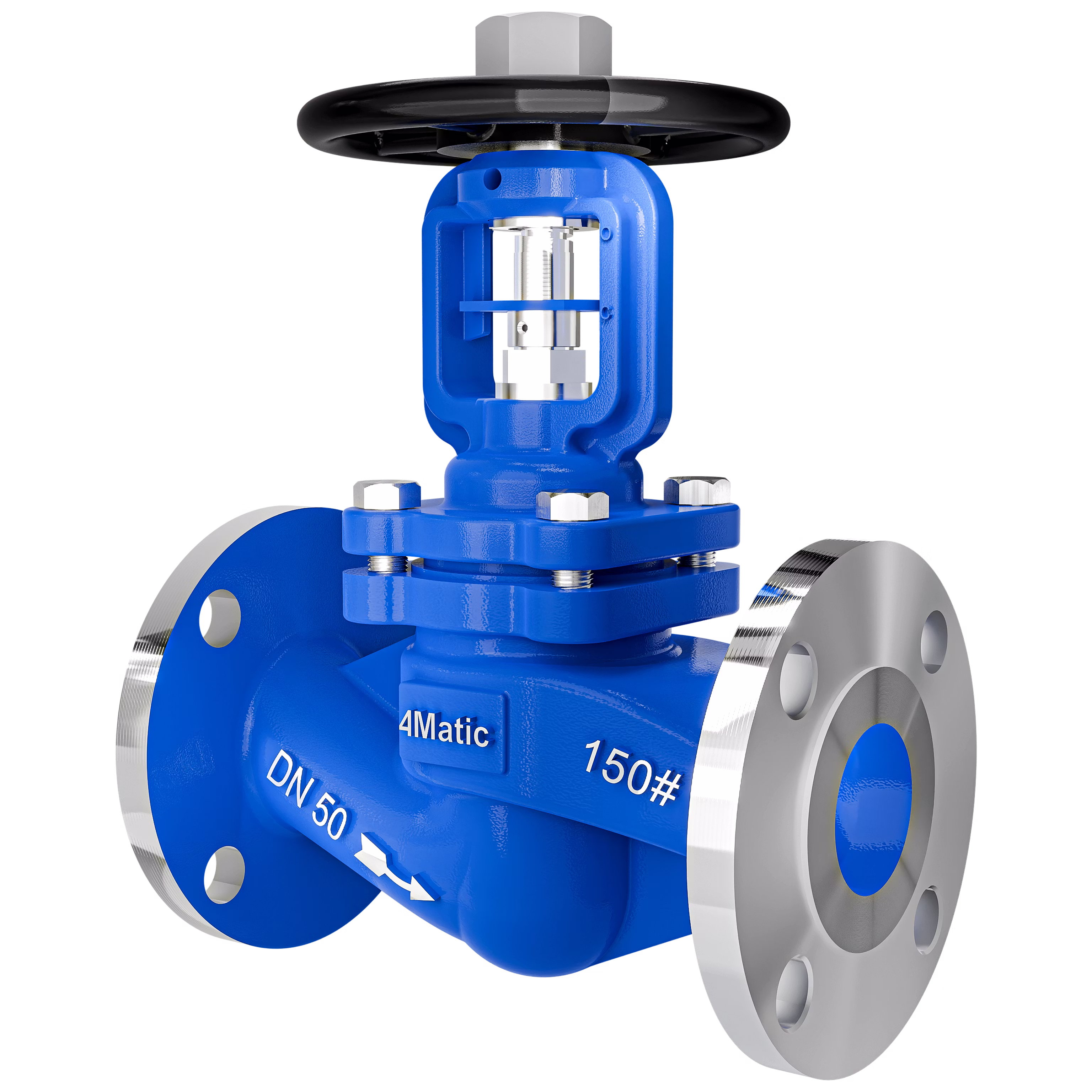

Why Bellow Seal Globe Valves

⇒ Triple sealing design primary seal bellow secondary back seat & tertiary seal gland.
⇒ Conically shaped plug with hard-faced / stellite surface & body seat hard faced / stellited.

1. 1. Conical shape reduces possibility of trapping sediments.
2. 2.Closure in effected against a small “target surface between plug & seat” ensuring low closure torque while preventing leakage.
3. 3.Harder surfaces assure high performance without leakage 3. over long product life.

⇒ Ideally potential & safety for harmful liquids & gases.
⇒ Prevent from global warming & protect environment due to zero leakage.
⇒ Deliver results according to production torgets.
⇒ Structurally sound.
⇒ Zero maintenance.
⇒ Zero fluid loss.
⇒ Leak free performance.
⇒ Extra durability.
⇒ Corrosion & friction resistance.

Specification :

Size : 15MM To 200MM
Body / Bonnet : CI / DI / C.S / A.S / S.S

Pressure Rating : PN 16 / PN 25 / PN 40

Bellow : S.S 316 / 321

End : Flanged / Butt Weld
